CruzPro digitale målere til salgs

Selges billig

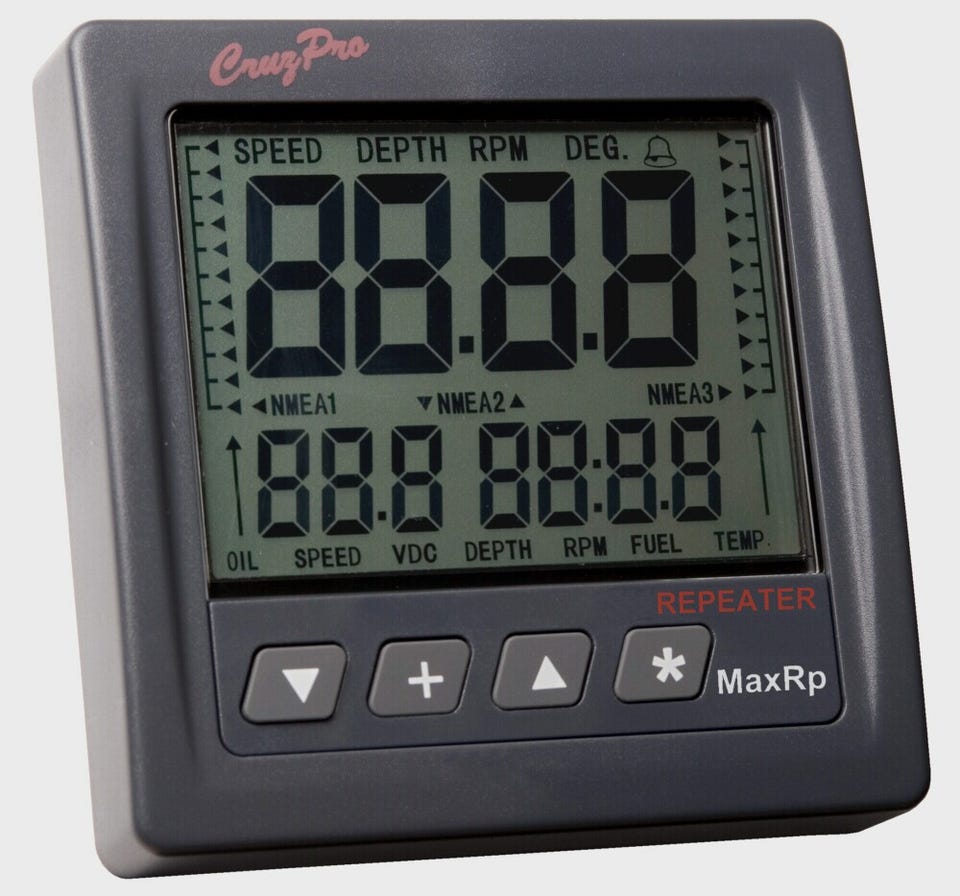

2 stk CruzPro RP110, Intelligent NMEA 0183 Remote Data Repeater for 4 instrumenter. Kan programmeres. NMEA 0183 mottaker/repeater instrument med 3 digitale tallverdie og 2 skalverdier i skjermbildet som viser NMEA 0183 data som dybde, fart, GPS peiling mot Waypoint, etc (over 5800 setninger). 12/24 DVC.

Rp110

Premium User Configurable NMEA 0183 Data Repeater

The MaxRp110 is a programmable NMEA 0183 data repeater with the ability to repeat over 5800 different NMEA 0183 sentences. The MaxRp110 will simultaneously monitor four input channels for two different sentences per channel and simultaneously display NMEA data on three digital displays and two barcharts. You can display data such as Depth, Boat Speed, Sea Water Temperature, GPS Bearing to Waypoint, Distance to Waypoint, Wind Speed, Battery Voltage, Tank Levels, etc. You decide what set of five data to view on each Display Configuration with a maximum of 16 different display configurations. As your data needs change you can quickly select from 16 different display configurations with the push of a button. You can setup some of the Display Configurations for data you need to see while underway and setup other display configurations for use while at anchor or fishing. The idea is that you can easily and quickly configure the MaxRp110 to enable you to see the data you need for each particular situation. Each of the 16 display configurations are highly flexible and any particular set of data can be directed to one of the digital displays and/or one of the two bar graphs.

Unlike some other "dumb" displays, the MaxRp110 does NOT require any external "Black Box", "Brain Box" or "PC" to work. All the electronics to monitor and display the NMEA 0183 data is contained within the compact MaxRp110. Just connect the NMEA 0183 outputs from your instrument to the MaxRp110 and you have a complete set of data in one display head.

Individual high and low alarm values can be set on each of the five sets of displayed data. When data on any of the five displays falls outside the acceptable range the built-in alarm will sound and that display will blink providing you both a visual and audible warning of a problem.

Display configurations are easily edited to show the data that you want to see from a comprehensive list of over 5800 different NMEA 0183 sentences. Changes are automatically saved to a nonvolatile memory. The MaxRp110 contains a built-in NMEA data monitor with 4 input lines that can each search for two distinct NMEA sentences for a total of 8 NMEA data sources. You can even set high and low alarms on the NMEA data and select display damping for 4 channels of the NMEA data.

Six of the sixteen Display Configurations are factory preset to view the most popular data sources but you can easily edit the Display Configurations using your computer. The Windows software provided with the MaxRp110 enables you to easily edit the Display Configurations or create your own from scratch. Data can be uploaded to the MaxRp110 and/or downloaded from the MaxRp110. Display Configurations can be saved to multiple computer files for later recall or editing. The MaxRp110 can be connected to your PC using either a serial port or a USB port (with the serial to USB converter supplied with the MaxRp110).

The Windows software works on PC's running Win98, Win2K, WinNt, WinXP, Vista and Win7 and the full software package is available on this website for download. You can test-drive the software without the MaxRp110 and see how easy it is to use Click here to download the MaxRp110 Windows software.

Five levels of backlighting can be selected for nighttime viewing. The backlights can be turned ON and OFF remotely and all setup constants are saved in a nonvolatile memory.

The MaxRp110 is many instruments at once in a space-saving 110mm format. You simply select the display configuration that is best suited for what you are doing. With simple, quick installation in a standard 2-1/8 (54mm) round hole, the MaxRp110 is perfect for the boat builder or aftermarket replacement. The MaxRp110 works on both 12V and 24V.

Ubrukt, selges kr 900.- pr stk. (Ny pris kr 4250.- pr stk)
