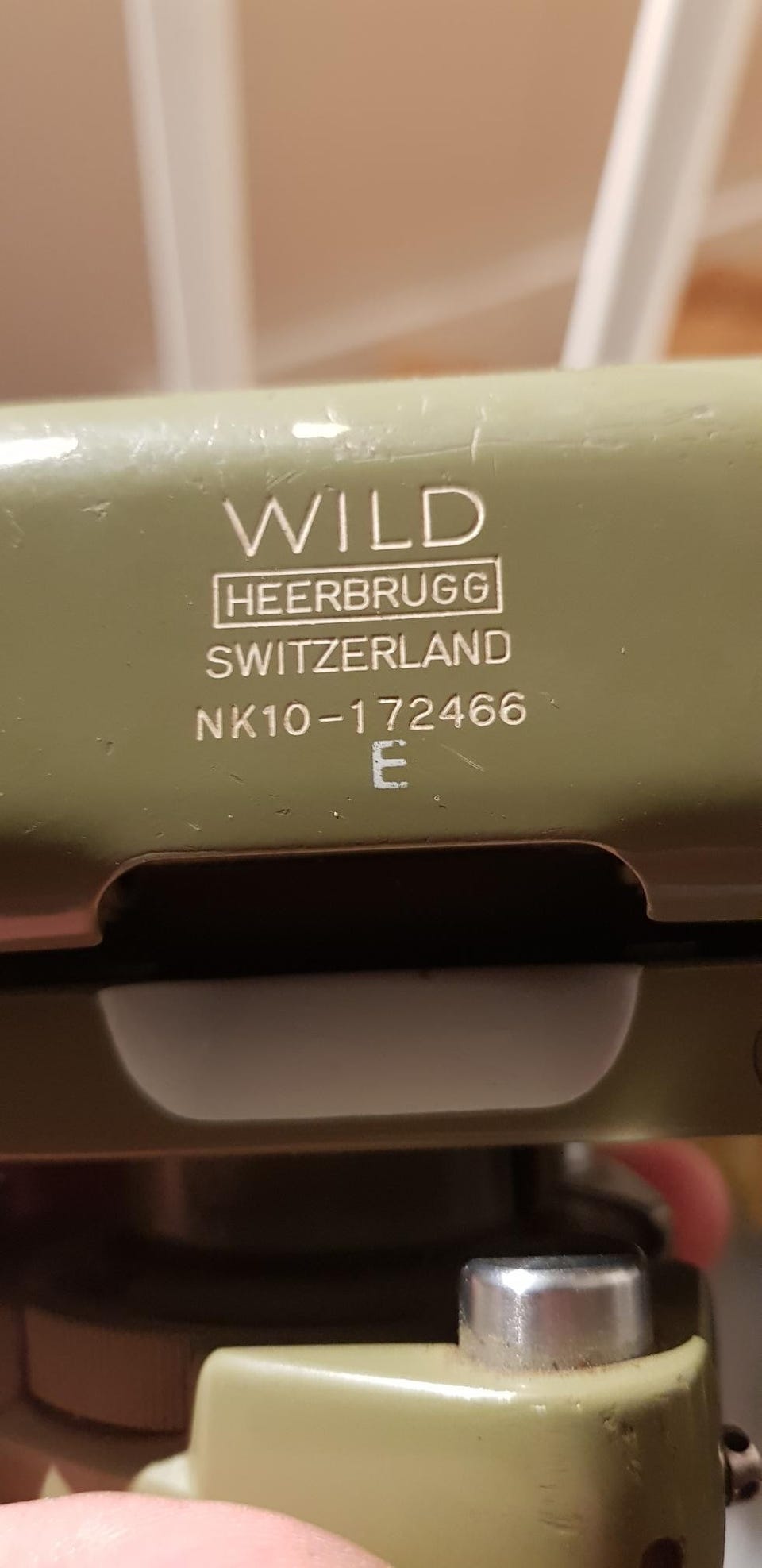

Wild Heerbrugge Switzerland NK10
Trygg handel med Fiks ferdig
Varen blir sendt til deg, og du har 24 timer på deg til å inspisere den før pengene overføres til selger.
Beskrivelse av varen
Tilstand: Brukt
Nivåkikkert fra 1970
The Wild N10 - NK10 was a "Engineer's Compact Level" with tilting screw for easy centering the level bubble and they where produced between 1952 and 1975

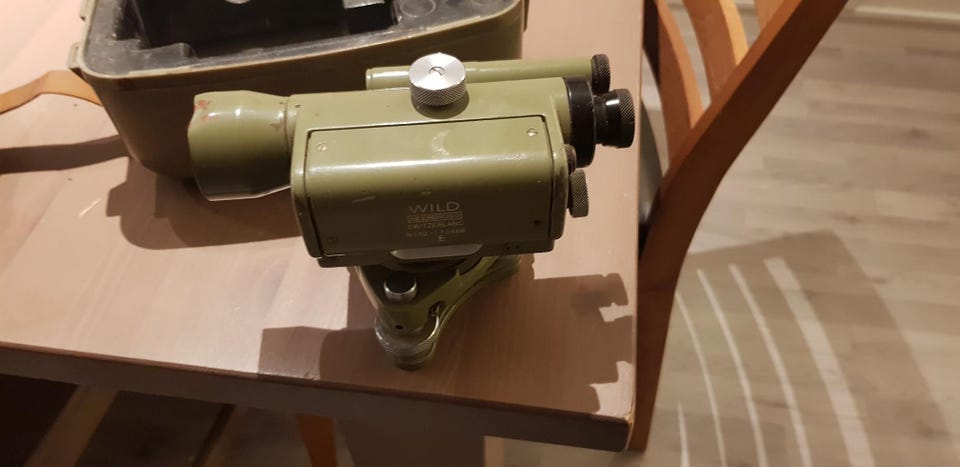

The Wild N10 Small Engineers' Level is an efficient compact and lightweight instrument, giving highly accurate results under all conditions. It is suitable for general leveling, project studies, route surveys, irrigation works, civil and constructional engineering. When fitted with a glass circle (NK10) it can be used in flat terrain for tacheometric work and for measuring or setting-out horizontal angles. The line of sight is leveled with the aid of a tilting screw and the well known Wild "split-bubble" image system. It has an extremely short minimum focusing distance of 1 meter (3.3 feet), which is most useful.
Older N10 / NK10 did had a inverted image, newer one a upright image. Later it was possible to supply this instrument with an upright image telescope (models N10-E and NK10-E) - a feature often appreciated by those who use their level only occasionally or who find it difficult to work with an inverted image. The E-models have a minimum focusing distance of 1.35 meters (4-5 feet).
Du må være logget inn for å se brukerprofiler og sende meldinger.
Logg innAnnonsens metadata
Sist endret: 6.8.2024, 20:35 ・ FINN-kode: 164840235
