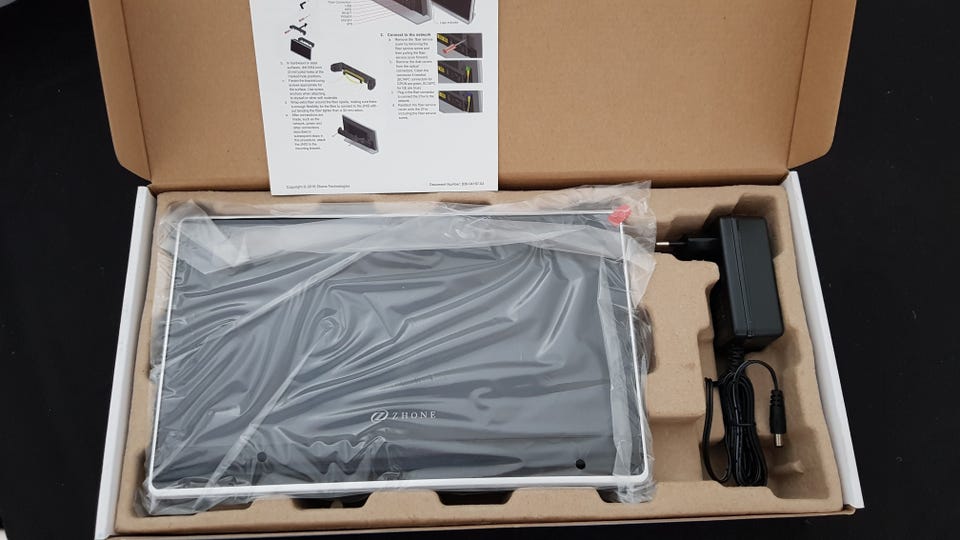

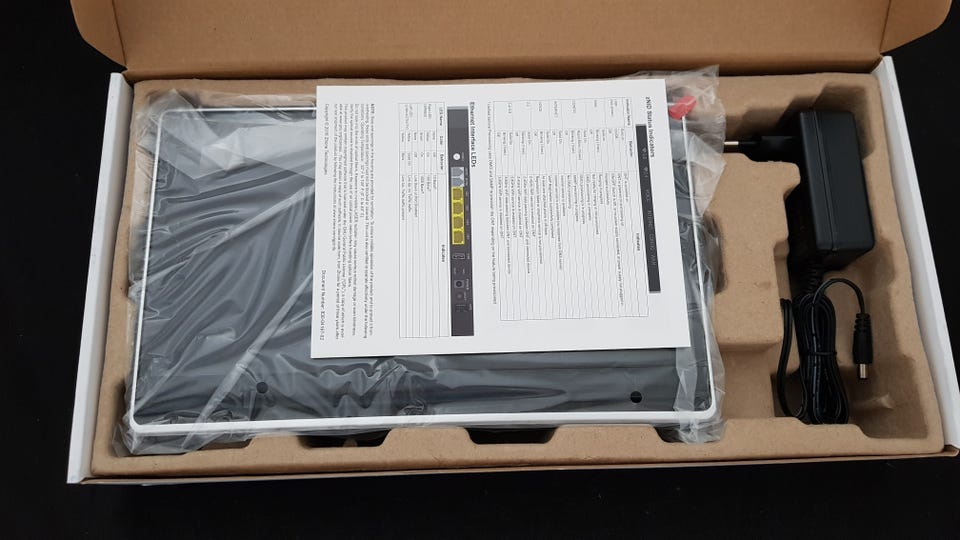

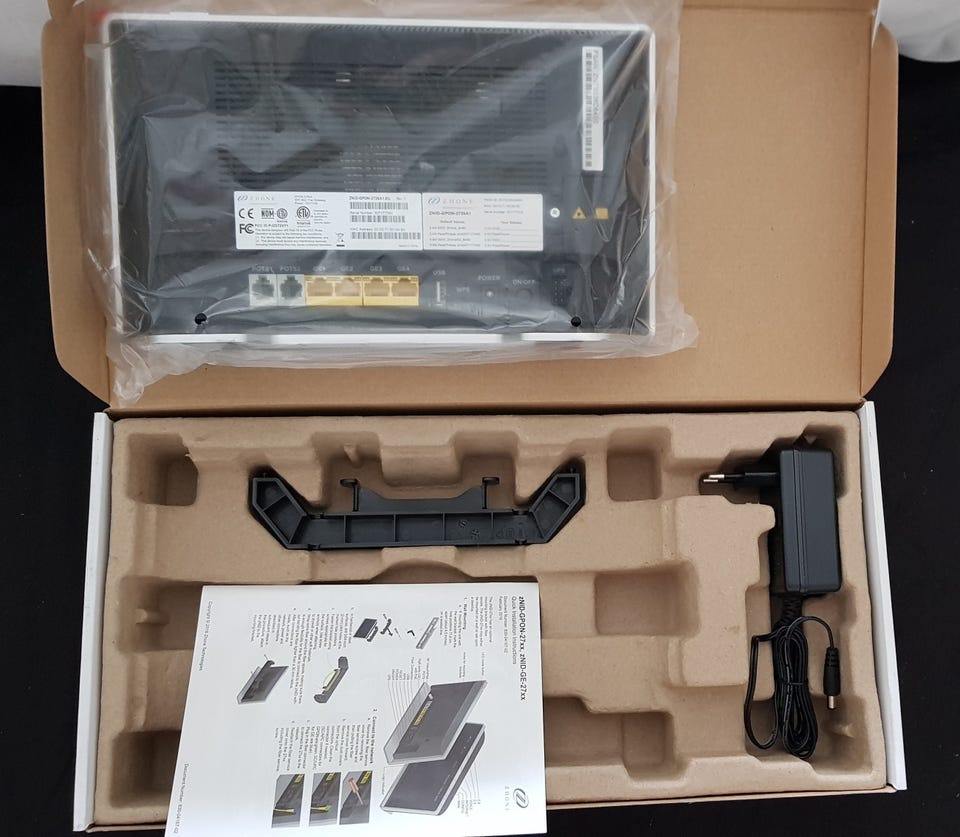

Helt ny ZHONE ZNID-GPON-2726A1 Fibermodem

Helt ny ZHONE ZNID-GPON-2726A1 fibermodem vurderes solgt.

Pris på nett ca. 6000,-

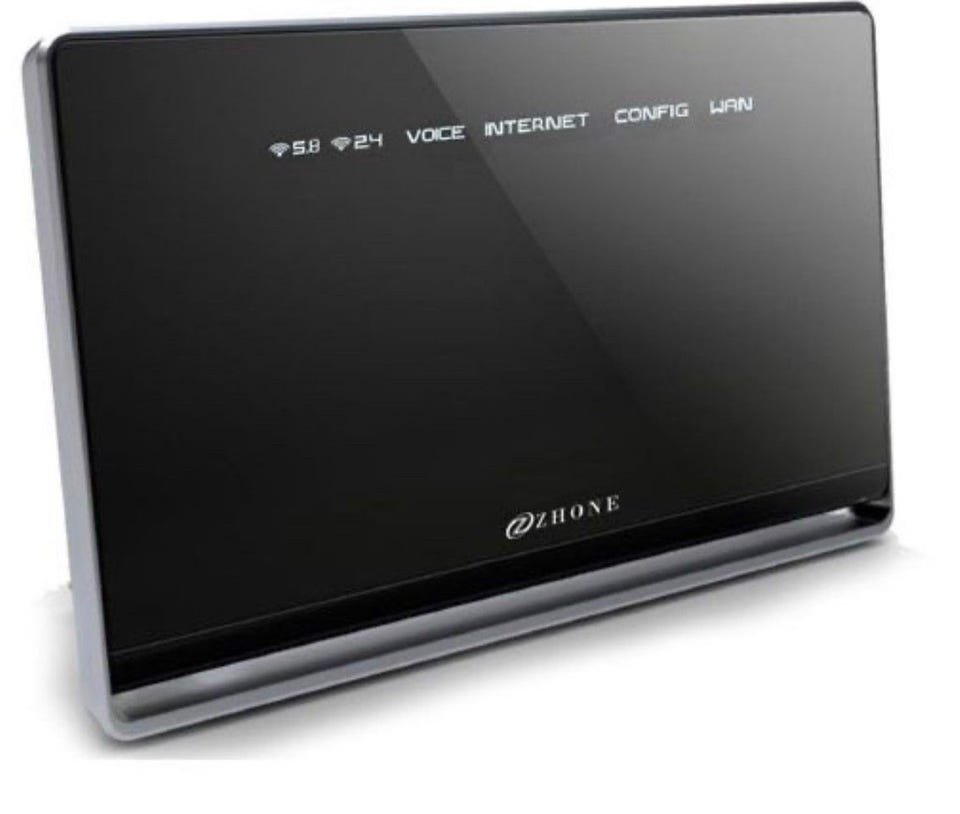

Dasan Zhone GPON zNID 2700 Series Innendørs ONT m / Dual-Band 802.11ac WiFi.

Dual-band 802.11ac WiFi-funksjonalitet kombinerer med en stilig bordplate-finish for å bringe neste generasjons tilkobling og beste ytelse til Fiber-to-the-Home / Hotel-distribusjoner.

Fem interne høyfrekvente antenner gjør det mulig for dual-band (2,4 og 5.8 GHz) WiFi-radio å koble flere brukere og enheter samtidig, inkludert eldre 802.11b / g / n-enheter.

2700-serien GPON ONT er ideell for å tilby WiFi-dekning i store hjem, hjemmekinoanlegg og hotellgjeste- og konferanserom som vender mot en rekke bærbare datamaskiner og mobile enheter.

Hentet fra nett:

Product Features

• Standard ITU G.984 GPON

• Triple-Play QoS

• VoIP with Class 5 Features

• 802.11b/g/n/ac WiFi

• Lightning-fast WiFi Speeds

• Optional RF Video

Product Specifications

• Dimensions

Height: 6.7 in (170 mm)

Width: 11.0 in (280 mm)

Thickness: 1.4 in (35 mm)

Desktop Footprint Depth:

2.4 in (60 mm)

• Weight: 40oz (1.1 kg)

• 12VDC, 3.0A max

• 12VDC Power Supply: 100-240VAC, 50/60Hz, 36W out

• Round barrel-type connector for power input

• 2x4 Molex-type connector for optional BBU power input with alarm reporting

• Network Interface (GPON Uplink) Features

SC/APC connector

Full ITU-T G.984 compliance

Class B+ optics

G.985 wavelength blocking filter

GPON Type B redundancy support

• GPON Tx:

Upstream data rate 1.25 Gbps

1310 nm optics

DFB Transmitter

Launch Power: +0.5 to +5 dBm

• GPON Rx:

Downstream data rate 1.25 Gbps

1490 nm optics

APD/TIA receiver

Receiver Sensitivity: -28 dBm

Input power overload: -8dBm

Input power damage: +5dBm

• RF Video Rx

1550nm optics

Usable input power range: -8dBm to +2 dBm

Input power overload: +2 dBm

Input damage level: +5dBm

• LAN Port Features

Four 10/100/1000Base-T LAN ports

RJ-45 connectors

Auto-MDI-X crossover control

Auto-Speed or manual selection

• USB Ports

One USB 2.0 port

3G dongle support for uplink fallback

• WiFi - 802.11b/g/n:

2.4 GHz band

2x2 MIMO

Two +5 dBi internal antennas

Channel width: 20 MHz, 40 MHz

Max WiFi Connect (Phy) Rates: 54 Mbps (g); 270 Mbps (n)

• WiFi - 802.11ac:

5 GHz band

3x3 MIMO

Three +3 dBi internal antennas

Channel width: 20 MHz, 40 MHz, 80 MHz

• RF Video Output Port

1 x F-Type connector

RF output impedance: 75 ohms

RF passband: 47 to 1000 MHz

RF output level: 17 dBmv minimum (550 MHz, 3.5% OMI per channel)

• SSIDs: Up to 8

Max number of subscribers: 64

Max Tx power: 300 mW (US models)

Max Tx power: 100-200 mW (other models)

Authentication Security: WEP, WPA-PSK, WPA2, WPA2-PSK

Encryption: WEP (64-bit, 128-bit), AES, TKIP+AES

WPS modes: push-button, API PIN, STA PIN

RADIUS Server support

MAC address filtering

Access Point and Wireless Bridge modes

• Management

OMCI

Web UI

CLI

SNMP

TR-069

USP (Unified Service Provisioning)

ITU-T G.984 compliant

IEEE 802.3 Ethernet

IEEE 802.1p/q VLANs

IEEE 802.3u Fast Ethernet

IEEE 802.3ab 1000Base-T

Two FXS ports

RJ-11 connectors

5 REN per line

Battery voltage: -48VDC

Max loop current: 40mA

Ringing voltage: 48Vrms @ 20/25 Hz

SIP (RFC 3261)

SIP PLAR

MGCP

Codec: G.711 (u-law and A-law), G.729B, G726

DTMF dialing

Echo cancellation

Voice Activity Detection and Comfort Noise Insertion

Caller ID, Call Waiting, Call Forwarding, Call Transfer, Three Way Calling, Distinctive Ringing

G.711 fallback for FAX

T.38 FAX support

DHCP client or static IP configuration

• Temperature

Operating Temperature: 0C to +40C

Storage Temperature: -20C to +85C

Relative Humidity: 0 to 95%, non-condensing

• GPON:

Fully ITU-T G.984 compliant framing

Dying Gasp support

32 T-CONTs per device

32 GEM Ports per device

Activation with automatic discovered S/N and password in conformance with ITU-T G.984.3

AES-128 Decryption with key generation and switching

FEC (Forward Error Correction)

802.1p mapper service profile on U/S

Support for Multicast GEM Port

• QOS:

Ethernet bridging/switching per IEEE 802.1d/802.1q

Traffic management (priority queuing)

QoS with support for IEEE 802.1p + DSCP VLANs

• VLANs:

Per port IEEE 802.1Q VLAN ID processing

All VLAN IDs supported

VLAN tagging/untagging

VLAN Stacking (QinQ)

VLAN Switching

• IPTV:

IGMP v3 Snooping

VLAN support

• Layer 2:

802.3n flow control

Automatic MAC learning and aging

Unlimited # of MAC addresses for OMCI-configured flows

Support for up to 4,096 MAC addresses for RG traffic flows

Broadcast storm control

LLDP-MED

• IP Routing and Firewall:

PPPoE

NAT/NAPT

Port forwarding

DHCP Server

DNS Server

UPnP

• IPv6:

IPv4 and IPv6 Dual-Stack-lite

Bridged Mode (transparent pass-thru of IPv6 frames)

IPv6 Support for BRouted, and PPPoE-Bridged VLANs

DHCPv6 client and server

Router Advertisement on LAN- side interfaces of BRouted and PPPoE-Bridged VLANs

SLAAC for automatic acquisition of WAN-side IPv6 address and Gateway

CLI and HTTP management via IPv6 address

TR-069 management via IPv6 address

Product Includes

(1) ZNID-GPON-2726A1-NA

(1) Installation Guide
