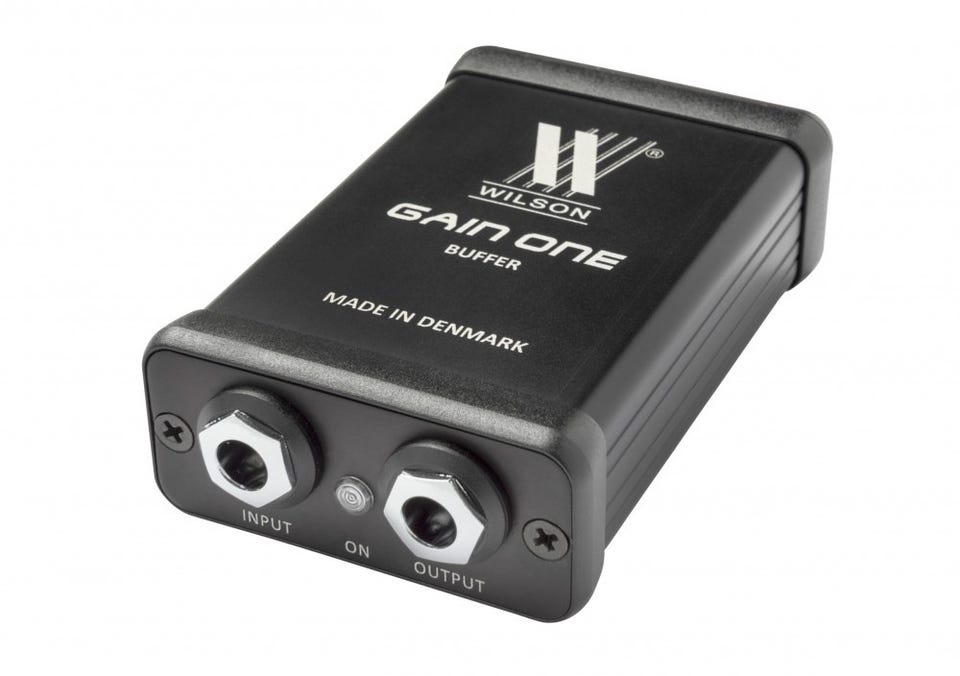

Wilson GAIN ONE buffer 10 megaohm (complete set)

Maksimer lyden av din piezo/kontaktmikrofon med høykvalitets-buffer!

The GAIN ONE is an audio buffer for music instrument pickup´s. It is a kind of preamp, but without any actual amplification. It provides high impedance input for the pickup and low impedance output able to drive long audio cables.

Set contents:

1 original WILSON GAIN ONE buffer
1 battery charger 12VDC (usable worldwide 100-240V AC, 50~60Hz)

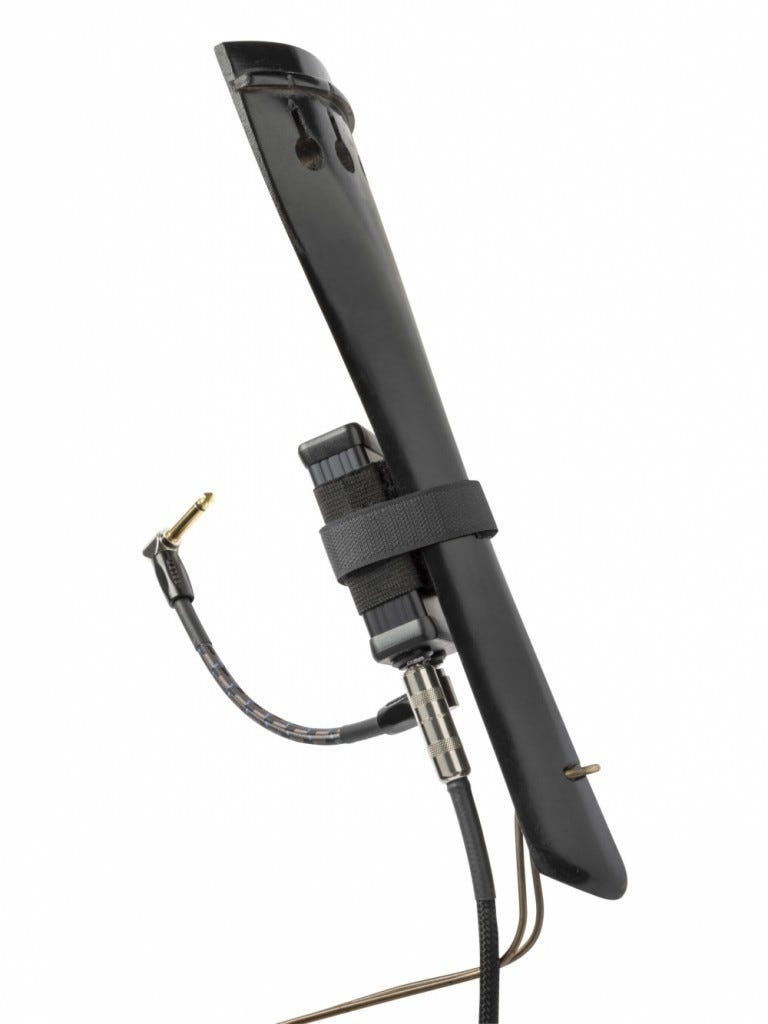

Fastener (Velcro) for fixing

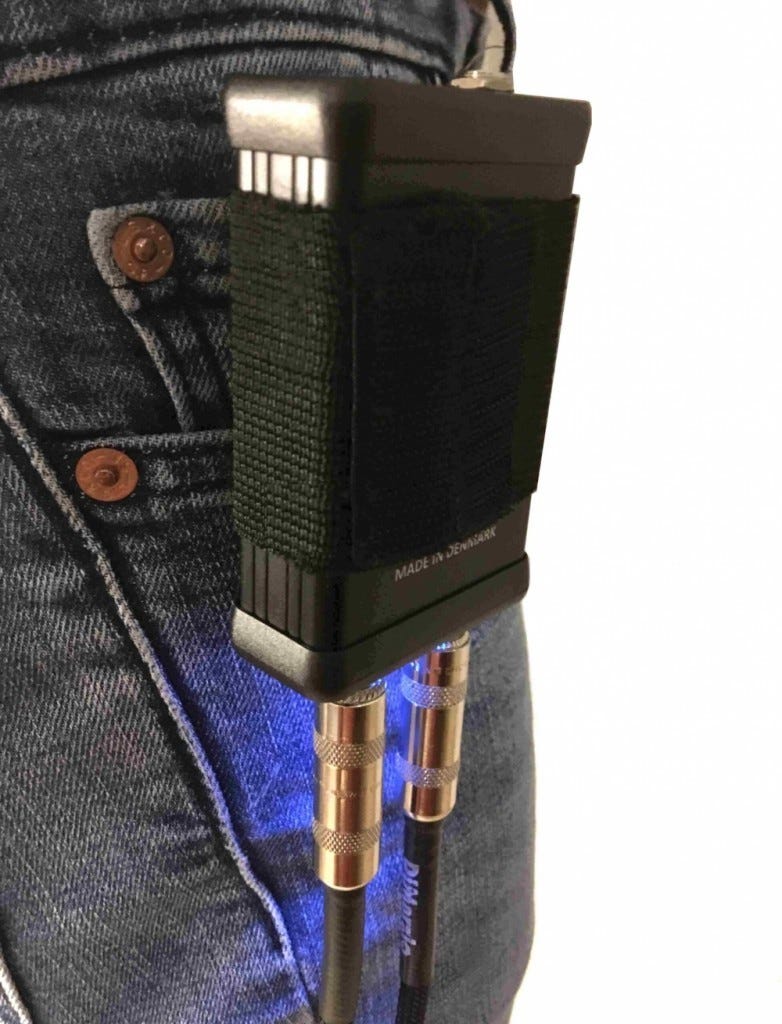

Belt clip
Technical specifications:
Switching on/off takes place via inserting both connectors
Battery life: Stand-by approx. 6 months
Operation approx. 2 days
Expected life of battry is 10 years (exchangeable)
Cabinet material: Aluminium
Physical case dimensions: 85 x 54 x 23 mm
Weight: 122 g
Audio data:
Gain 0 dB
Frequency range 20 Hz – 20 kHz – 3dB
Input impedance approx. 10M?
Output impedance approx. 470?
9V rechargeable lithium battery
Operation of the unit:
Connected between the pickup and an amplifier, wireless system, mixer, preamp or pedal.
Charge until it is fully charged. (charging time approx. 6-7 hours)
Green status indicator when charged.
The buffer is not designed for use during charging
Switching on/off takes place via inserting both connectors (a blue LED indicator lights up).
Additional accessories available for purchase:
Car cable charger 12VDC
15 cm patch cable
