Tekbox TBMA1 bikonisk antenne 30 MHz 1000 MHz

The Tekbox TBMA1 is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is ideal for radiated noise EMC pre-compliance testing and for generating defined field strength.

It is characterized from 30 MHz to 1 GHz and has a directional pattern similar to a dipole.

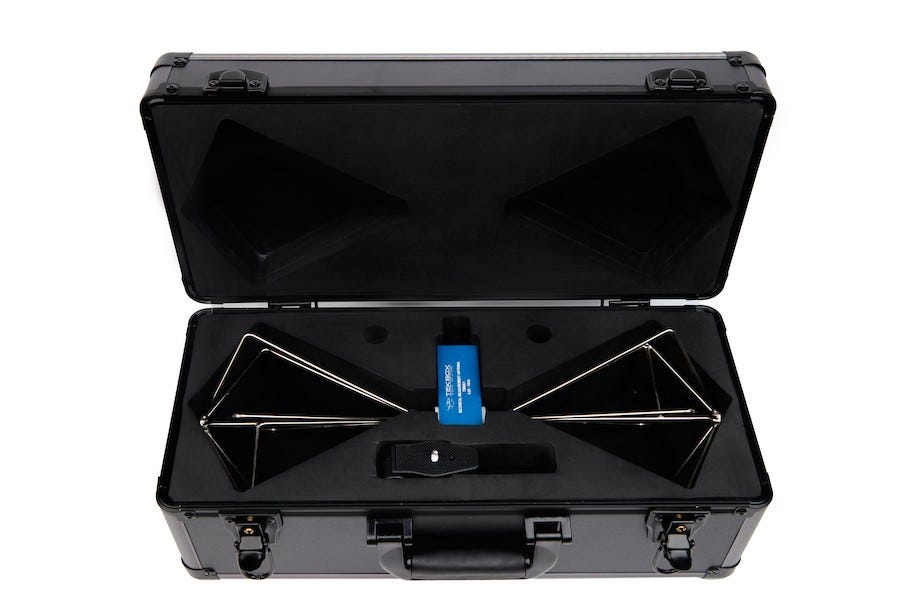

The TBMA1 comes in a solid case, together with a “pistol-grip” tripod. A standard ¼” thread makes it easy to connect it to most standard tripods.

The elements are corrosion resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore, they are protected against build-up of static charge.

Type: passive biconical
Frequency range: 30 MHz – 1000MHz
Nominal impedance: 50 ?
Maximum continuous input RF power: 2 W
Connector: N type female
Isotropic gain: -42.15 1.78 dBi
Antenna factor: 16.30 41.91 dB/m
Voltage Standing Wave Ratio (VSWR) Max < 2.8
Length: 430 mm (17 “) tip-to-tip
Diameter: 160 mm (6.3 “)
Depth: 163 mm (6.4 “) including housing
Weight: 0.46 kg (1.01 lbs)
Tripod Adapter Thread Size: ¼”
