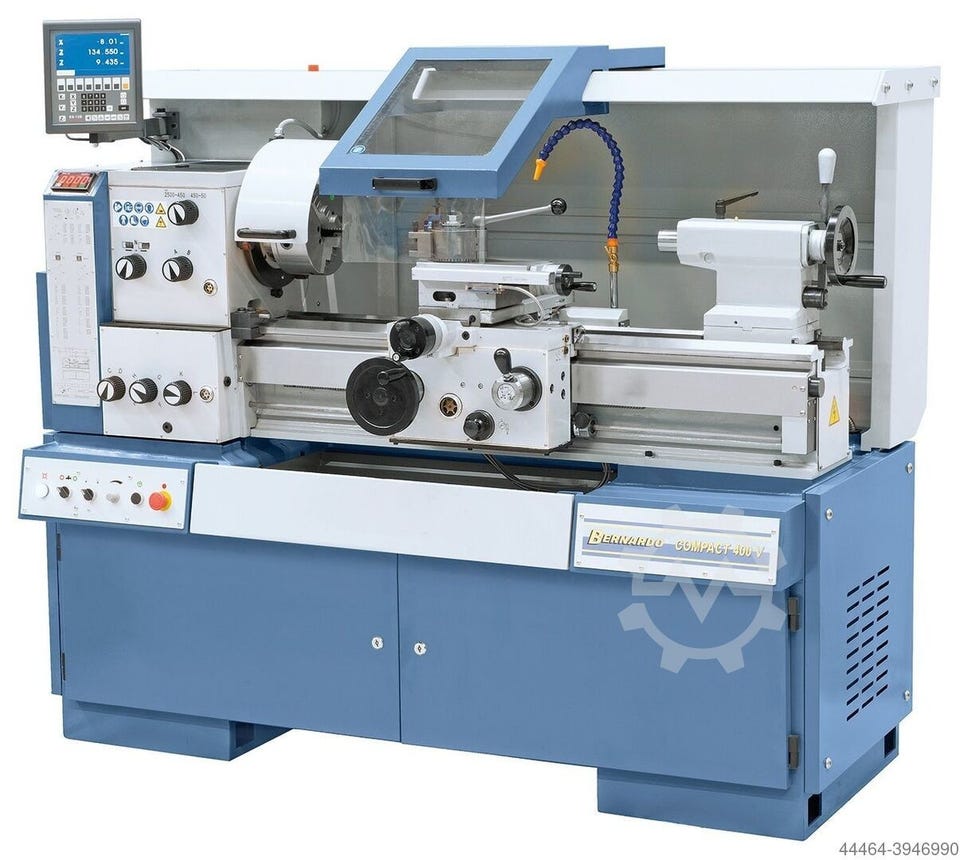

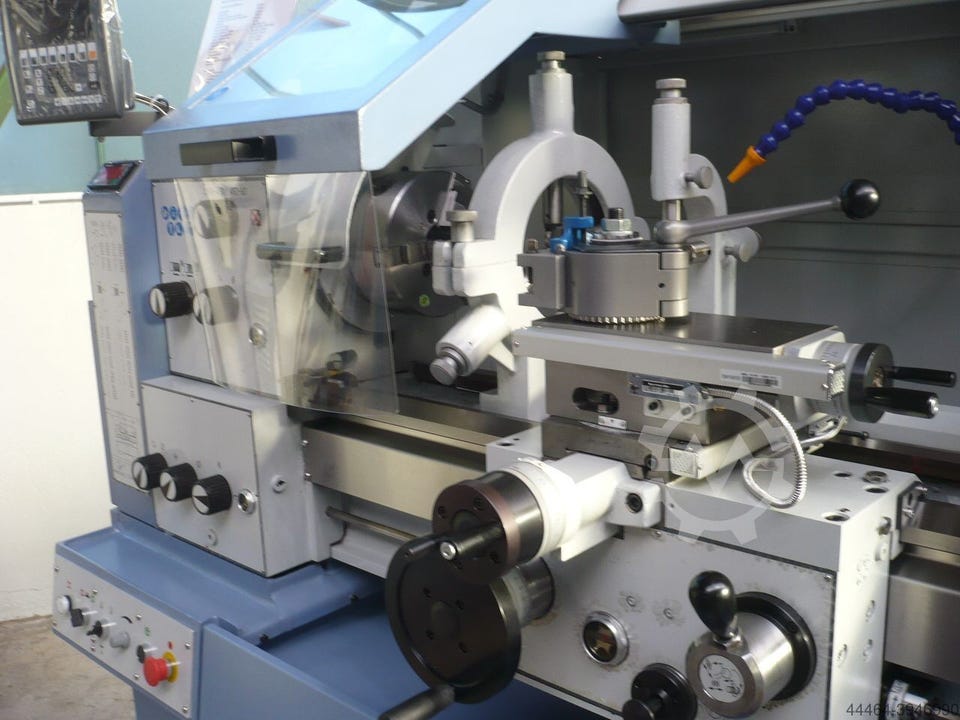

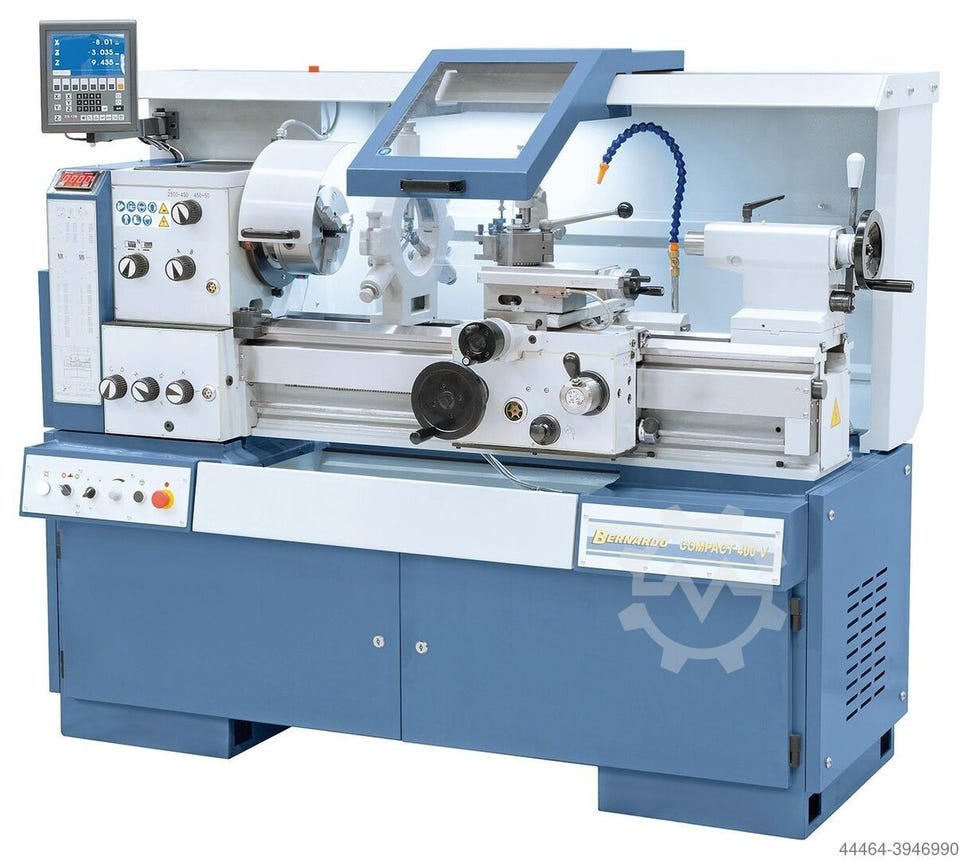

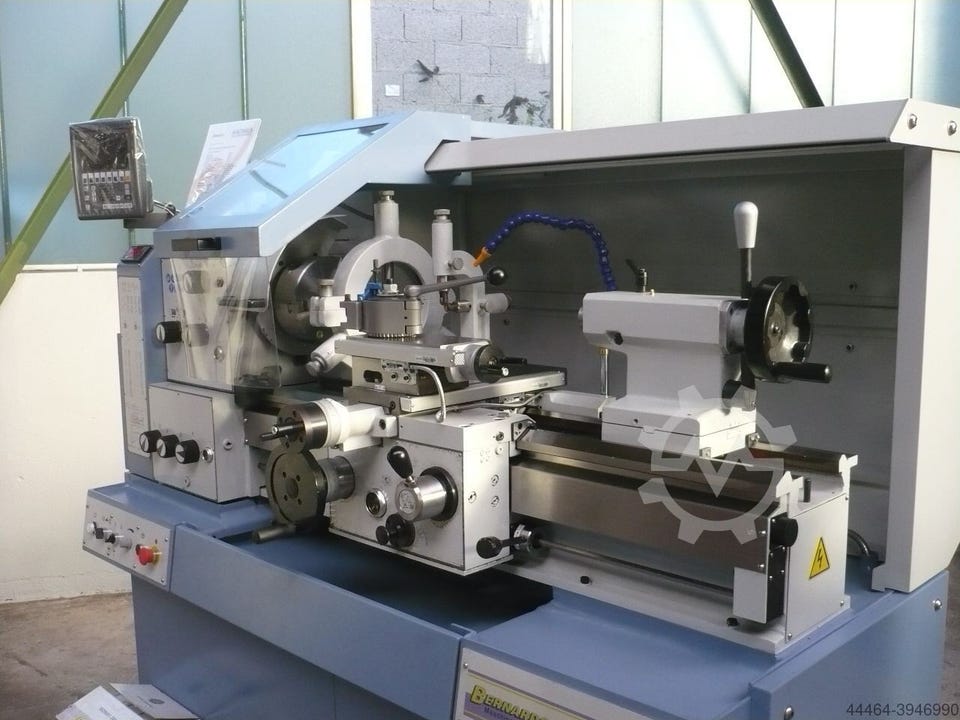

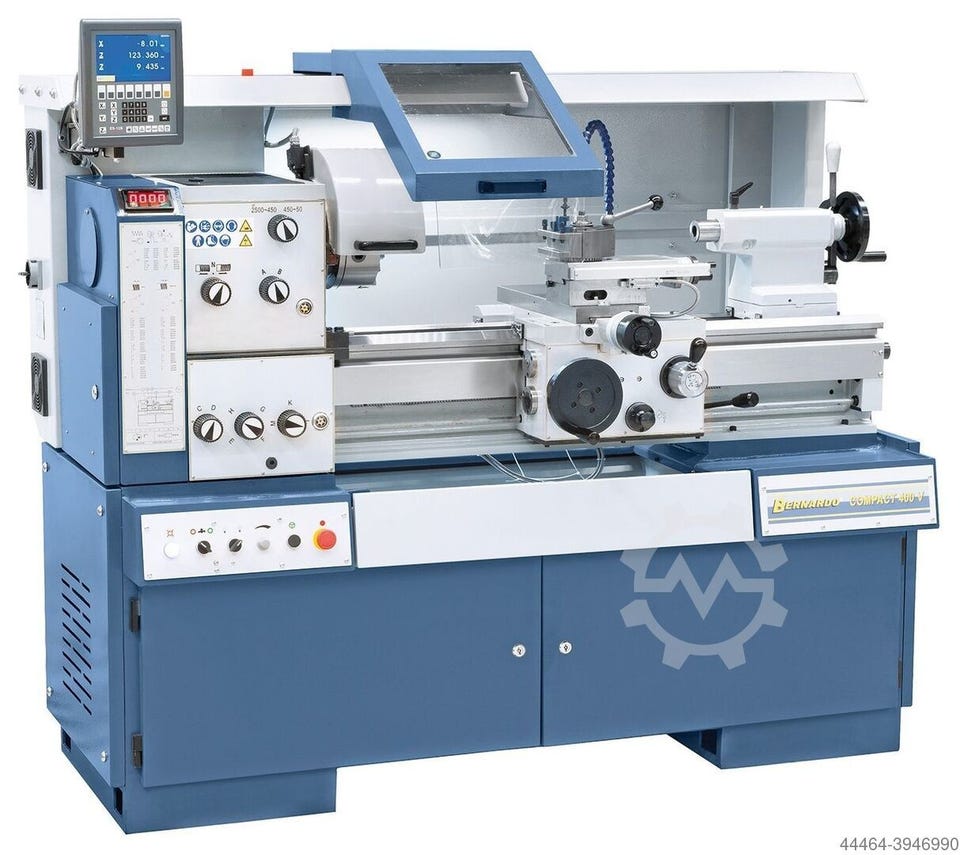

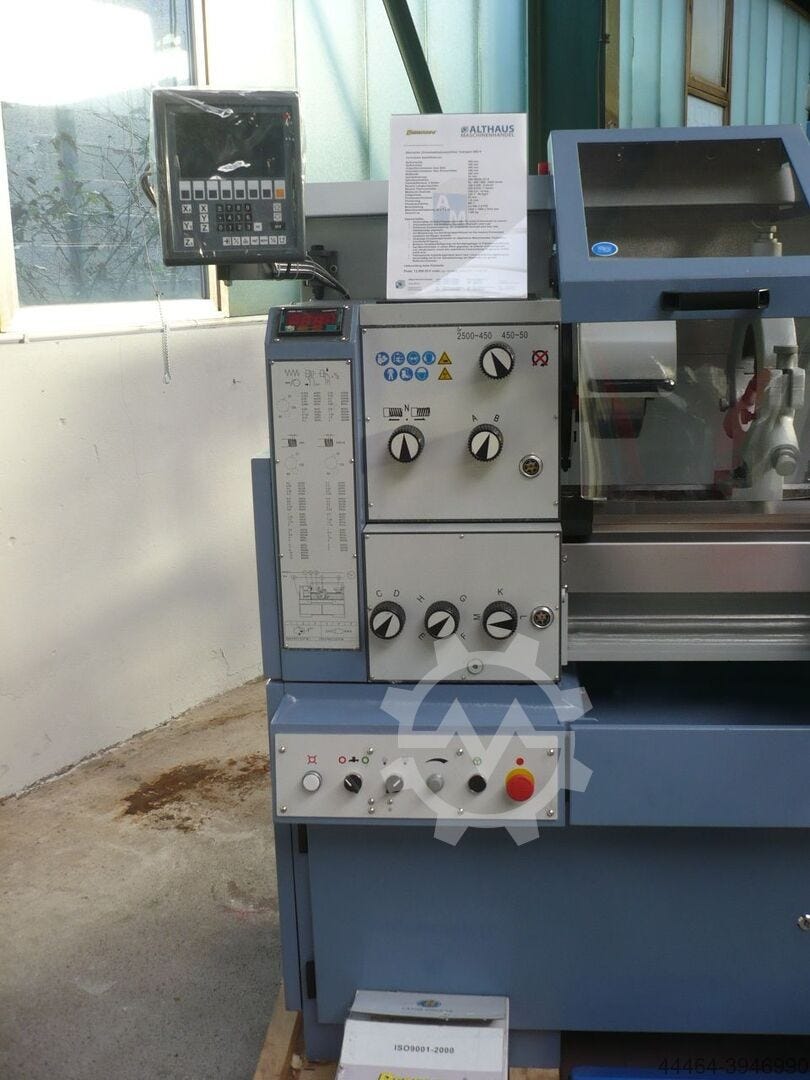

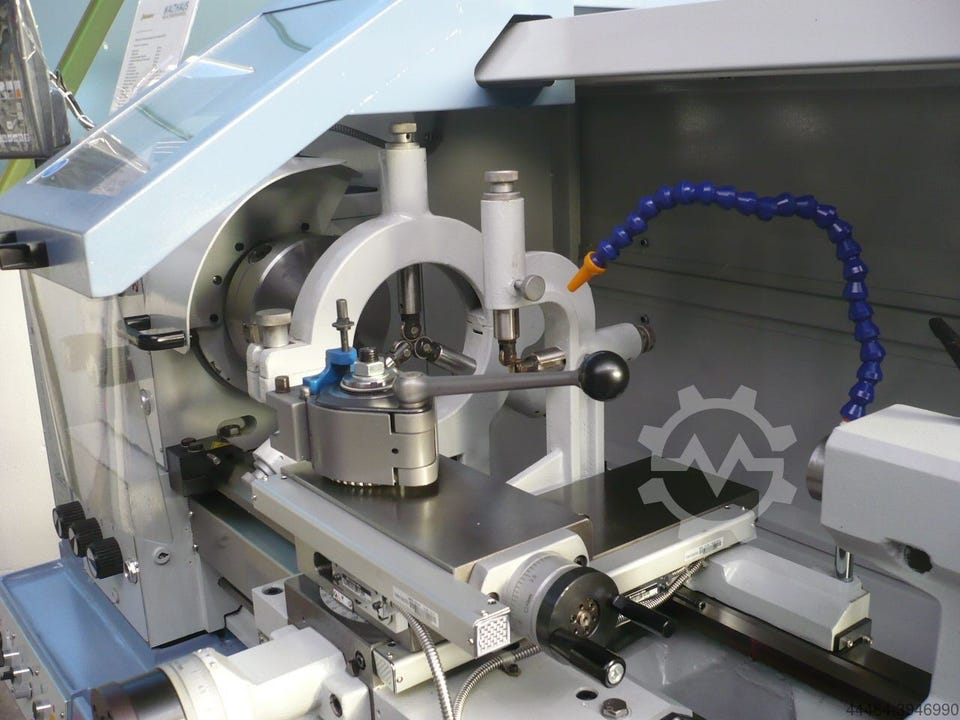

Bernardo universal lathe Compact 400 V

Technical specifications

Top width 850 mm

Tip height 200 mm

Swing over bed 400 mm

Swing over cross slide 245 mm

Bed width 260 mm

Spindle hole 52 mm

Spindle mount DIN 55029, D1-5

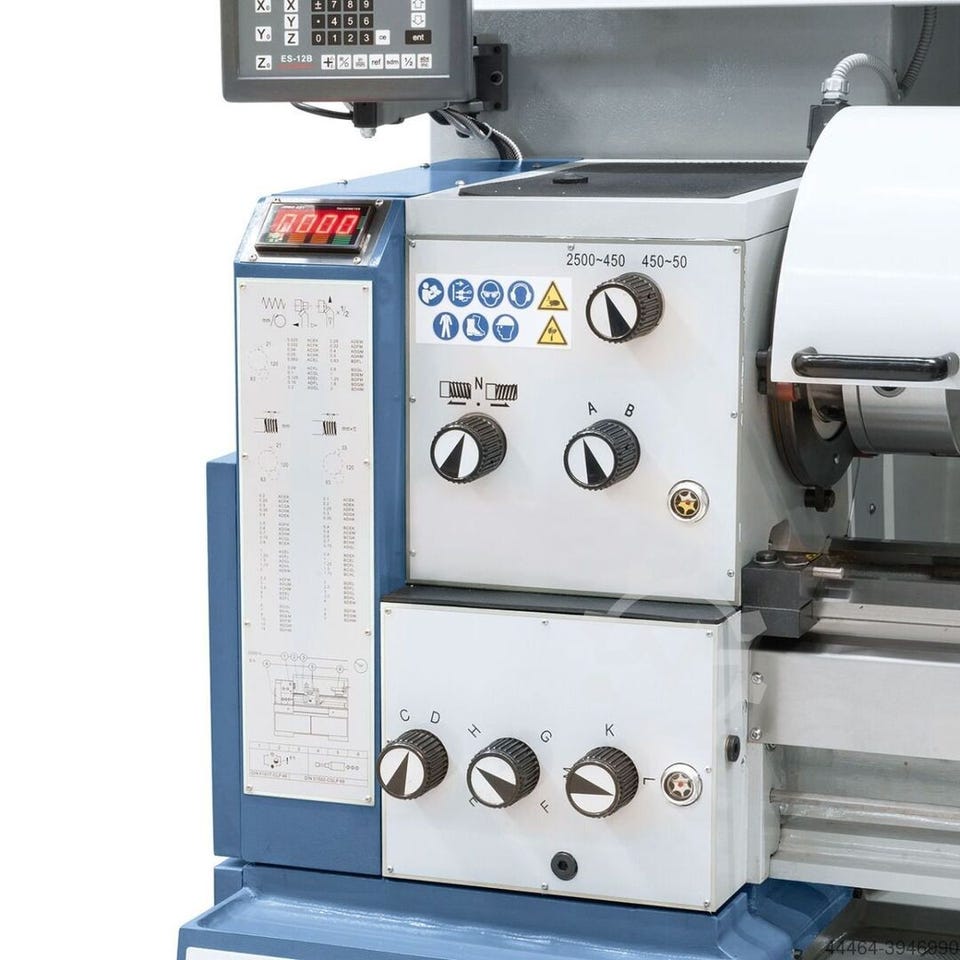

Speed range, 2 levels 50-450 / 450-2500 RPM

Range of longitudinal feeds (20) 0.025 - 2 mm / Rev

Bd3xgzvjho

Area plan feeds (20) 0.012 1 mm / Rev

Metric threads (26) 0,2-14 mm

Inch thread (42) 1-80 Gg/1 "

Quill diameter 50 mm

Tailstock runner way 120 mm

Spindle mount MT 3

Power 5,5 kW (7,5 HP)

Machine dimensions (W x D x H) 1900 x 1000 x 1610 mm

Weight approx. 1185 kg

Properties

Standard with Delta frequency inverters for high torque in the lower revs and nearly constant speed under load

Infinitely variable speed control, the set speed can be read off on a digital display

To minimize vibration influences the massive Prism bed is equipped in addition with ribs

Versatile applications in general engineering, production, item creation...

Modern main spindle bearings with angular contact ball bearings in precision design

The machine bed, cast in one piece, is extremely rigid and vibration, which satisfies an essential prerequisite for precise turning

Space-saving installation possibility through to the front pull-out chip tray

Standard with 52 mm spindle bore for manipulating large wave

210 000,- eks moms & frakt
