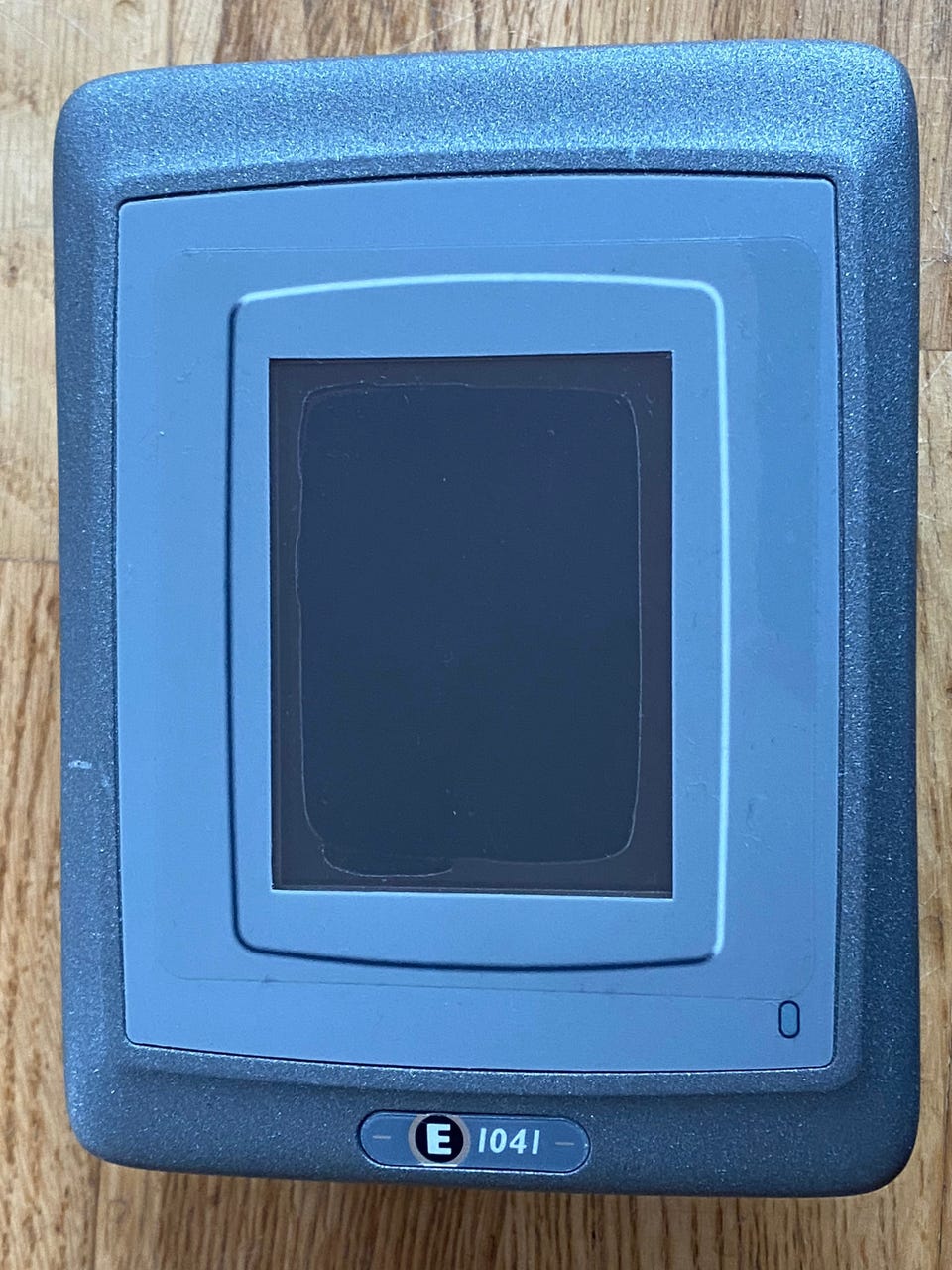

Beijer E1041 3.5'' graphic touch HMI

Beijer E1041 3.5'' graphic touch HMI

320 x 240 pixels

TFT display

3.5" TFT-LCD touch screen

Project storage 12 MB

Operating temperature 0 to +50 °C

Ethernet and serial

Touch display

General description:

Part number 603221120

Life cycle status Limited

Mechanical size 155.8 x 119 x 62.8 mm

Number of touches 1 million finger touch operations

Touch type Resistive type

Cut-out size 139 x 105 mm

Weight 0.6 kg

Housing material Powder-coated aluminium, grey

Input voltage 20 - 30 V DC

Power consumption (max) 3.6 W

Input fuse Internal DC fuse, 2.0 AT

Size diagonal 3.5 inch

Resolution 320 x 240 pixels

Backlight CCFL with dimming

Backlight life time 58,000 hrs

Backlight brightness 350 cd/m2

Display type TFT CCFL

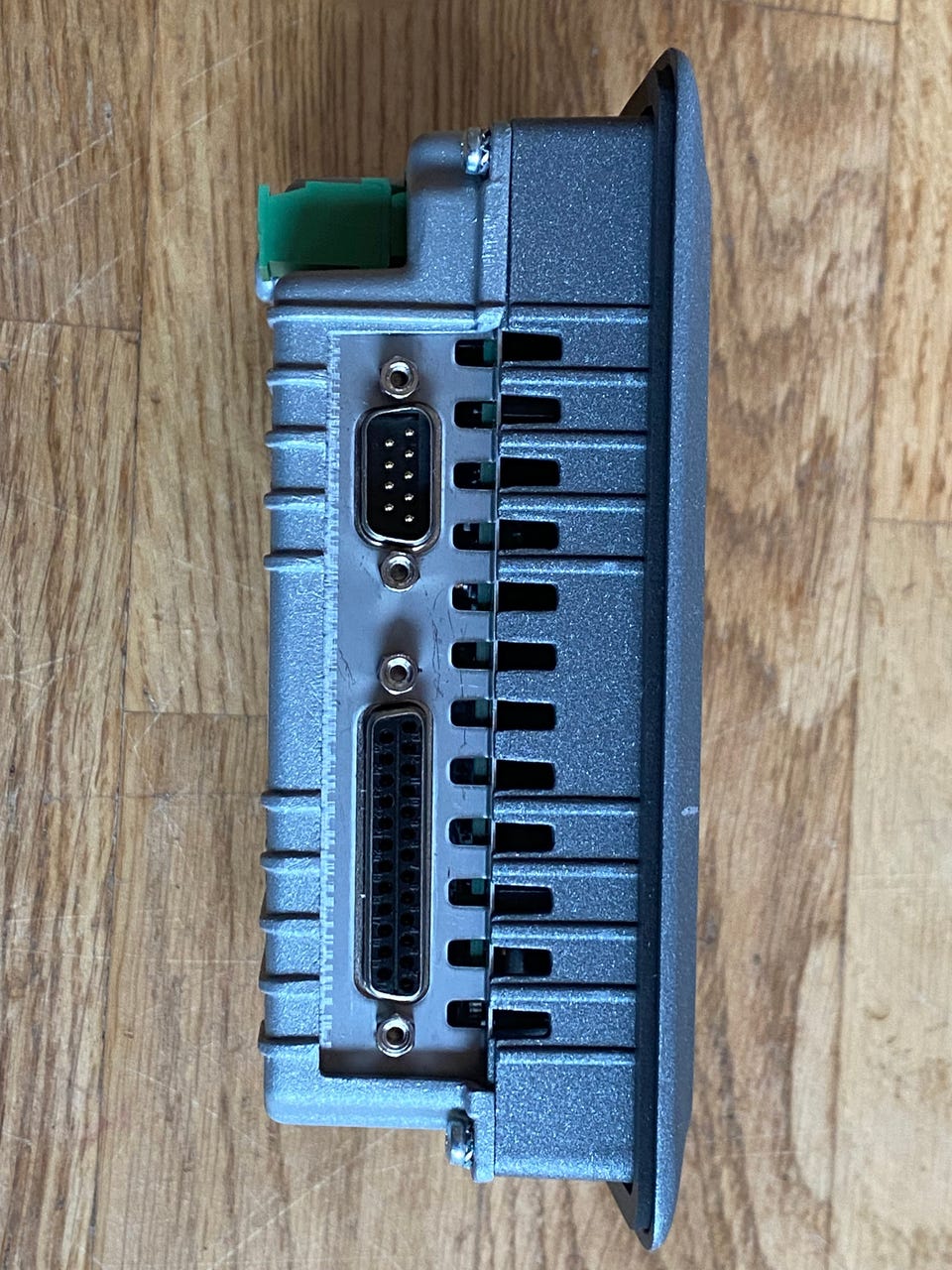

Number of serial ports 1 Port 9pin DSUB/1 Port 25 pin DSUB

Serial port 1 RS 232 (RTS/CTS)

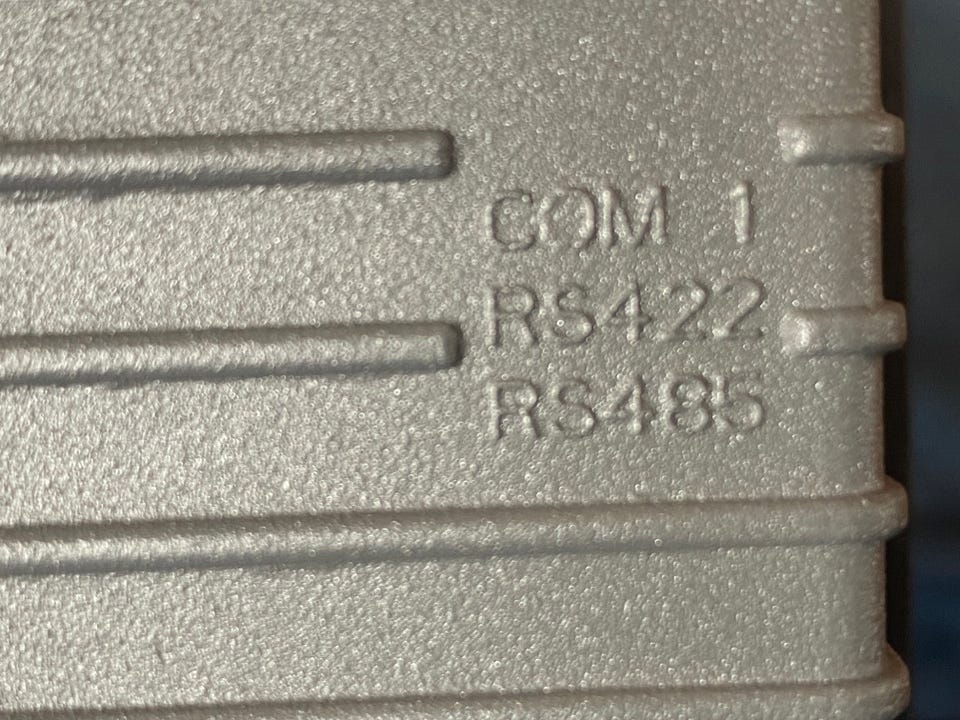

Serial port 2 RS422 (RTS)/RS485»

Number of Ethernet ports 1

Ethernet port 1 1x10/100 Base-T (shielded RJ45)

Panelet er testet, men har ikke vært i bruk. Mangler festebraketter. Kan sendes mot at kjøper betaler frakt kr 73.

Legg gjerne inn bud.

Søkeord:

Operator panel

Operatørpanel
