5 000 kr
![PA anlegg med QSC amplifier 2-Channel 2400-watt](https://images.finncdn.no/dynamic/480x480c//2024/8/vertical-0/08/0/364/840/880_b9408a28-a660-47fa-9bfc-4320bccb9c05.jpg)
Selger 2 stk XTI 4000 da jeg ikke trenger disse lengre.
Kan sendes i posten på kjøpers egen regning og risiko.
Har også mulighet for å sende faktura, men da kommer mva i tillegg.
XTI 4000 Power Amplifier Specifications:
Voltage Gain at 1kHz, 8 ohm rated output:
XTi 1000: 30.5dB _XTi 2000: 32.9dB_XTi 4000: 34.2dB
Frequency Response: ±0.25 dB from 20 Hz to 20 kHz at 1 watt into 4 ohms
Phase Response (at 1 watt, 20 Hz to 20 kHz): ±15
Load Impedance: Safe with all types of loads. Rated for 2 to 8 ohms in Stereo mode, 4 to 16 ohms in Bridge-Mono mode
Sensitivity: 1.4V
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): _105 dB (A weighted).
Damping Factor: Better than 500 from 20 Hz to 500 Hz.
Crosstalk:
> 80 dB below rated power, 20 Hz to 1 kHz.
Common Mode Rejection (CMR):
> 45 dB from 20 Hz to 1 kHz._Input Stage: Input is electronically balanced and employs precision 1% resistors.
Input Impedance (nominal): 20 k ohms, balanced;10 k ohms, unbalanced.
Maximum Input Signal: +22 dBu typical
AC Line Voltage and Frequency Configurations Available: 100V, 120V, 220-240V _50/60 Hz
AC Line Current:
XTi 1000: 6.5A_XTi 2000: 6.9A_XTi 4000: 8.0A
At Idle: Draws no more than 90 watts.
Operating Temperature: 0 C to 40 C at 95% relative humidity (non-condensing).
DSP Section
EQ: 4-band paragraphic per channel, boost/cut ±12 dB. Also adjustable high and low shelving filters
Filters: Highpass and lowpass per channel. Butterworth 6/12/18/24 dB per octave. High and low shelving filters, one per channel
Delay: For signal alignment of driver; 5 mS total delay
Subharmonic Synthesizer: Adds low-frequency content
Output limiter: Prevents clipping
Presets: 10 user speaker presets
Front Panel Controls and Indicators
Level: Detented rotary level control, one per channel
Power Switch: On/off switch applies AC power to the amplifier
Sel/Prev/Next Buttons: Three buttons near the LCD screen are used to access menu items
LCD Screen: Backlit liquid crystal display shows speaker presets
Signal Indicator: Green LED, one per channel, flashes when a very low-level signal is present at input
”10 Indicator: Green LED flashes when output signal exceeds ”10 dB below clip.
”20 Indicator: Green LED flashes when output signal level exceeds ”20 dB below clip
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio
Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp/Fault Indicator: Red LED, one per channel, illuminates under Fault or excessive temperature conditions
Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power

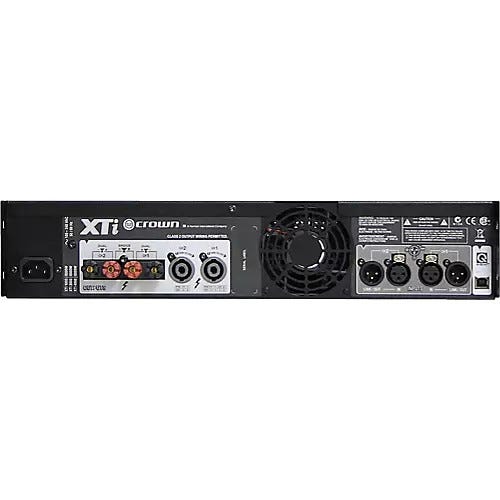

Rear Panel Controls and Connectors
AC Line Connector: NEMA 5-15P (15A)
Input Connector: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking
