Lenovo ThinkPad USB-C Dock Gen 2 - LDC-G2

Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

For mer info: https://support.lenovo.com/us/en/solutions/acc500106-thinkpad-usb-c-dock-gen-2-overview-and-service-parts

Note: Dock has the ability to support DisplayPort™ 1.4 and HDMI™ 2.0 for max 2 x 4K @ 60 Hz displays, but the real video output would depend on the system’s output.

- Docking Interface: USB-C

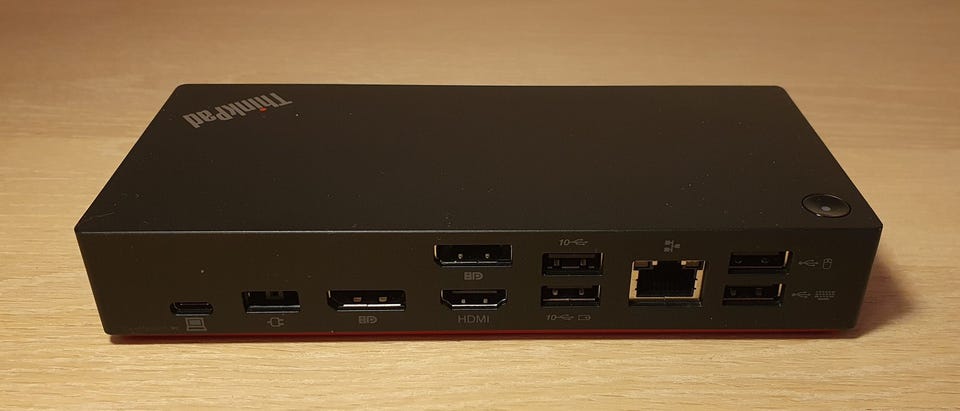

- Video Ports: DisplayPort - 2 stk.; HDMI Port - 1 stk.; DownStream Port (video/data) - 1 stk.

- USB Ports: 2 stk. USB 2.0; 3 stk. USB 3.1 Gen 2 (10 Gbps, 1 x always-on charging); 1 stk. USB-C (10 Gbps, 5V, 3A)

- Networking: Gigabit Ethernet Port

- Audio: 3.5 mm Stereo/Microphone Combo Port

- Security: Kensington Lock Slot

- Dimensjoner (BxDxH) mm: 170 x 80 x 28

- Maximum Number of External Monitors: 3

- Maximum Resolution/ Refresh Rate: 3840x2160 @60Hz

- Maximum Video Output:

One: 4K @ 60 Hz

Two: 4K @ 60 Hz. (Source: 2 Lanes HBR3* Source, MST, DSC 3:1)

Three: 4K @ 60 Hz X 2, 4K @ 30 Hz X 1. (Source: 2 Lanes HBR3* Source, MST, DSC 3:1)

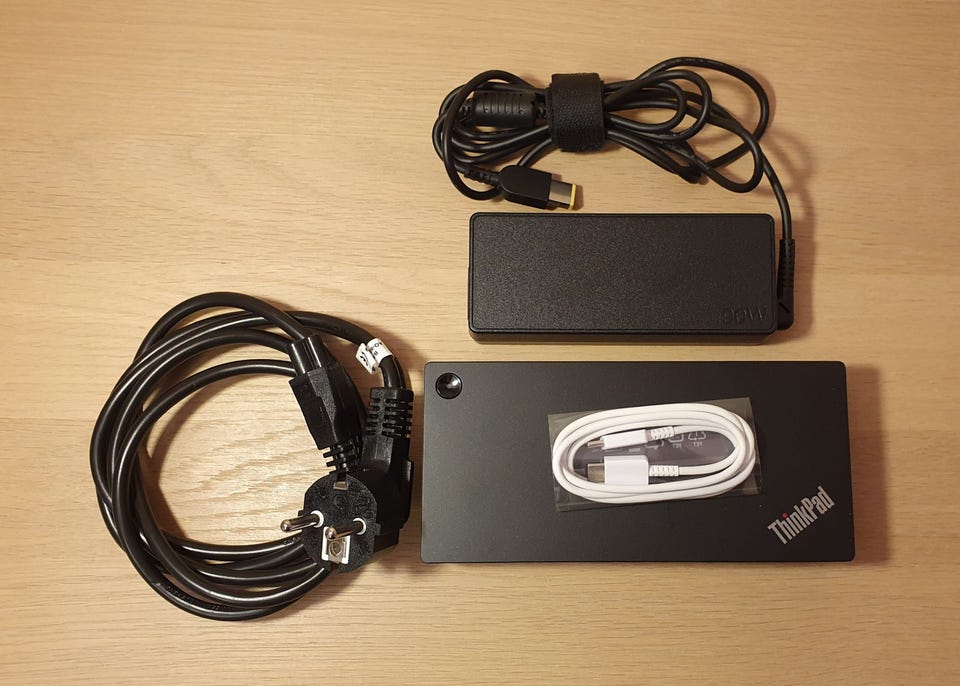

Dokkingstasjon er i topp tilstand og leveres med: LENOVO strømadapter 20V / 4,5A (90W) og 1 stk. USB-C kabel.
