Utstilling modell Fugemaskin UZ30 til stål profiler - plater - bjelker - rør m.m

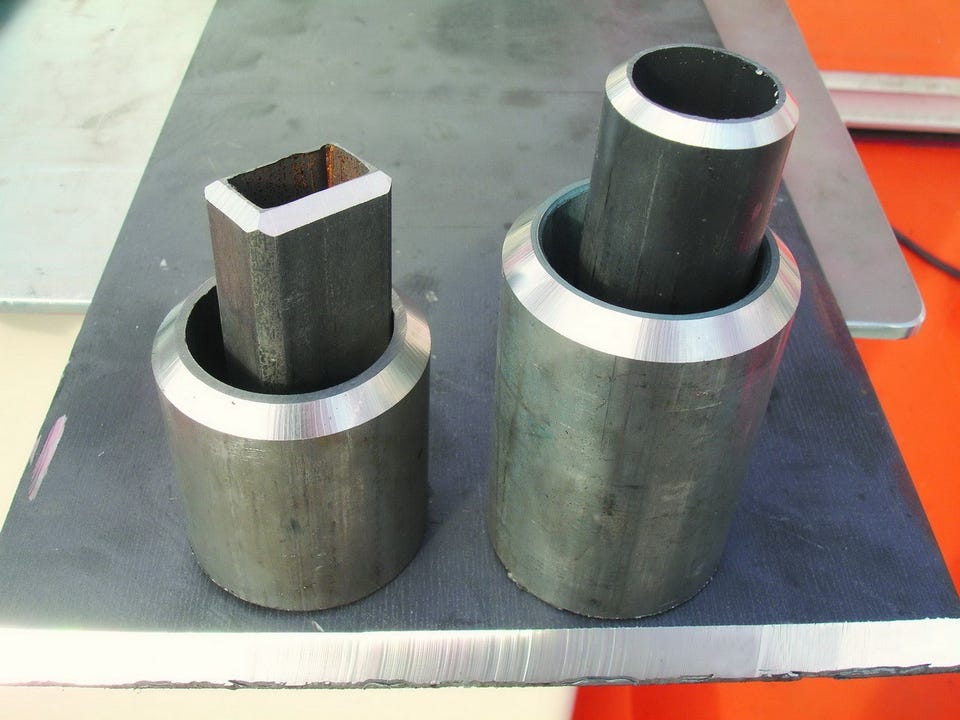

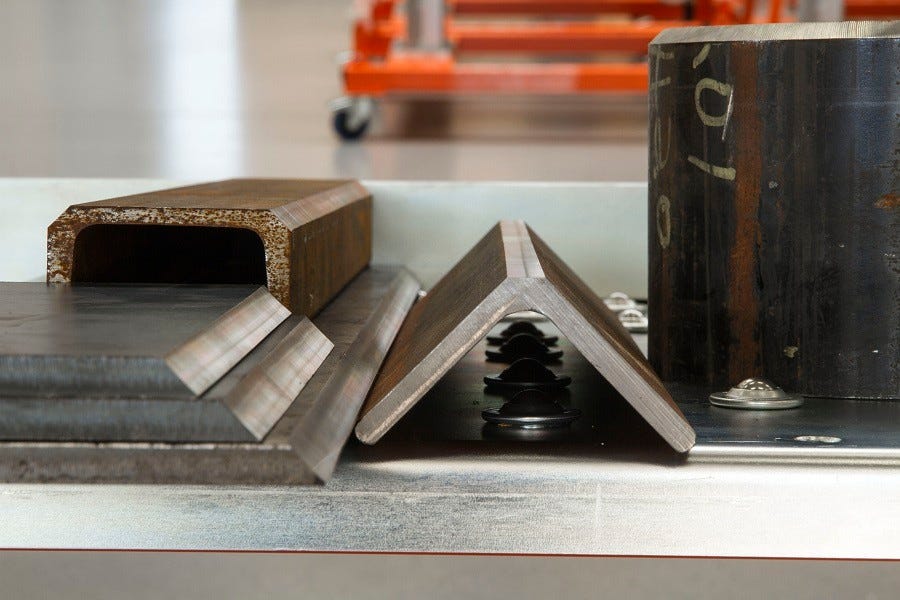

Fug plater og profiler enkelt og raskt med UZ30

Bevelling system UZ30 Express

Powerful, stationary bevelling and deburring machine for the efficient bevelling of flat steel, plates and profile material.
For all carbon steels, cast iron, aluminium and light metal alloys, non-ferrous metals and all cuttable materials.
The feed permits bevel machining without tight camping of the workpiece.
The swiveling milling spindle permits a milling angle within a continuous range of 30 - 60 .
Regulation of feed speed and cutting tool
Option to buy additional accessories such a milling devide for pipes, table extension left and right (total 2800 mm) with adjustable sidestops left and right
Technical data:
Bevel angle: Infinitely adjustable within the range from 30 to 60
Bevel width: 0 to 30mm ? 400 N/mm2 - 0 to 15mm ? 400 N/mm2
Cutter motor: 4kW
Speed: 0-5500 rpm
Tool diameter: Ø 94mm
Number of indexable inserts: 5 pieces
Thickness of the material: 2 - 100 mm
Feed motor: 0,45kW
Feed speed: 0,6-3,5m/min
Feed motor:400V /50Hz, 3phase, speed 0,6-3,5m/min
Minimum workpiece dimensions: L=60mm, W=20mm
Dimensions: 825 x 1200 x 1615 mm
Weight: 400kg
Working height: 1,000mm

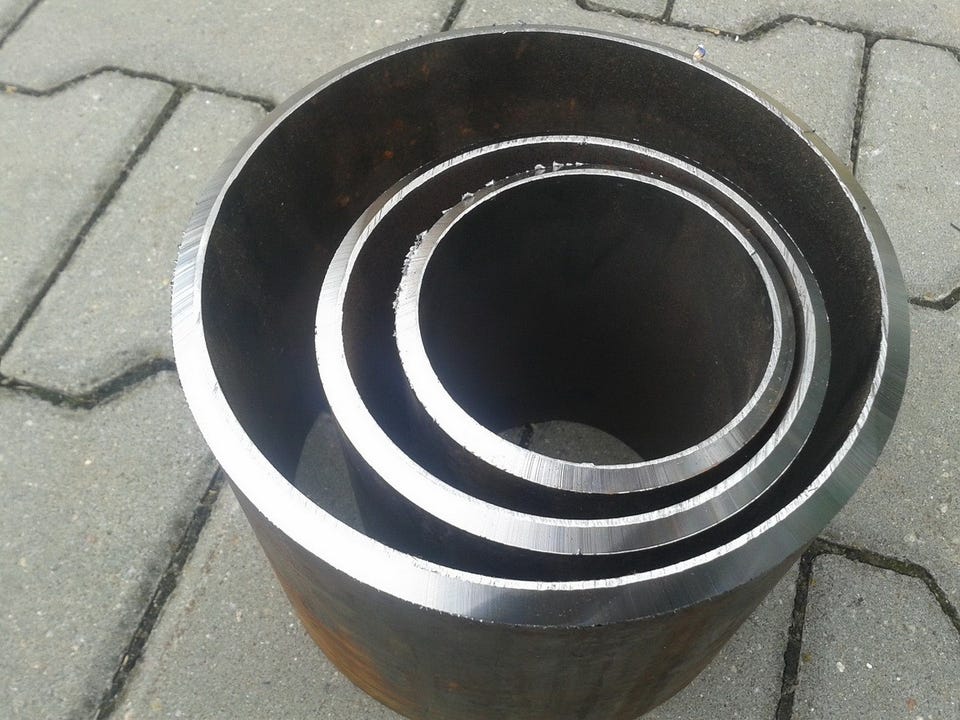

Pipe treatment: Ø 102-156mm

Se full beskrivelse av maskinen på vår hjemmeside

Prisen er eks mva og frakt
