Luxman K-113

alt fungerer, men når "spill"-knappen trykkes, vil den ikke snurre. kanskje den trenger et nytt belte

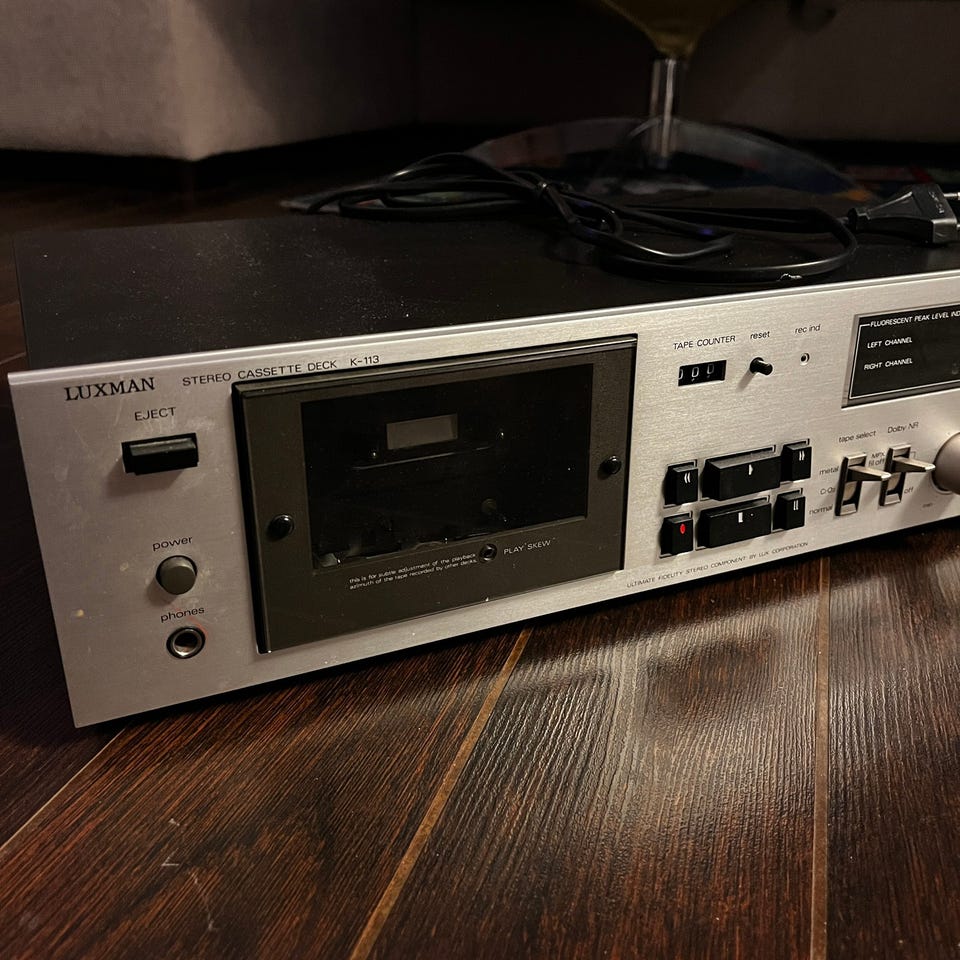

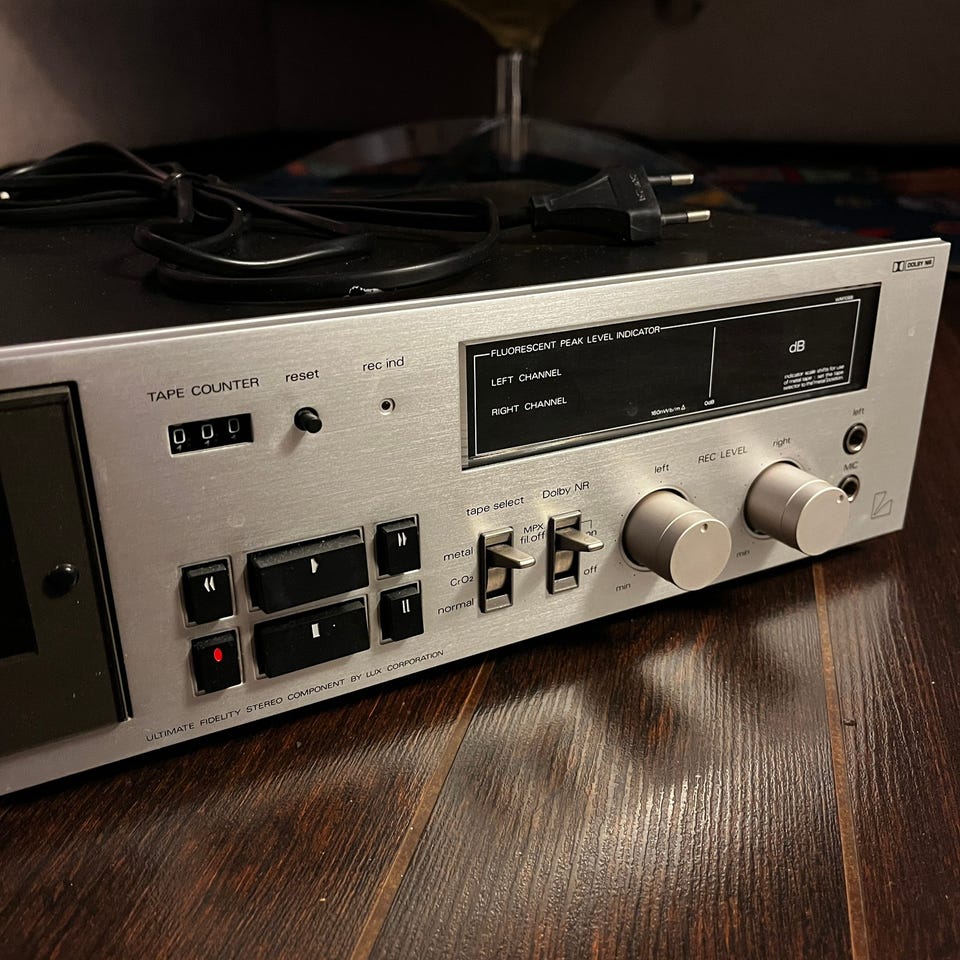

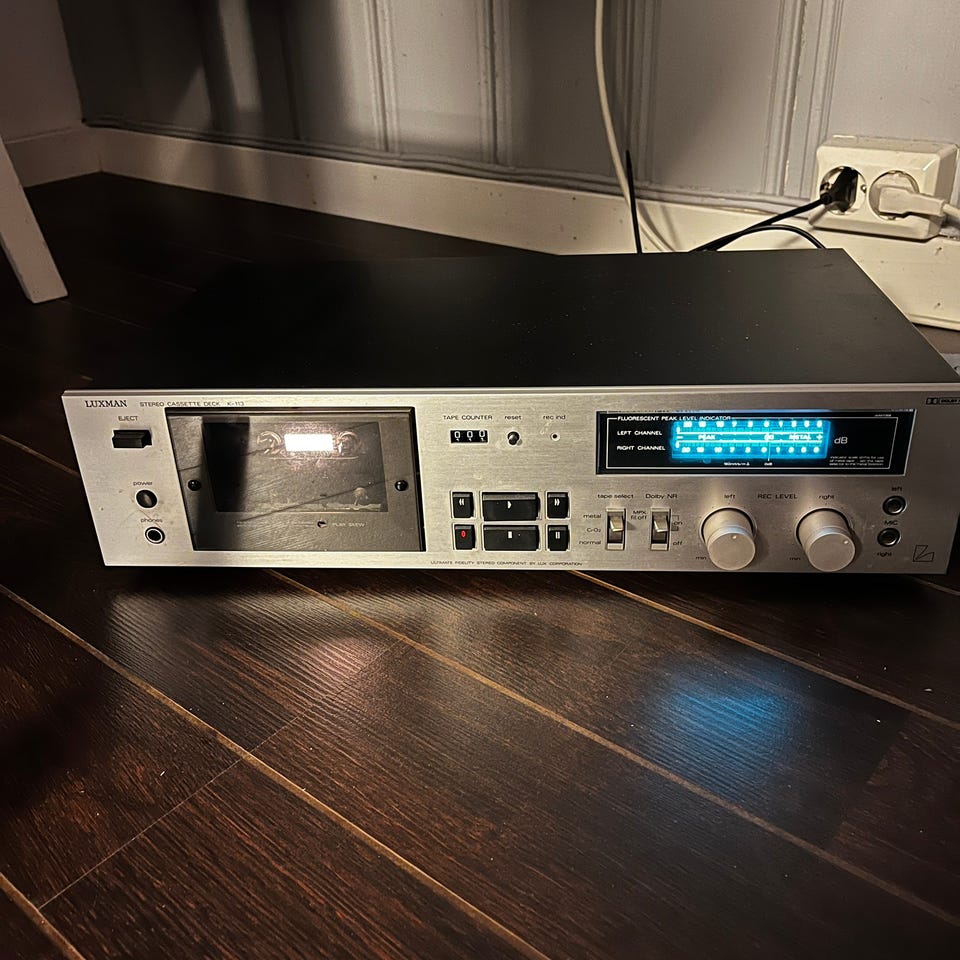

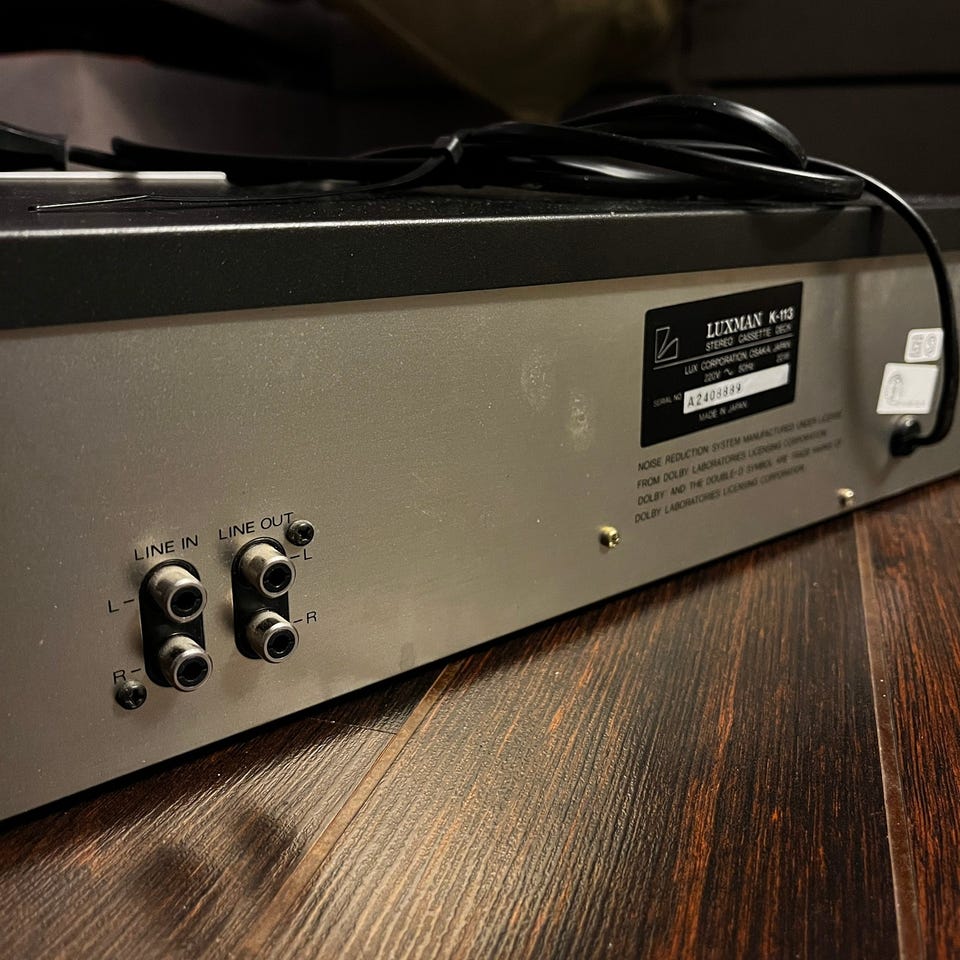

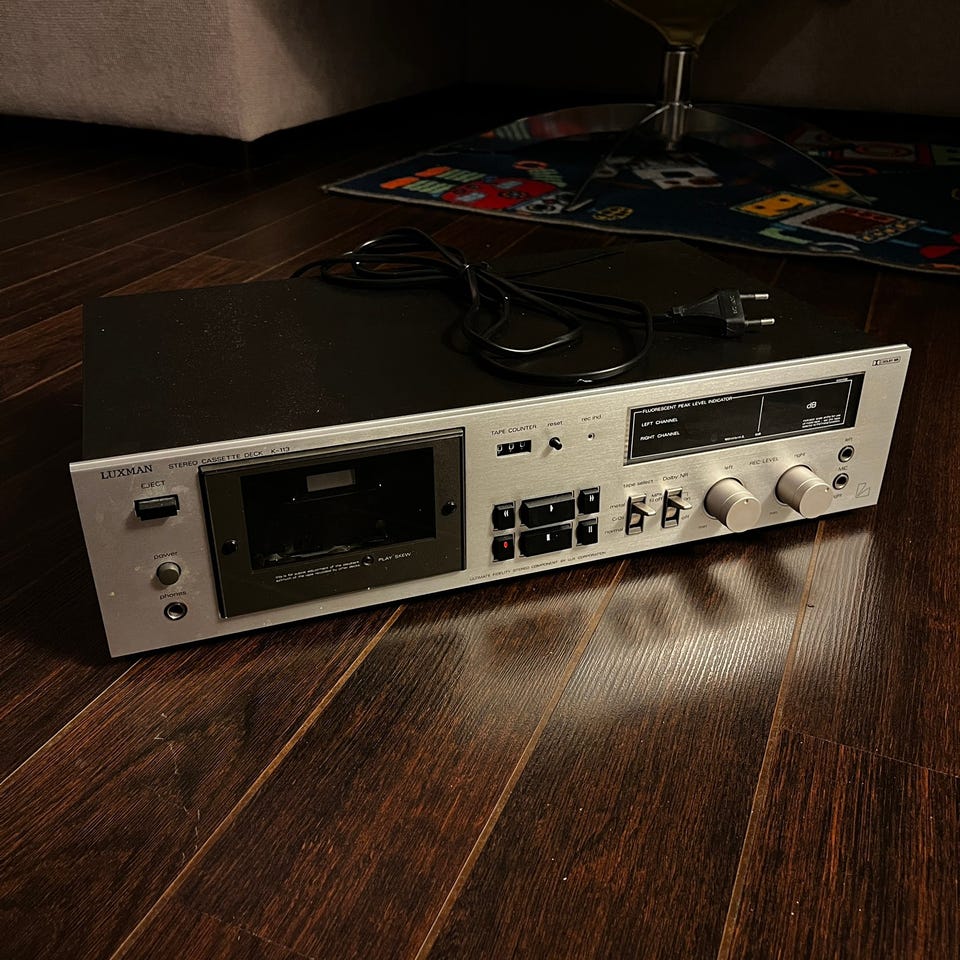

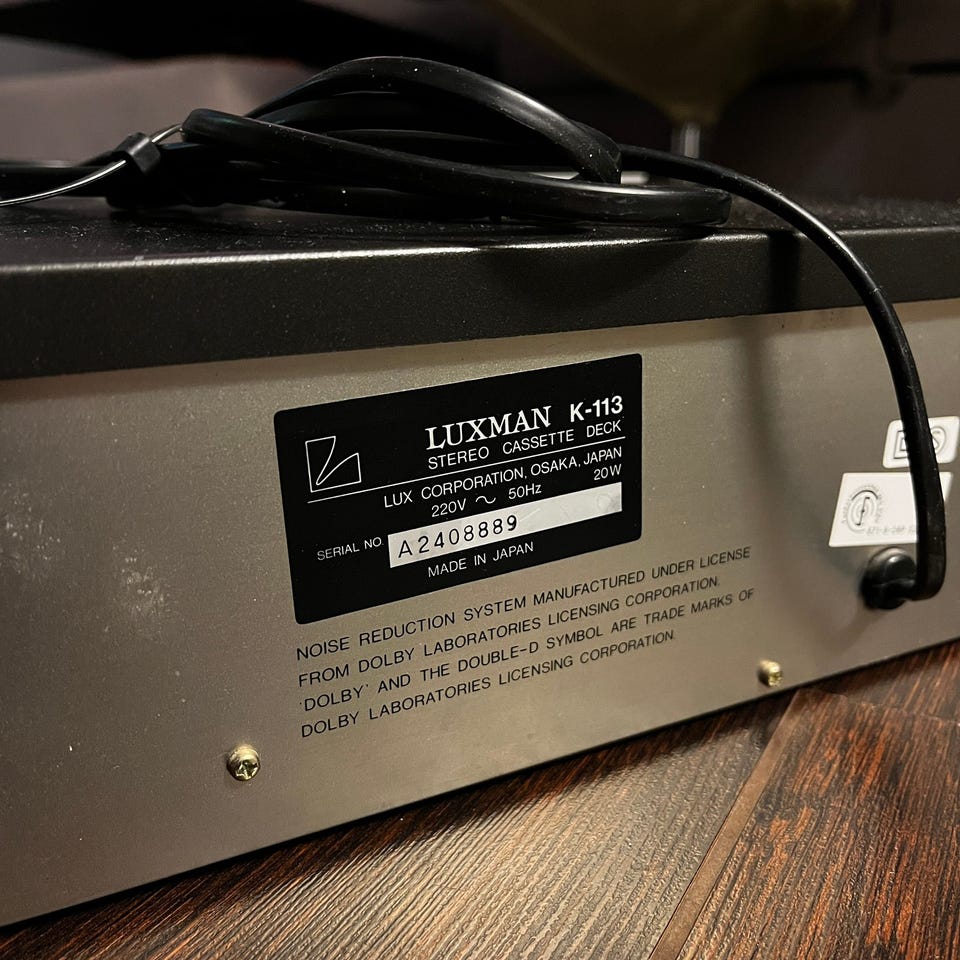

A very rare Luxman K-113 i godt stand. Vintage Stereo cassette deck fra Japan.

Manufacturer / Brand

Luxman, Lux Corp.; Kinsuido of Osaka

Year

1981

Category

Sound/Video Recorder and/or Player

Number of Transistors

Semiconductors present.

Semiconductors

Main principle

Audio-Amplification

Wave bands

- without

Details

Cassette-Recorder or -Player

Power type and voltage

Alternating Current supply (AC) / 220 Volt

Loudspeaker

- For headphones or amp.

Material

Metal case

from Radiomuseum.org

Model: Stereo Cassette Deck K-113 - Luxman, Lux Corp.; Kinsuido of

Shape

Book-shelf unit.

Dimensions (WHD)

438 x 109 x 275 mm / 17.2 x 4.3 x 10.8 inch

Notes

Frontloading 2-Head Cassette Deck with Dolby B Noise Reduction.

Heads: 2 heads R/P x1 (Hexalam), erace x1 (doublegap ferrite)

Motor: DC Servo

Single Capstan System

Wow & Flutter: no more than 0.06%

Signal-to-Noise Ratio:

better than 57dB (Dolby NR off) metal tape

better than 62dB (Dolby NR on) metal tape

Frequency Resonse:

20Hz-19kHz (metal tape)

20Hz-18kHz (Chrome tape)

20Hz-16kHz (LH tape)

Distortion: no more than 0.7% (LH, 1kHz, 0dB)

Input Sensitivity:

Line - 80mV

Mic - 0.25mV

Output Level:

line - 500mV

headphone - 1mW (8Ohms)

Net weight (2.2 lb = 1 kg)

4.2 kg / 9 lb 4 oz (9.251 lb)
