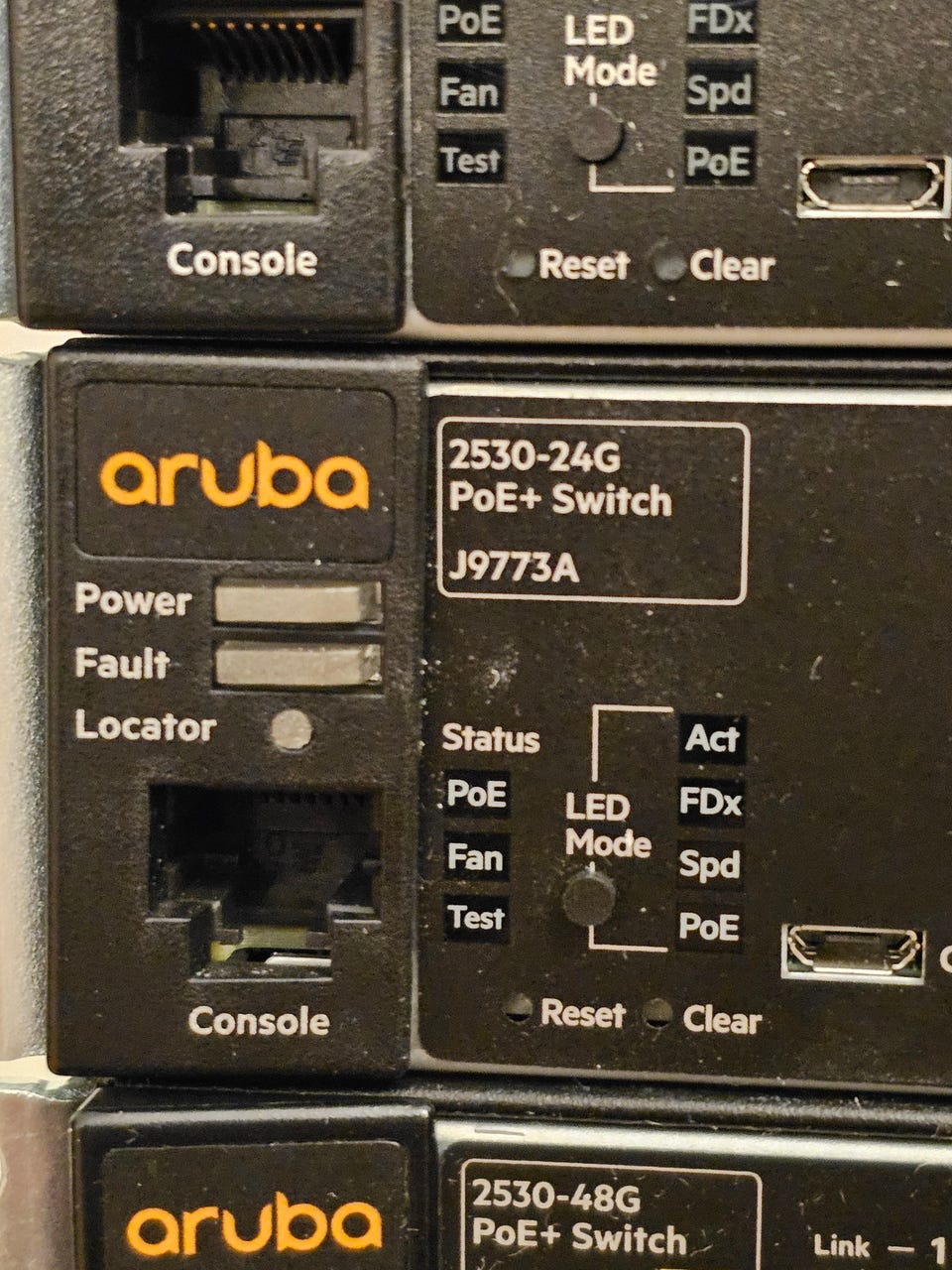

Aruba 2530-24G-PoE+ Switch (J9773A

Selger Aruba 2530-24G-PoE+ Switch (J9773A. Dette er en power-over-ethernet og må ikke forveksles med de billigere variantene uten PoE

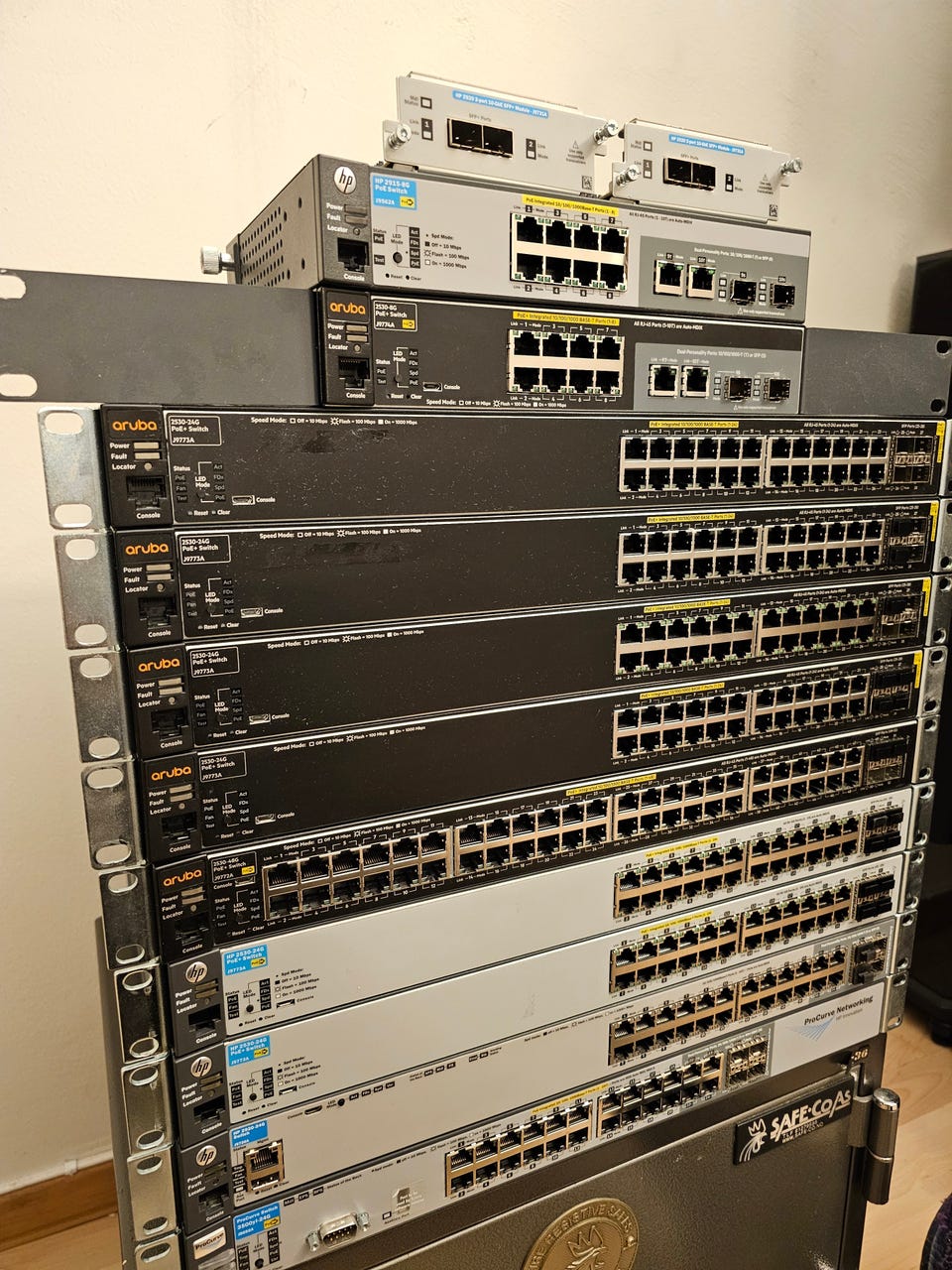

Jeg har flere, prisen er per stk! Se mine andre annonser for glere typer switcher.

Link til Aruba produkt spesifikasjoner:

https://support.hpe.com/hpesc/public/docDisplay?docId=c03624915&docLocale=en_US#N127FD

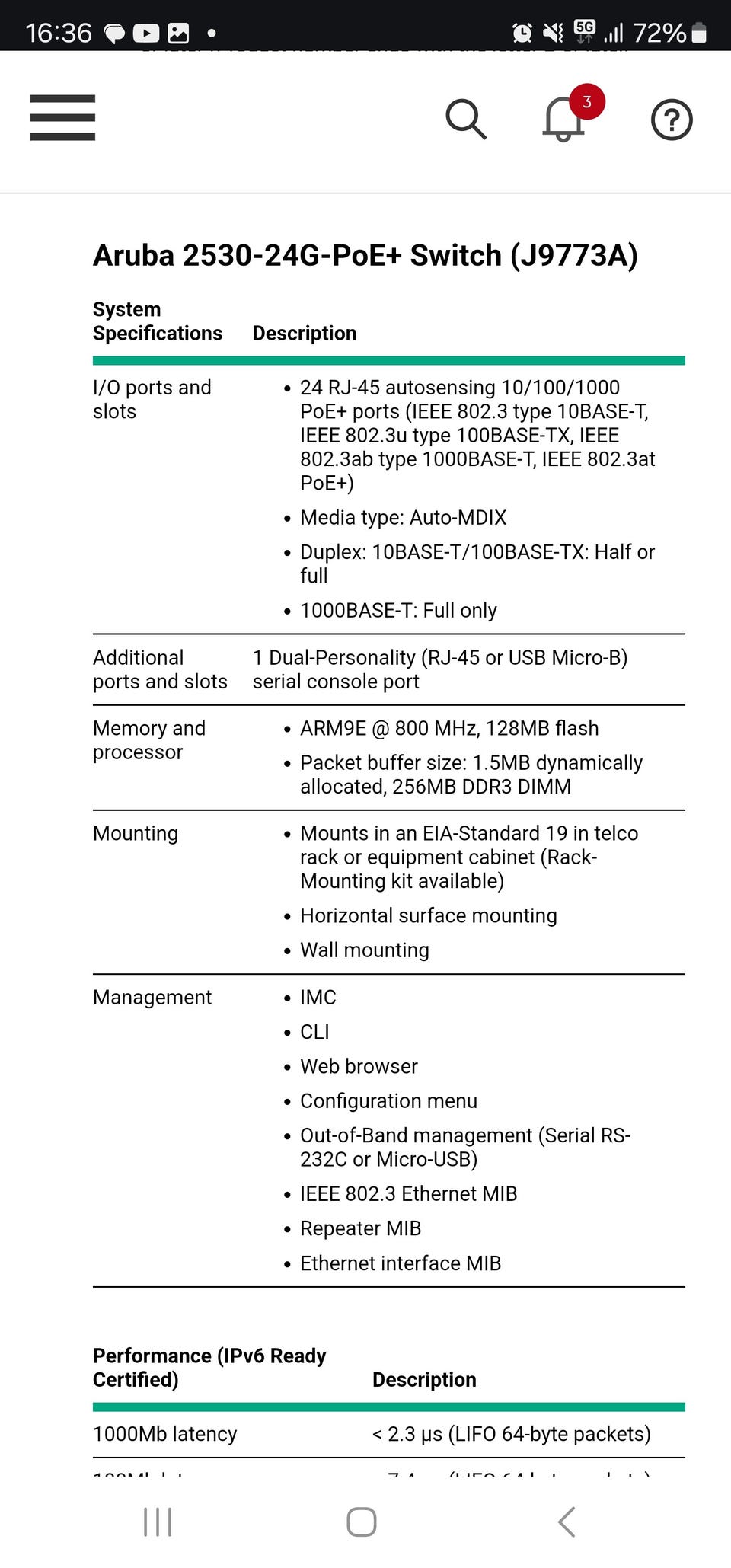

System Specifications

Description

I/O ports and slots

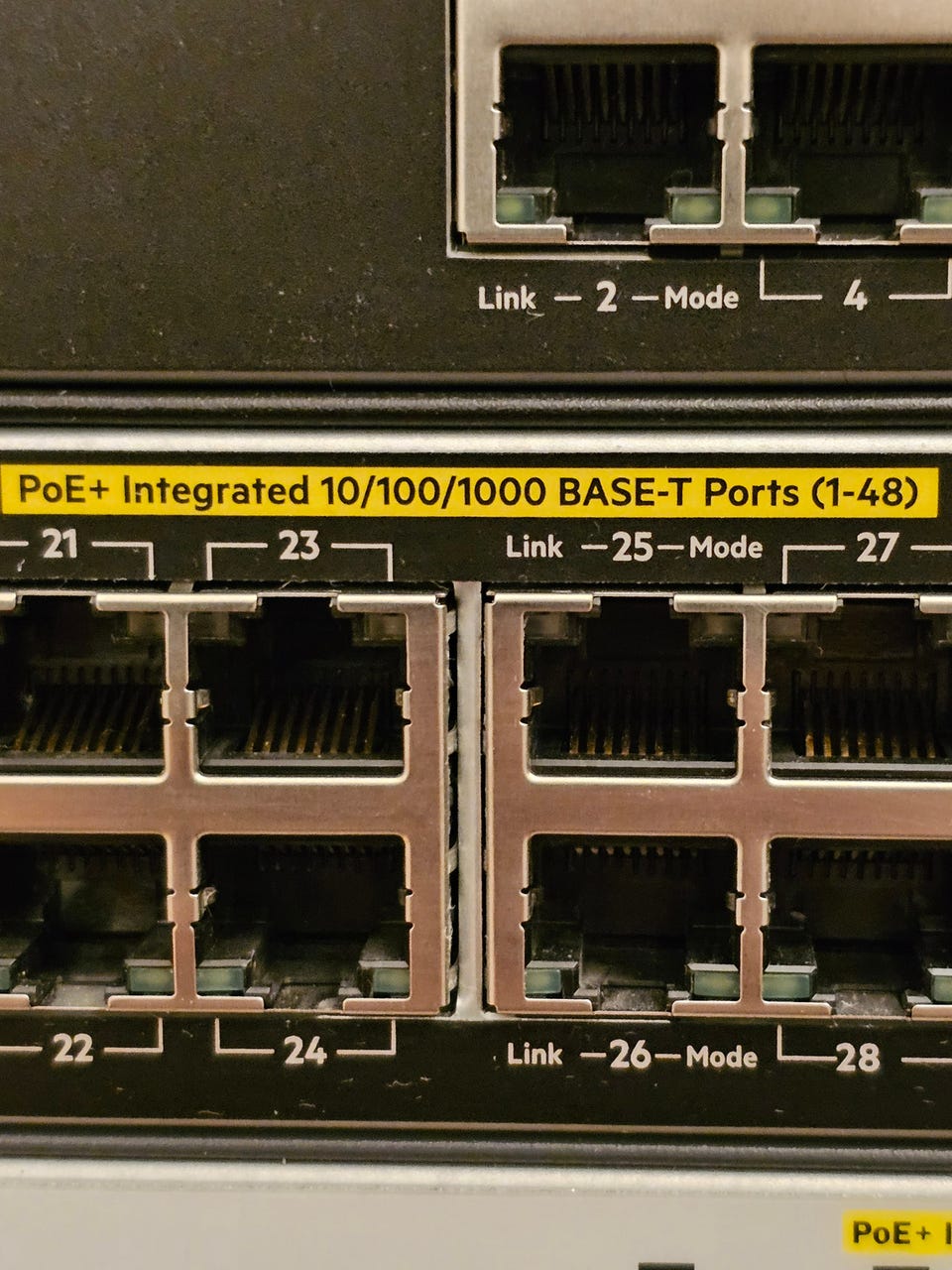

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T, IEEE 802.3at PoE+)

Media type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: Half or full

1000BASE-T: Full only

Additional ports and slots

1 Dual-Personality (RJ-45 or USB Micro-B) serial console port

Memory and processor

ARM9E @ 800 MHz, 128MB flash

Packet buffer size: 1.5MB dynamically allocated, 256MB DDR3 DIMM

Mounting

Mounts in an EIA-Standard 19 in telco rack or equipment cabinet (Rack-Mounting kit available)

Horizontal surface mounting

Wall mounting

Management

IMC

CLI

Web browser

Configuration menu

Out-of-Band management (Serial RS-232C or Micro-USB)

IEEE 802.3 Ethernet MIB

Repeater MIB

Ethernet interface MIB

Performance (IPv6 Ready Certified)

Description

1000Mb latency

< 2.3 µs (LIFO 64-byte packets)

100Mb latency

< 7.4 µs (LIFO 64-byte packets)

Throughput

Up to 41.6 million p/s (64-byte packets)

Switching capacity

56 Gb/s

MAC address table size

16000 entries

Physical Specifications

Description

Dimensions (H x W x D)

4.45 x 44.3 x 33.02 cm (1.75 x 17.44 x 13.00 in)

1U height

Weight

3.95 kg (8.7 lb)

Electrical Specifications

Description

Maximum heat dissipation

135 BTU/hr (142.42 kJ/hr), (Switch only: 135 BTU/hr; Combined switch + maximum PoE devices: 843 BTU/hr)

Voltage

100 - 127 / 200 - 240 V ac

Current

3.2/1.6 A

Idle power1

25.2 W

Maximum power rating2

247 W

PoE power

195 W

Frequency

50/60 Hz

NOTE:

Idle power is the actual power consumption of the device with no ports connected

Maximum power rating and maximum heat dissipation are the Worst-Case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (If equipped), 100% traffic, all ports plugged in, and all modules populated. PoE is the total power budget available to all PoE ports

Environmental Specifications

Description

Operating temperature

0° to 45°C (32° to 113°F)

Operating relative humidity

15% to 95% @ 40°C (104°F), noncondensing

Non-Operating/storage temperature

(-40°) to 70°C ((-40°) to 158°F)

Non-Operating/storage relative humidity

15% to 90% @ 65°C (149°F), noncondensing

Altitude

Up to 3 km (10,000 ft)

Acoustic

Power: 39.6 dB, pressure: 43.9 dB

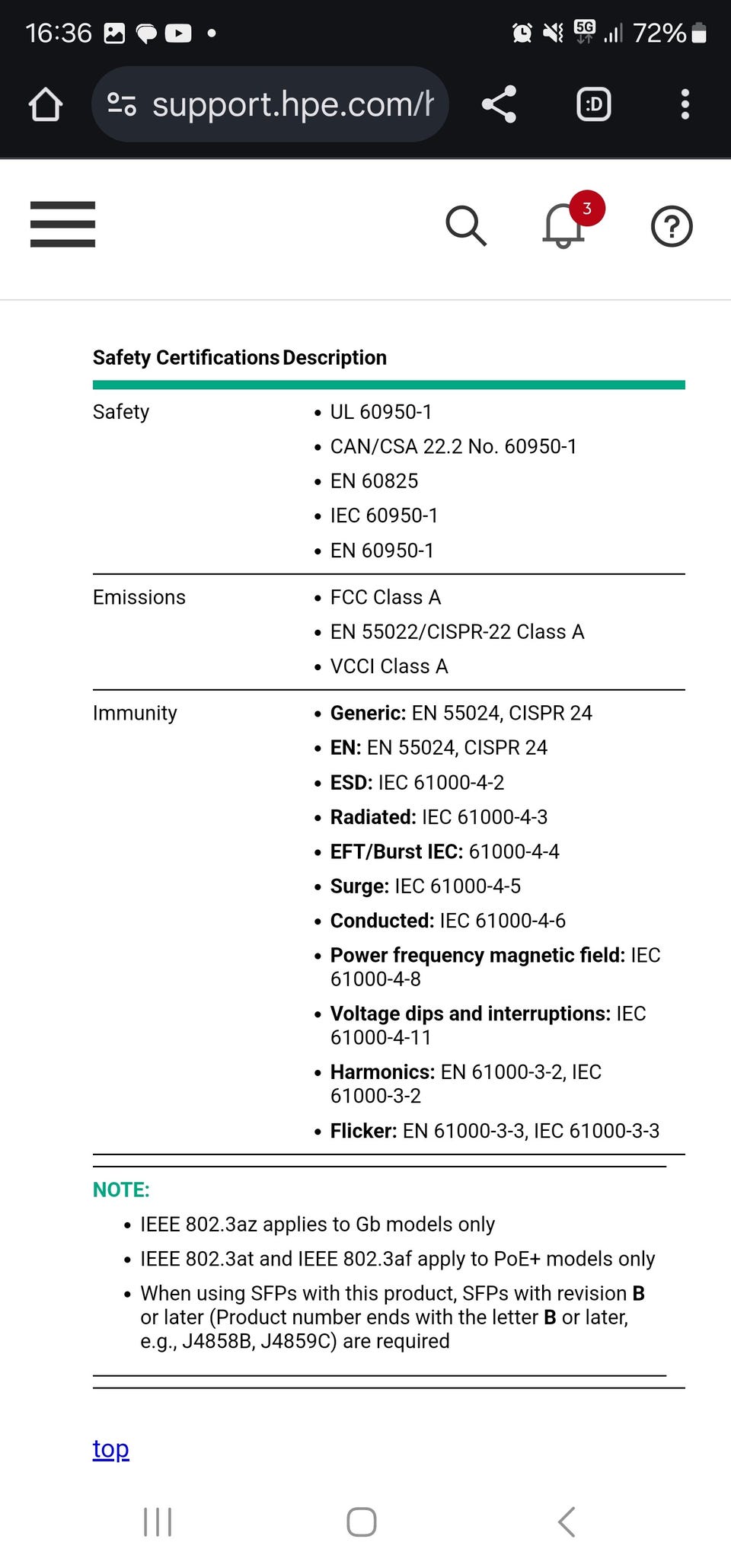

Safety Certifications

Description

Safety

UL 60950-1

CAN/CSA 22.2 No. 60950-1

EN 60825

IEC 60950-1

EN 60950-1

Emissions

FCC Class A

EN 55022/CISPR-22 Class A

VCCI Class A

Immunity

Generic: EN 55024, CISPR 24

EN: EN 55024, CISPR 24

ESD: IEC 61000-4-2

Radiated: IEC 61000-4-3

EFT/Burst IEC: 61000-4-4

Surge: IEC 61000-4-5

Conducted: IEC 61000-4-6

Power frequency magnetic field: IEC 61000-4-8

Voltage dips and interruptions: IEC 61000-4-11

Harmonics: EN 61000-3-2, IEC 61000-3-2

Flicker: EN 61000-3-3, IEC 61000-3-3

NOTE:

IEEE 802.3az applies to Gb models only

IEEE 802.3at and IEEE 802.3af apply to PoE+ models only

When using SFPs with this product, SFPs with revision B or later (Product number ends with the letter B or later, e.g., J4858B, J4859C) are required
