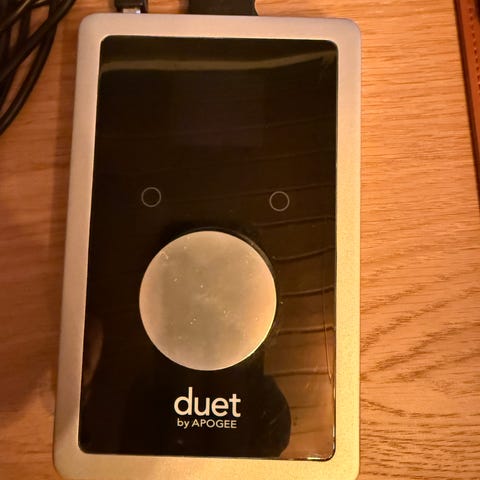

Apogee Duet - KUN ETT TIL DENNE PRISEN (FØRPRIS KR.6899,-)
Til salgs4 745 kr
Beskrivelse
Heftig lydkvalitet. Breakoutkabel for inn- og utganger.
Kan også kobles til Ipad og Iphone ved kjøp av tilleggskabel.
Spesifikasjoner:
System Requirements:
Mac OS:
Computer: Intel Mac 1.5GHz or faster
Memory: 2 GB RAM minimum, 4 GB recommended
OS: 10.6.8, 10.7.5 or greater
Connection and power: Any available USB port on a Mac
USB bus powered; DC power optional
(DC power supply included)
iOS:
iOS version: 5.1.1 or greater
Connection: 30-pin dock connector
DC power required (DC power supply included)
iOS device compatibility (Lightning connector)
iPod touch* (5th generation)
iPhone 5*
iPad* (4th generation)
iPad mini*
* Requires Apple’s Lightning to 30-pin adapter. Sold separately.
iOS device compatibility (30-pin connector)
iPod touch (4th generation)
iPhone 4s
iPhone 4
iPad (3rd generation)
iPad 2
iPad
Compatible Software:
Mac
Any Mac Core Audio compatible application
Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo
iOS
Any iOS Core Audio compatible app. Recommended apps: GarageBand, Auria
Features:
USB 2.0 Mac and iOS audio interface
2 analog inputs:
Combination Line (balanced +20dBu max)
Mic/Instrument (+20dBu/+14dBu max)
2 Microphone preamps with up to 75dB of gain
Selectable 48v phantom power, Soft Limit and phase invert
4 analog outputs:
2 Balanced line outputs, +20 dBu maximum output level
1 Independent 1/4” stereo headphone output
MIDI connection (Core MIDI compatible; USB-A type connector)
A/D and D/A conversion at 24-bit/192kHz
Controller knob selects function, sets input and output level
Top panel high resolution OLED display
Two assignable top panel touch pads to control:
Mute speakers, headphones or all outputs
Dim speakers, headphones or all outputs
Sum to mono speakers, headphones or all outputs
Assign headphones to outputs 1-2, 3-4 or low latency mixer
Clear Meters
Apogee’s Maestro (Mac & iOS) app for advanced control
Mic Pre:
EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
Max input level: +20dBu
Input impedance: 3KOhm
Hi-Z:
Max input level 14 dBu
Input impedance: >2MOhm
A/D conversion:
Max input level (+4dBu ref): +20dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 5KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -106dB (@ 96Khz)
Dyn. Range: 114dB (A-weighted)
D/A conversion:
Max output level (+4dBu ref): +20dBu
Max output level (-10dBV ref): +6dBV
Line output impedance: 90 Ohm
Max output level headphones: 19dBu
HPH output impedance 30 Ohm.
Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
Rel. THD+N : -113dB (@96Khz)
Dyn Range: 123dB (A-weighted)
In the box:
Duet
Breakout Cable with:
2 Combination Line/Mic/Instrument Inputs
2 Balanced Line Outputs
USB Cable
30-pin iOS cable
Universal Power Adapter for US, UK and EU
Quick Start Guide
Kan også kobles til Ipad og Iphone ved kjøp av tilleggskabel.
Spesifikasjoner:
System Requirements:
Mac OS:
Computer: Intel Mac 1.5GHz or faster
Memory: 2 GB RAM minimum, 4 GB recommended
OS: 10.6.8, 10.7.5 or greater
Connection and power: Any available USB port on a Mac
USB bus powered; DC power optional
(DC power supply included)
iOS:
iOS version: 5.1.1 or greater
Connection: 30-pin dock connector
DC power required (DC power supply included)
iOS device compatibility (Lightning connector)
iPod touch* (5th generation)
iPhone 5*
iPad* (4th generation)
iPad mini*
* Requires Apple’s Lightning to 30-pin adapter. Sold separately.
iOS device compatibility (30-pin connector)
iPod touch (4th generation)
iPhone 4s
iPhone 4
iPad (3rd generation)
iPad 2
iPad
Compatible Software:
Mac
Any Mac Core Audio compatible application
Recommended apps: Logic, GarageBand, MainStage, Final Cut, Pro Tools, Ableton Live, Digital Performer, Studio One, Cubase, and Nuendo
iOS
Any iOS Core Audio compatible app. Recommended apps: GarageBand, Auria
Features:
USB 2.0 Mac and iOS audio interface
2 analog inputs:
Combination Line (balanced +20dBu max)
Mic/Instrument (+20dBu/+14dBu max)
2 Microphone preamps with up to 75dB of gain
Selectable 48v phantom power, Soft Limit and phase invert
4 analog outputs:
2 Balanced line outputs, +20 dBu maximum output level
1 Independent 1/4” stereo headphone output
MIDI connection (Core MIDI compatible; USB-A type connector)
A/D and D/A conversion at 24-bit/192kHz
Controller knob selects function, sets input and output level
Top panel high resolution OLED display
Two assignable top panel touch pads to control:
Mute speakers, headphones or all outputs
Dim speakers, headphones or all outputs
Sum to mono speakers, headphones or all outputs
Assign headphones to outputs 1-2, 3-4 or low latency mixer
Clear Meters
Apogee’s Maestro (Mac & iOS) app for advanced control
Mic Pre:
EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
Max input level: +20dBu
Input impedance: 3KOhm
Hi-Z:
Max input level 14 dBu
Input impedance: >2MOhm
A/D conversion:
Max input level (+4dBu ref): +20dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 5KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -106dB (@ 96Khz)
Dyn. Range: 114dB (A-weighted)
D/A conversion:
Max output level (+4dBu ref): +20dBu
Max output level (-10dBV ref): +6dBV
Line output impedance: 90 Ohm
Max output level headphones: 19dBu
HPH output impedance 30 Ohm.
Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
Rel. THD+N : -113dB (@96Khz)
Dyn Range: 123dB (A-weighted)
In the box:
Duet
Breakout Cable with:
2 Combination Line/Mic/Instrument Inputs
2 Balanced Line Outputs
USB Cable
30-pin iOS cable
Universal Power Adapter for US, UK and EU
Quick Start Guide
NB: Knappen for å vise hele beskrivelsen har kun en visuell effekt.
Nøkkelinfo
- Tilstand
- Ny
Generell info
Dette produktet kan kjøpes direkte i vår nettbutikk www.idmusikk.no På våre sider finner du over 4000 produkter fra de mest kjente produsentene verden over. Alt til konkurransedyktige priser. Velkommen til en hyggelig handel!
Beliggenhet
FINN-kode | 135977123 |
---|---|
Sist endret | 12.12.2018 kl. 12:43 |
