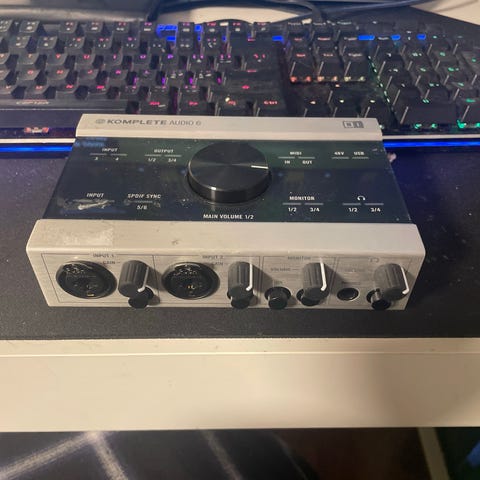

Native Instruments Komplete Audio 6 - FØRPRIS KR.2295,-, NÅ 1795,-
Til salgs1 795 kr
Beskrivelse
PREMIUM 6-CHANNEL AUDIO INTERFACE
4 analog ins/outs, digital in/out, MIDI in/out
USB powered, 24-bit/96 kHz recording
Includes instruments, sequencer and DJ software
CONNECTIVITY
4 analog inputs: 2 balanced mic/line/instrument (XLR); plus 2 balanced line (1/4" TRS)
4 balanced analog outputs (1/4" TRS)
Digital stereo input and output (S/PDIF / RCA) for lossless signal transmission
MIDI in/out for master keyboard, MASCHINE or any third-party MIDI controller
Headphone output with independent level control and source switch
Completely USB powered, with an extra sturdy custom USB socket
SYSTEM REQUIREMENTS
Mac OS X 10.9, 10.10 or 10.11.1 (latest update), Intel Core 2 Duo
Windows 7, Windows 8, or Windows 10 (latest Service Pack, 32/64-bit), Intel Core 2 Duo or AMD AthlonTM 64 X2
4 GB RAM (6 GB recommended for large KONTAKT Instruments)
SUPPORTED DRIVERS
ASIO
Core Audio
DirectSound
WASAPI
DIMENSIONS
2" (52 mm) x 6.3" (159 mm) x 4.8" (122 mm), 1.9lb (850 grams)
GENERAL
Monitor with 1024 x 768 screen resolution, USB 2.0, DVD drive
HARDWARE CHARACTERISTICS
Audio Converters
A/D Channels,
D/A Channels 4, 4
Sample Rates 44.1, 48, 88.2, 96 kHz
Bit Resolution 16, 24 Bit
Inputs 1/2
(A/D-D/A to Output*) Line Instrument Mic
Input Impedance 44 kOhm, balanced 1 MOhm, unbalanced 3.4 kOhm, balanced
Full-Scale Input Level @ max. Gain -4 dBu -9.7 dBu -36 dBu
Maximum Input Level +14.3 dBu +8.4 dBu 0 dBu
Gain -inf ... +15 dB -inf ... +21 dB +11 dB ... +47 dB
Dynamic Range @ Unity Gain 98.3 dB (A) 98.3 dB (A) 98.0 dB (A)
THD+N (Full-Scale Level, Unity Gain) 0.013 % 0.013 % 0.013 %
Frequency Response(96 kHz), -1 dB 13 Hz - 42 kHz 12 Hz - 42 kHz 13 Hz - 45 kHz
Equivalent Input Noise @ Max. Gain — — -127.5 dBu (A)
Inputs 3/4
(A/D-D/A toOutput*)
Input Impedance 44 kOhm, balanced
Full-Scale Input Level +12 dBu
Gain -1 dB
Dynamic Range 98.5 dB (A)
THD+N (Full-Scale Level) 0.013 %
Frequency Response (96 kHz), -1 dB 12 Hz - 43 kHz
Line Outputs (D/A)
Full Scale Output Level @ Max. Volume +11 dBu
Dynamic Range @ Max. Volume 102 dB (A)
THD+N 1/2: 0.01%, 3/4: 0.02%
Frequency Response (96 kHz), -1 dB 10 Hz - 45 kHz
Headphone Output
Maximum Output Level (High Impedance) +12 dBu, 3.0 Vrms
Maximum Output Power 20 mW @ 100 Ohms, 11 mW @ 33 Ohms
Dynamic Range 102 dB (A)
THD+N @ Max Level, 100 Ohms 0.014%
Frequency Response (96 kHz), -1 dB 9 Hz - 45 kHz
Digital I/O 2 channels (5/6), SPDIF in/out, coaxial
4 analog ins/outs, digital in/out, MIDI in/out
USB powered, 24-bit/96 kHz recording
Includes instruments, sequencer and DJ software
CONNECTIVITY
4 analog inputs: 2 balanced mic/line/instrument (XLR); plus 2 balanced line (1/4" TRS)
4 balanced analog outputs (1/4" TRS)
Digital stereo input and output (S/PDIF / RCA) for lossless signal transmission
MIDI in/out for master keyboard, MASCHINE or any third-party MIDI controller
Headphone output with independent level control and source switch
Completely USB powered, with an extra sturdy custom USB socket
SYSTEM REQUIREMENTS
Mac OS X 10.9, 10.10 or 10.11.1 (latest update), Intel Core 2 Duo
Windows 7, Windows 8, or Windows 10 (latest Service Pack, 32/64-bit), Intel Core 2 Duo or AMD AthlonTM 64 X2
4 GB RAM (6 GB recommended for large KONTAKT Instruments)
SUPPORTED DRIVERS
ASIO
Core Audio
DirectSound
WASAPI
DIMENSIONS
2" (52 mm) x 6.3" (159 mm) x 4.8" (122 mm), 1.9lb (850 grams)
GENERAL
Monitor with 1024 x 768 screen resolution, USB 2.0, DVD drive
HARDWARE CHARACTERISTICS
Audio Converters
A/D Channels,
D/A Channels 4, 4
Sample Rates 44.1, 48, 88.2, 96 kHz
Bit Resolution 16, 24 Bit
Inputs 1/2
(A/D-D/A to Output*) Line Instrument Mic
Input Impedance 44 kOhm, balanced 1 MOhm, unbalanced 3.4 kOhm, balanced
Full-Scale Input Level @ max. Gain -4 dBu -9.7 dBu -36 dBu
Maximum Input Level +14.3 dBu +8.4 dBu 0 dBu
Gain -inf ... +15 dB -inf ... +21 dB +11 dB ... +47 dB
Dynamic Range @ Unity Gain 98.3 dB (A) 98.3 dB (A) 98.0 dB (A)
THD+N (Full-Scale Level, Unity Gain) 0.013 % 0.013 % 0.013 %
Frequency Response(96 kHz), -1 dB 13 Hz - 42 kHz 12 Hz - 42 kHz 13 Hz - 45 kHz
Equivalent Input Noise @ Max. Gain — — -127.5 dBu (A)
Inputs 3/4
(A/D-D/A toOutput*)
Input Impedance 44 kOhm, balanced
Full-Scale Input Level +12 dBu
Gain -1 dB
Dynamic Range 98.5 dB (A)
THD+N (Full-Scale Level) 0.013 %
Frequency Response (96 kHz), -1 dB 12 Hz - 43 kHz
Line Outputs (D/A)
Full Scale Output Level @ Max. Volume +11 dBu
Dynamic Range @ Max. Volume 102 dB (A)
THD+N 1/2: 0.01%, 3/4: 0.02%
Frequency Response (96 kHz), -1 dB 10 Hz - 45 kHz
Headphone Output
Maximum Output Level (High Impedance) +12 dBu, 3.0 Vrms
Maximum Output Power 20 mW @ 100 Ohms, 11 mW @ 33 Ohms
Dynamic Range 102 dB (A)
THD+N @ Max Level, 100 Ohms 0.014%
Frequency Response (96 kHz), -1 dB 9 Hz - 45 kHz
Digital I/O 2 channels (5/6), SPDIF in/out, coaxial
