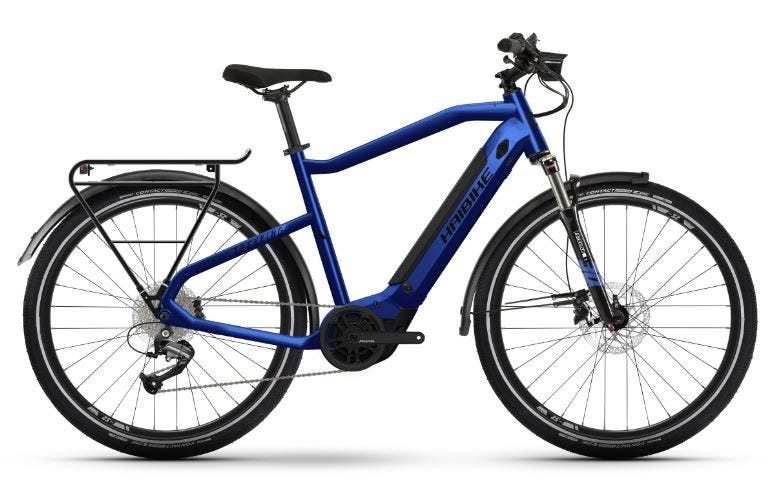

Haibike Trekking 4 (medium, large)

Elektrisk hybridsykkel for tur og jobbsykling. Kraftig og slitesterk krankmotor fra Yamaha. Stort 500Wh integrert batteri gir god rekkevidde. Sittestilling for både komfort og effektivt tråkk. 27,5" hjul med ekstra volum for veigrep og komfort.

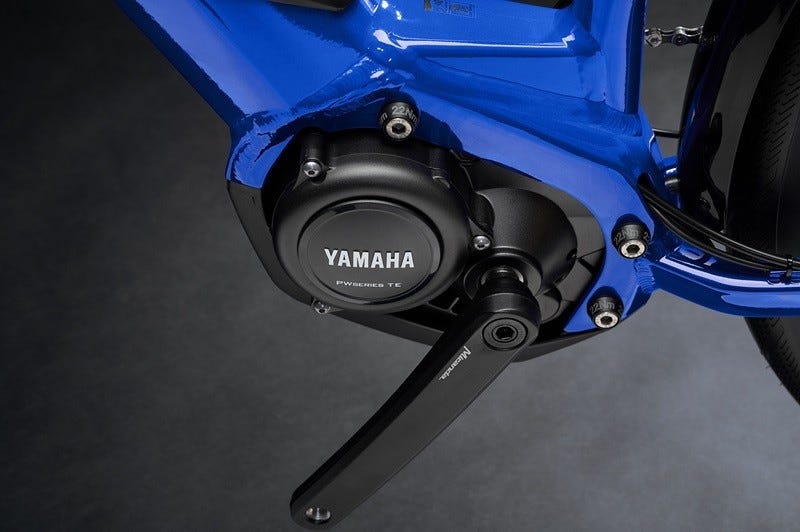

Drive Unit
Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h

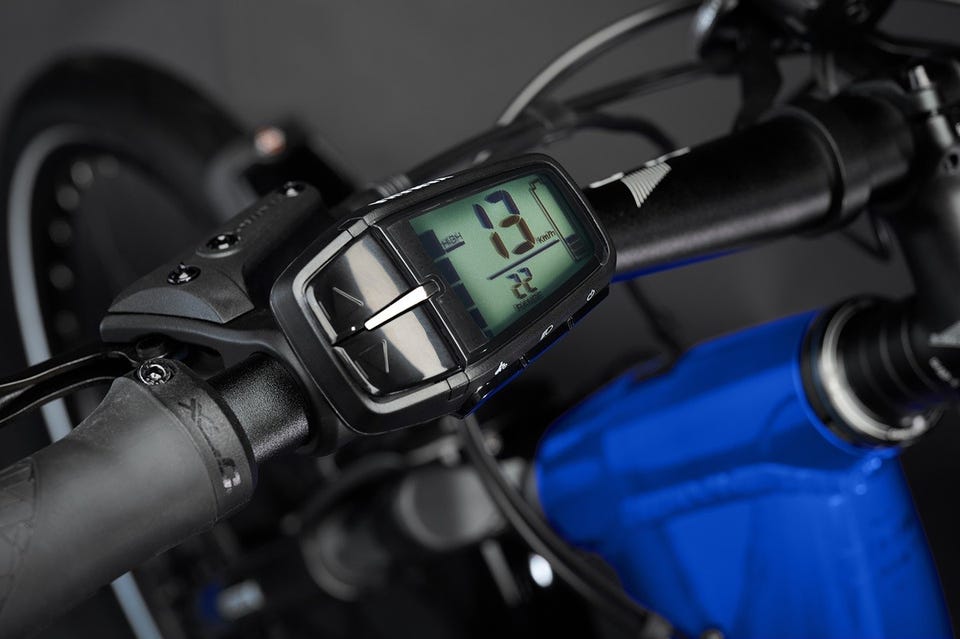

Display
Yamaha, Side Switch, 1.7" LCD, 7 functions
Battery
Yamaha, InTube, 500 Wh
Frame Family
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Fork SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Crank Arm
Haibike, Forged, Aluminium
Brake (Front)
Alhonga, HT474, Hydraulic disc brakes
Brake (Rear)
Alhonga, HT474, Hydraulic disc brakes
Tube
Dunlop valve
Rim
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Clamping Ring
quick release, Quick release, 34.9 mm
Rear Derailleur
Shimano, Altus M2000
Shift Lever
Shimano, Alivio M3100, Trigger switch
Bottom Bracket
integrated in the motor
Sprocket
Shimano, HG200, 11 - 36 teeth
Chain
KMC, e9S
Chainring
Steel, 38 teeth
Brake Lever
Alhonga, HT474, Aluminium
Brake Disc (Front)
Alhonga, DXR1806, 180 mm
Brake Disc (Rear)
Alhonga, DXR1806, 180 mm
Tyre Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
Front Wheel Hub Haibike, TheHub ++, 6-bolt standard
Rear Wheel Hub Haibike, TheHub ++, 6-bolt standard
