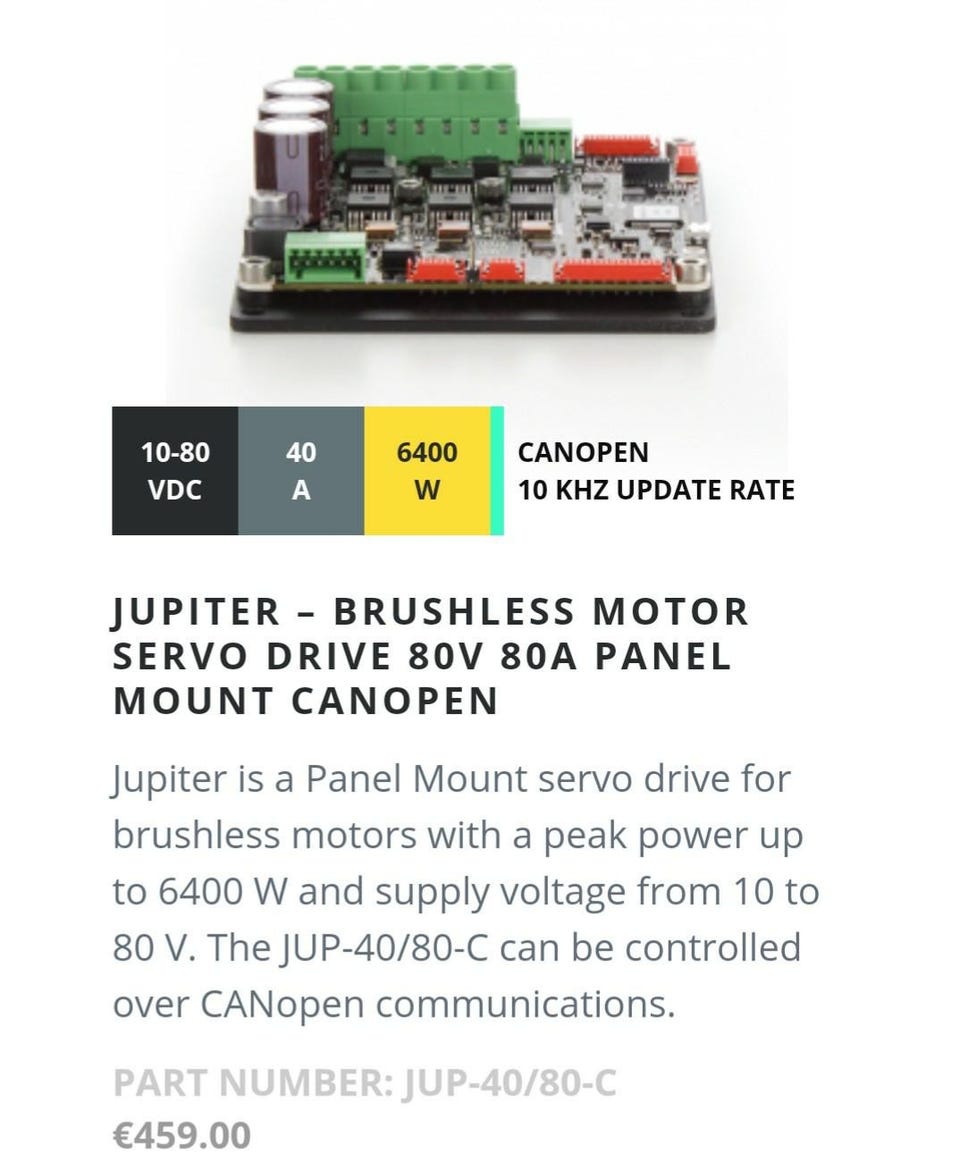

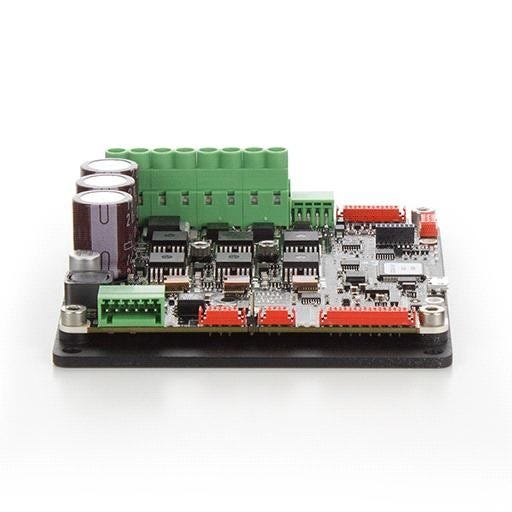

Ingenia Jupiter 40/80 6400W CNC / servo motor driver / closed-loop ESC

Servodrivere med meget høy strømkapasitet.

Hastighet/posisjonskontroll med enkoder.

Profesjonellt alternativ til VESC ESC.

F.eks:

CNC, elektrisk gocart, elmotorsykkel, efoil, elbåt scooter, skateboard, sparkesykkel ol.

80V.

40A kontinuerlig, 80A peak (3sek).

6400W.

Støtter de fleste former for closed-loop feedback.

Kan enkelt styres med arduino.

Har to drivere til salgs.

Kr 3500 pr stk.

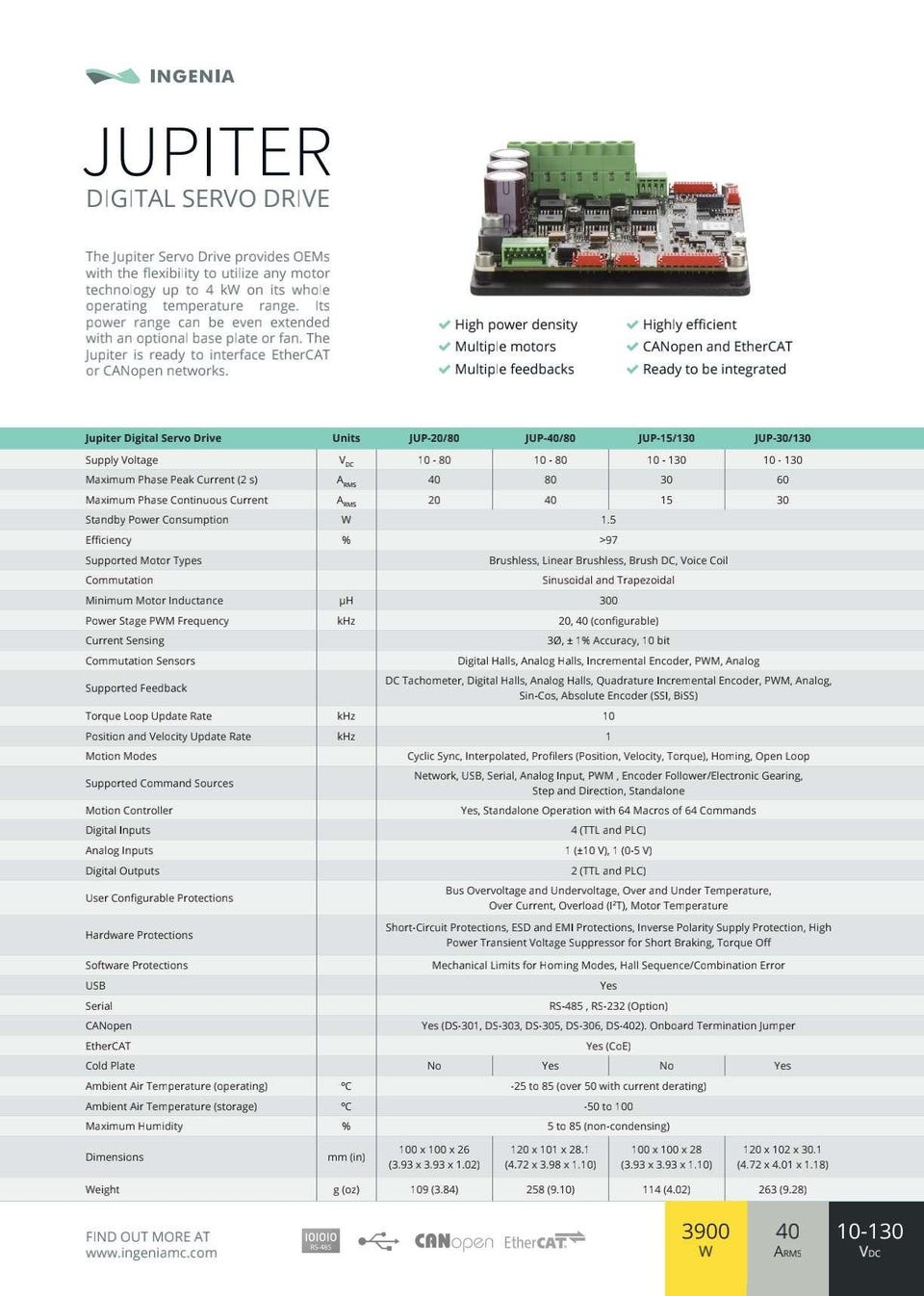

Beskrivelse fra Ingenia :

Jupiter is a high performance closed loop servo drive controller suitable for DC brushed, voice coils and brushless motors.

Its incredibly compact design includes multiple communication ports, enabling thus a wide choice of interfacing methods. Its extended voltage operating range allows its use in several applications, and the small footprint and the needless of an external heatsink allow the controller to be a valid OEM for critical-size applications.

The Jupiter Digital Servo Drive has been designed with efficiency in mind. It incorporates cutting-edge MOSFET technology as well as optimized control algorithms to provide the perfect trade-off between EMIs and efficiency.

Jupiter Servo Drive is provided with several general purpose inputs and outputs designed for 5V TTL logic but tolerant up to 24V and fully rugged. By using these inputs and outputs it is possible to implement alarm signals, connect digital sensors, activate external devices (LEDs, actuators, solenoids, etc.). Some of the digital and analog inputs can also be used as command / target sources.

Part Number

JUP-40/80-C

Continuous Current

A

40

Peak Current

A

80

Single Supply

Power: 10

-80 Vdc

| Logic: 10

-30 Vdc

Efficiency

%

97

PWM Switching Frequency

kHz

20 kHz, 40 kHz

Supported Motor Types

DC Brushed, Rotary Brushless, Linear Brushless, Voice Coil

Supported Feedbacks

Digital Halls, Analog Halls, Digital Incremental Encoder, SinCos Incremental Encoder, SSI, Analog Input, PWM Encoder, DC Tachometer

IO

2x

5 V

Single Ended

Digital

Input

2x

5 V

Differential

Digital

Input

1x

-10..10 V

Differential

Analog

Input

12 bits

1x

0..5 V

Single Ended

Analog

Input

12 bits

2x

5 V

Single Ended

Digital

Output

Communications

CANopen

Supported Motion Modes

Profile Position, Profile Speed, Profile Torque, Cyclic Sync Position, Cyclic Sync Velocity, Cyclic Sync Torque, Homing, Open Loop Vector, Open Loop Scalar

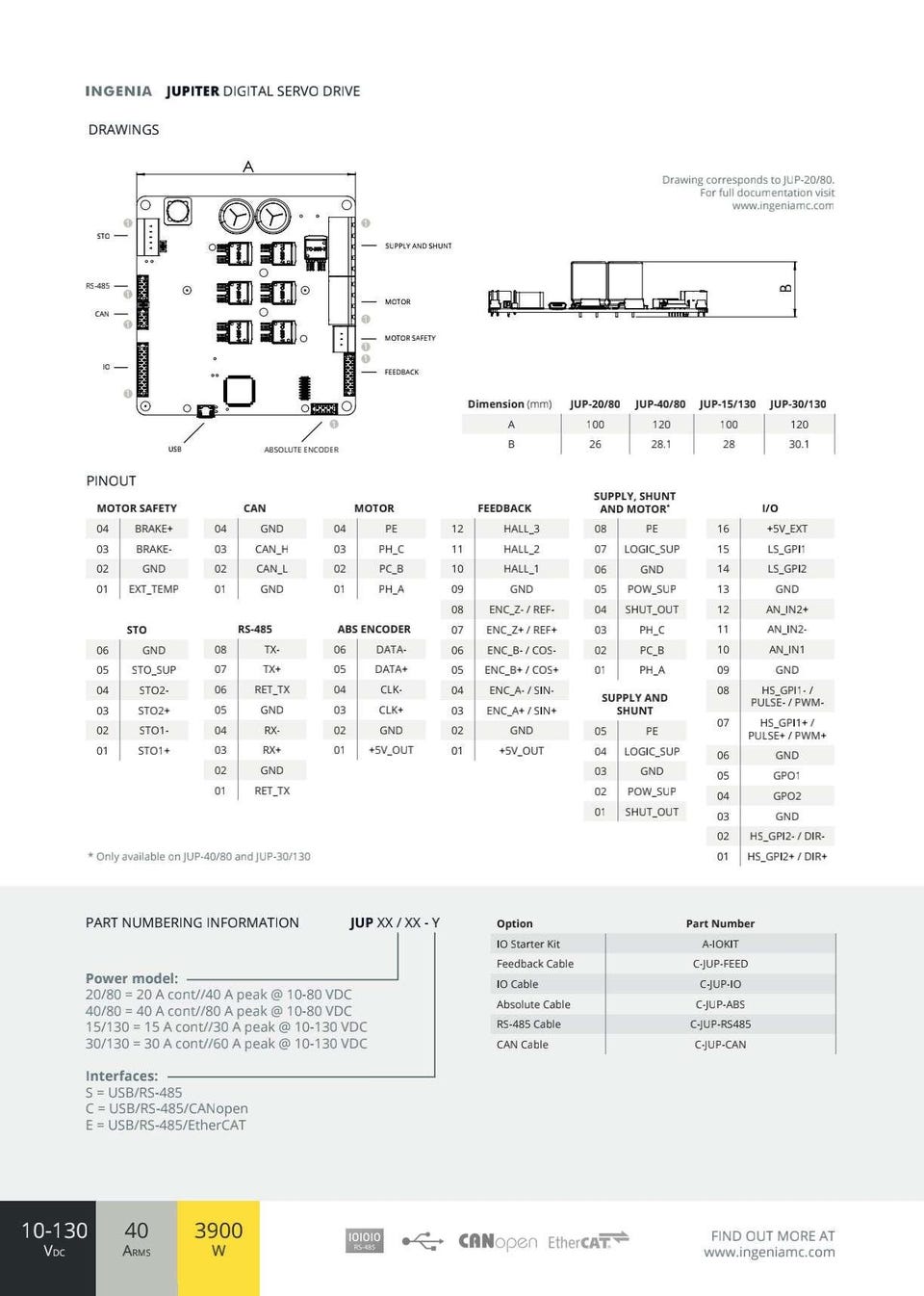

Dimensions

120

x 101 x

28.1
