Kemo dobbellader ladeveksler til to batterier 6 - 24 V/DC

Ny / har aldri brukt denne selv.

Ved forhåndsbetaling kan den sendes med postnord for 69 eller posten 73.

Kan også hentes i Oslo.

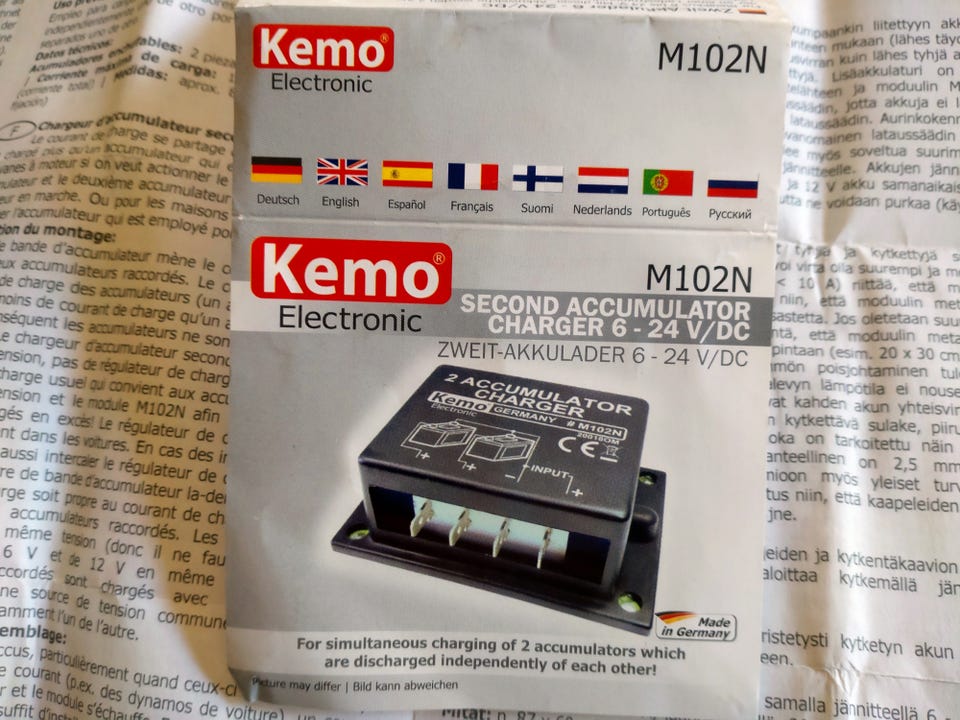

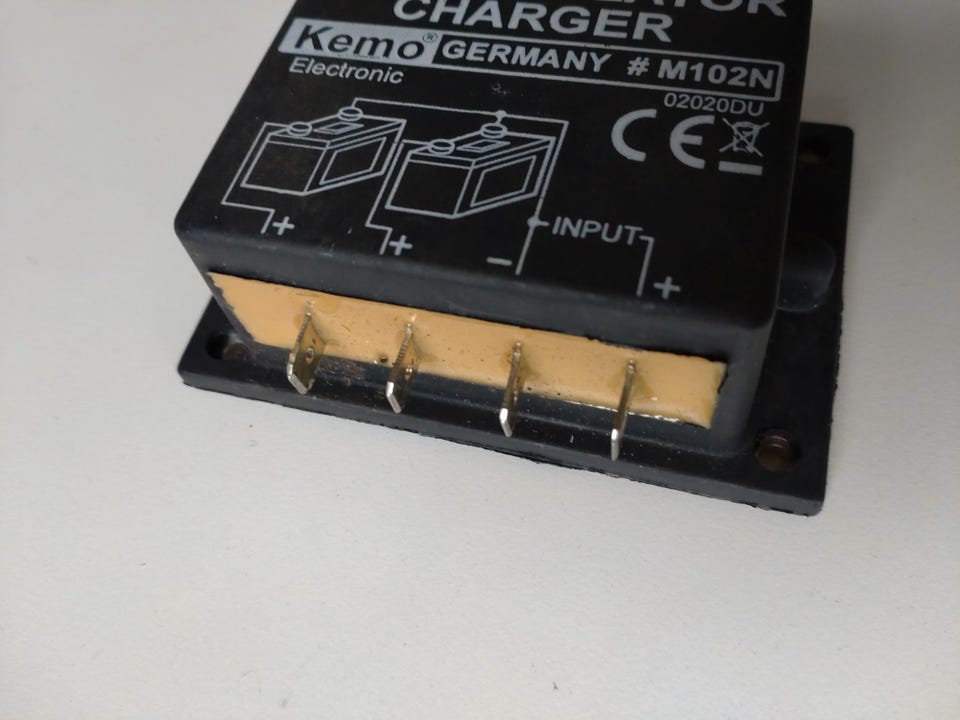

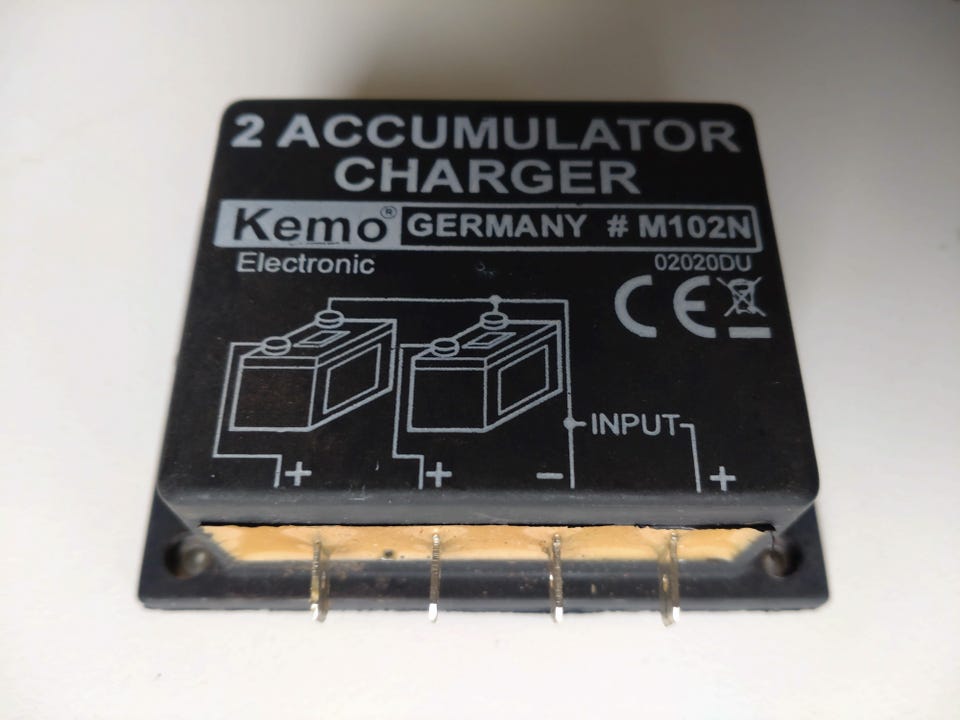

M102N - Second battery charger 6 - 24 V/DC

Tilsvarende type her:

https://www.kemo-electronic.de/en/Animal-Repeller/Car/Modules/M102A-Second-battery-charger-6-24-V-DC.php

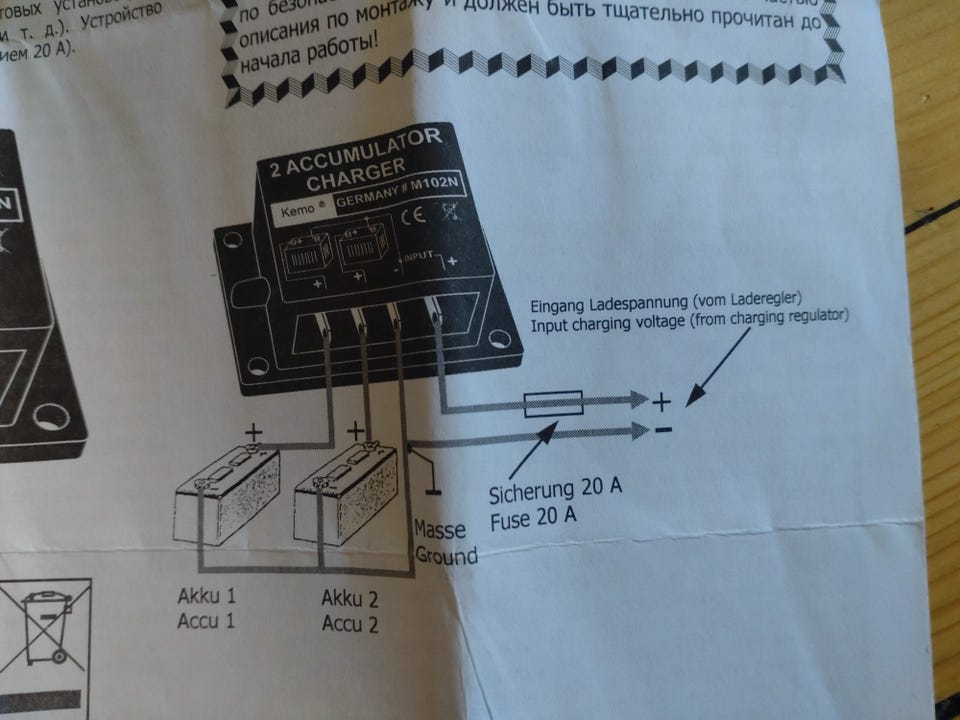

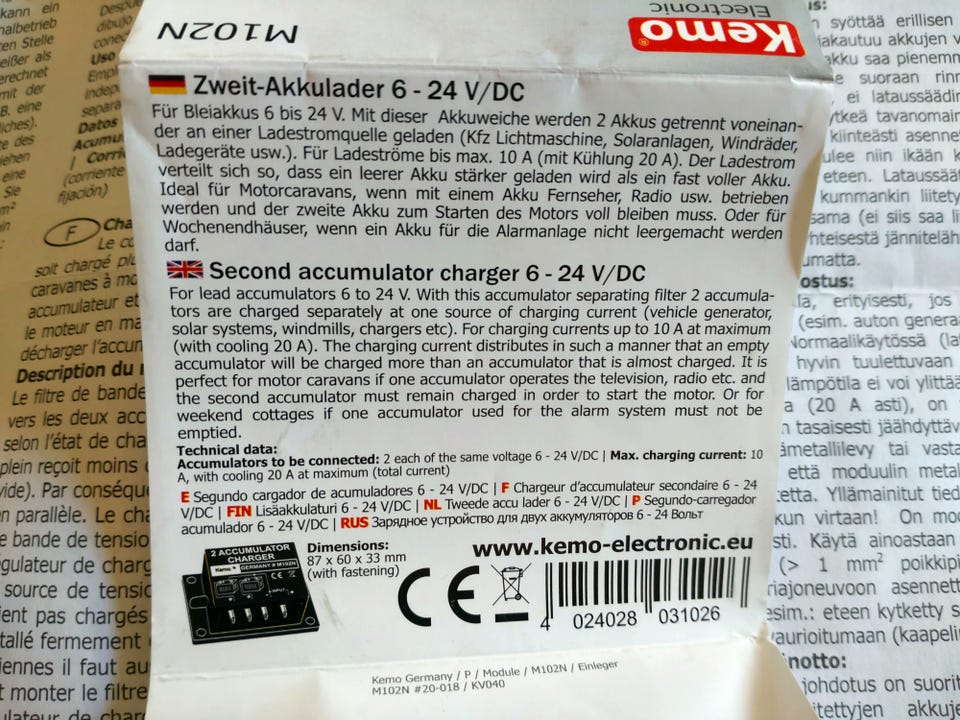

KEMO Second Battery Charger 6-24V/DC M102N for lead based batteries 6 to 24 V. With this battery separating filter 2 batteries are charged separately at one source of charging current (vehicle generator, solar systems, windmills, chargers etc). For charging currents up to 10A (20A with cooling ). The charging current distributes from the M102N in such a manner that an empty battery will be charged more than an battery that is almost charged.

Perfect for motor caravans if one battery operates the television, radio etc. and the second battery must remain charged in order to start the motor. Also, ideal for weekend cottages if one battery which is used by the alarm system must not be emptied.

Technical Data

Operating voltage: 6 – 24 V/DC

Batteries to be connected: 2 each of the same voltage 6 – 24 V/DC

Max. charging current: 10 A (with cooling max. 20 A (total current)

Dimensions: ca. 87 x 60 x 33 mm (with mounting bottom)

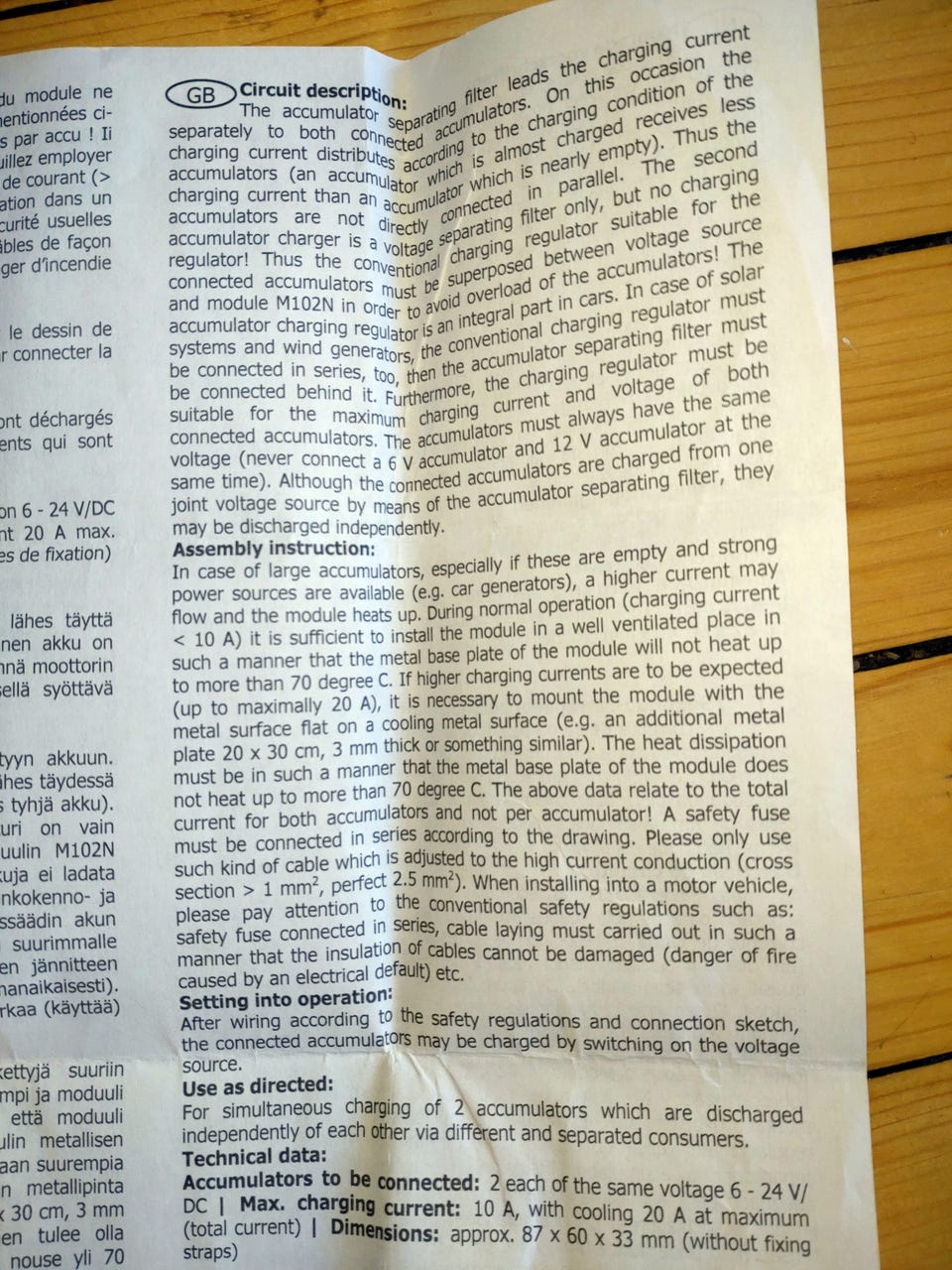

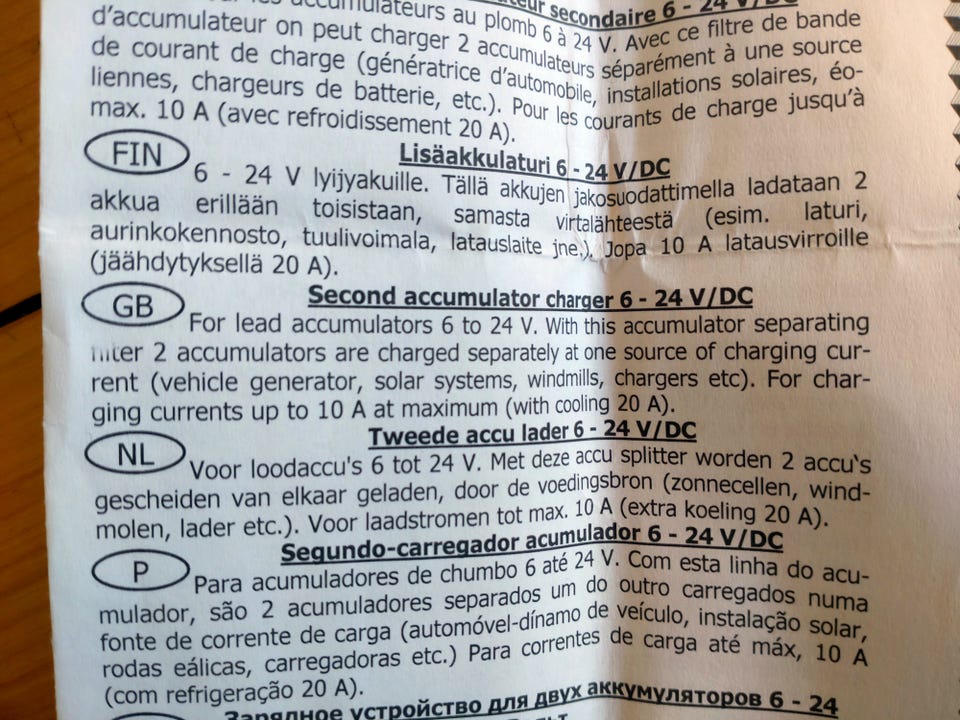

For lead accumulators 6 to 24 V. With this accumulator separating filter 2 accumulators are charged separately at one source of charging current (vehicle generator, solar systems, windmills, chargers etc). For charging currents up to 10 A at maximum (with cooling 20 A). The charging current distributes in such a manner that an empty battery will be charged more than an battery that is almost charged. It is perfect for motor caravans if one battery operates the television, radio etc. and the second battery must remain charged in order to start the motor. Or for weekend cottages if one battery used for the alarm system must not be emptied. A compensating current of approx. 0.005 A may flow between both accumulators (during normal operation at 12 V). This serves the purpose to enable a solar regulator, which is possibly connected in series the possibly necessary voltage control.
