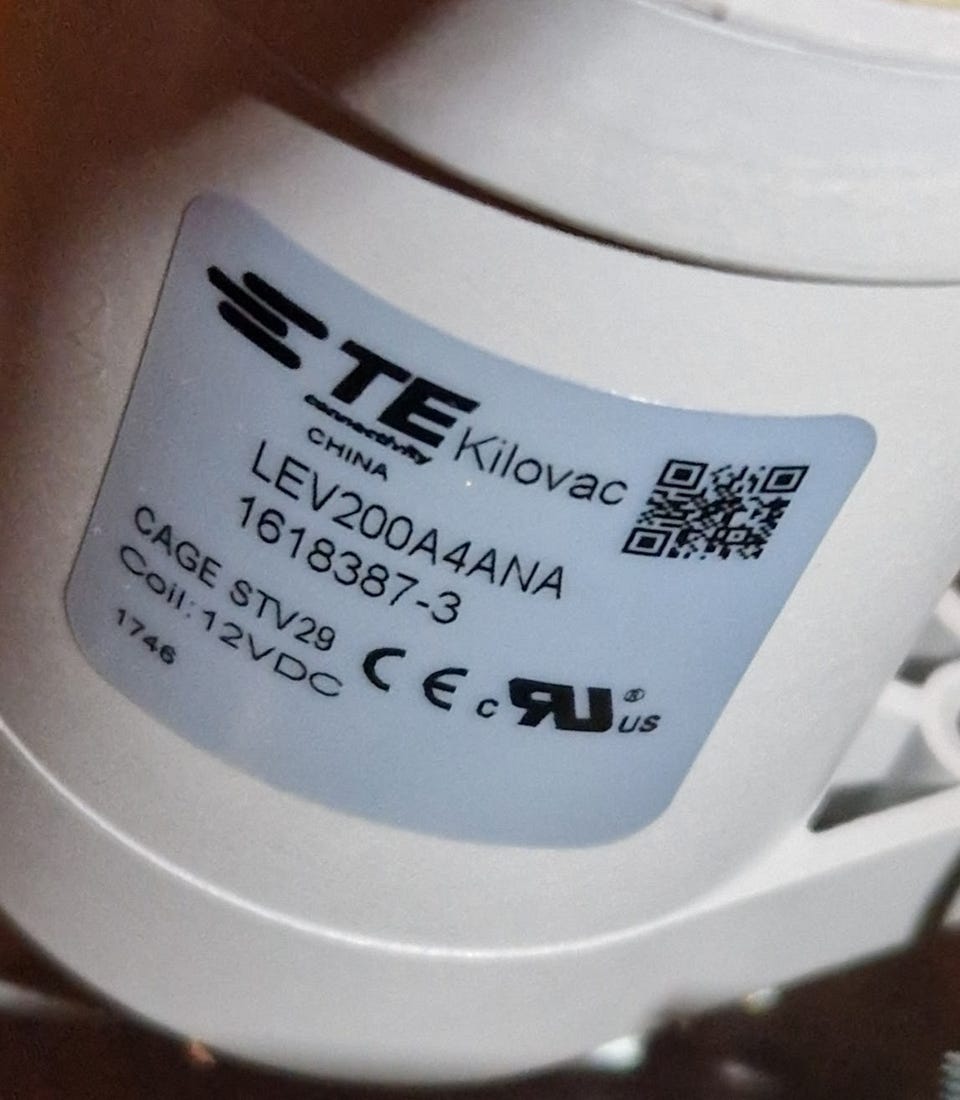

Kontaktor TE Kilovac LEV200A4ANA. 500 A, 900 VDC, 1-pol, 12 V

Brukt. Funker som den skal.

Nypris 1200kr på f.eks. Farnell.com

Les mer på:

https://no.farnell.com/kilovac-te-connectivity/lev200a4ana/relay-power-spno-12v/dp/2103575

Datablad:

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Catalog+Section%7F5-1773450-5_sec7_LEV200%7F0313%7Fpdf%7FEnglish%7FENG_CS_5-1773450-5_sec7_LEV200_0313_5-1773450-5_Sec7_LEV200.pdf%7F1618387-3

Teknisk info:

Configuration Features

Contact Arrangement : 1 Form X SPST-NO-DM

Contact Number of Poles : 1

Auxiliary Switch Contact Arrangement : None

Electrical Characteristics

Contact Current Rating (A): 500

Coil Resistance (Ω): 11

Coil Voltage Rating (VDC): 12

Contact Switching Voltage (Max) (VDC): 900

Body Features

Enclosure Type : Sealed

Termination Features

Main Termination & Connection Type : M8 x 1.25

Coil Termination & Connection Type : Connector

Mechanical Attachment

Product Mount Type : Chassis

Torque (Main) (in-lbs): 80 – 100

Dimensions

Wire Size (AWG): 22

Wire Size (mm²): .34

Coil Wire Length : 390 mm [ 15.3 in ]

Operation/Application

Current Type : DC
