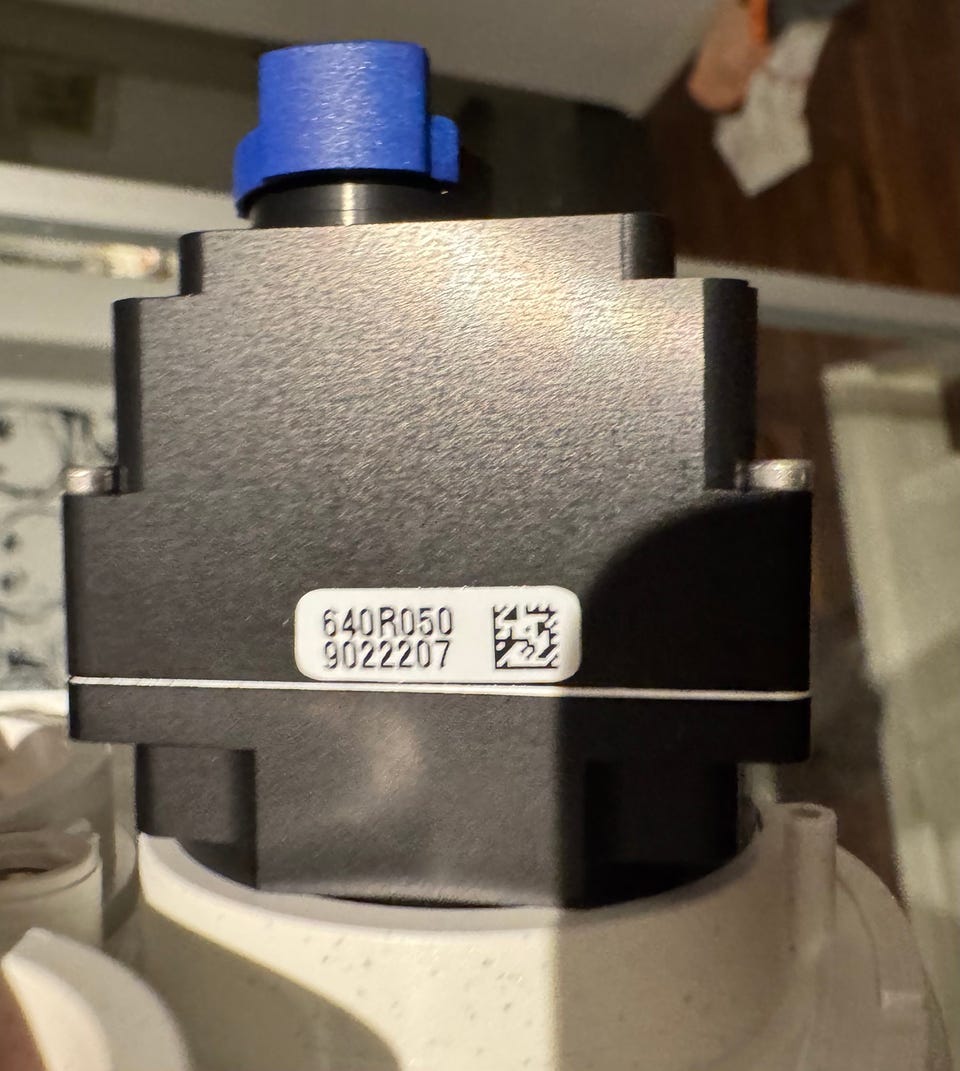

Mobotix Thermal Sensor Module for Mobotix M73 camera platform

High end / Industrial Security and Monitoring equipment Module.

Used for thermal monitoring of environment or specific area´s

alarming when deviations occur possible within vendors software and/or API

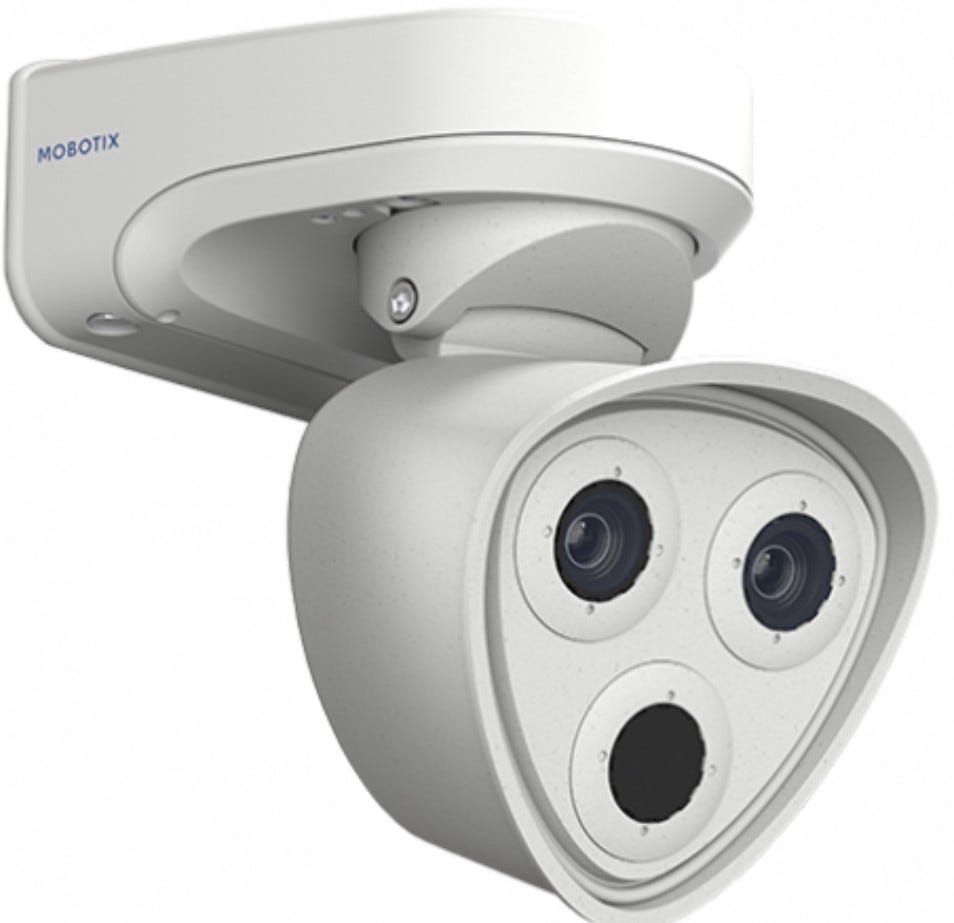

To be installed in a Mobotix M73 Camera (Sold Seperatly)

For salg for 20.000,- NOK eller gi bud! Spesielt tillbud till 20/12

Mx Ordercode Mx-O-M73TB-640R050

Intro Product VGA (640 x 480 Pixel) • with Thermal Radiometry • 90° x 69° • incl. M73 replacement front plate

Housing Color white

Technical Data

Compatibility M73

Max. Image Size 640 x 480

Light Sensitivity NETD typ. 50 mK, < 79 mK, IR range: 7.5 to 13.5 μm

Pris hos fruugo.no cirka 110.000,- NOK

info from vendor below

https://www.mobotix-shop.com/Mx-O-M73TB-640R050_1

https://www.mobotix.com/en/product/Mx-O-M73TB-640R050

https://www.mobotix.com/en/m73-thermal

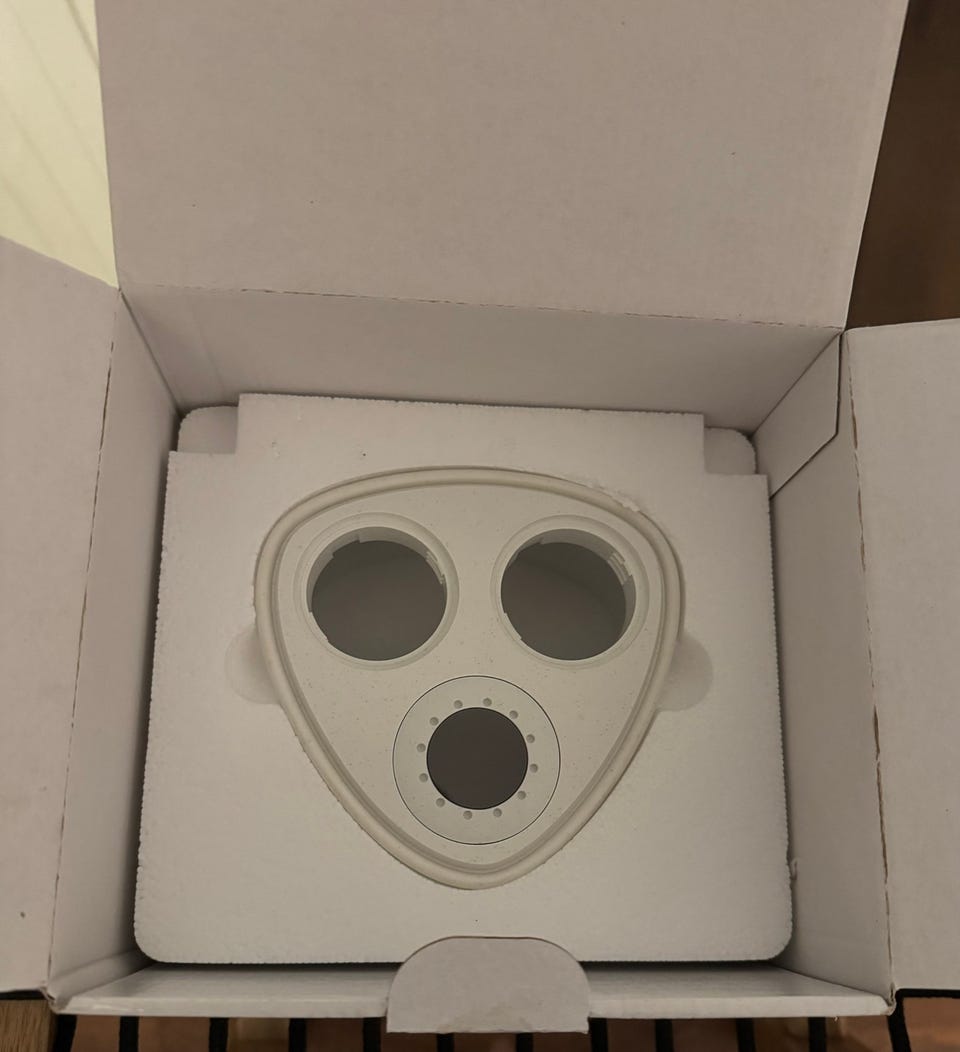

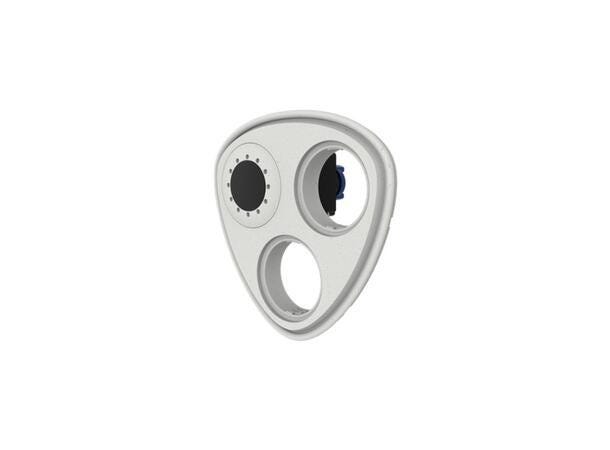

All MOBOTIX 7 M73 cameras that have already been installed can be retrofitted with this thermal sensor. While the thermal module of the M16 thermal camera is already integrated in the camera and cannot be replaced or retrofitted independently, there are thermal sensor modules for the M73 that can be ordered separately and are already permanently connected to an M73 camera front panel. To mount the M73, simply replace the unassembled original front panel of the M73 with the thermal sensor module front panel. A second optical sensor module and a function module can then be operated simultaneously in an M73 together with the thermal sensor module.

The Thermal Radiometry (TR) model variants automatically alarm when individually defined temperature limits in the range of -40 to +550 °C are exceeded or not reached. This is particularly important for the detection of fire or heat sources. Up to 20 different temperature events can be configured simultaneously in so-called TR windows or across the entire sensor image. In this way, critical situations can be analyzed in advance and, for example, the next steps for fire prevention can be initiated. In addition, critical systems such as emergency power generators, wind turbines or radio stations can be maintained and tested remotely at low cost. And with the thermal overlay function, so-called "hotspots" can be precisely identified in the visible image, thus preventing major damage. The thermal systems are also used to detect events of temperature abnormalities in personnel control areas (such as airports, railway stations, etc.), for further health checks.

"With the M73 as a high-end thermal camera, we are now also mapping the thermal camera function in our new, open solution platform MOBOTIX 7, which will be used in numerous industries. This once again completes our range of products and solutions with a future-oriented, cybersecure system solution that will open up completely new application possibilities thanks to the use of the latest technologies and artificial intelligence," emphasizes Thomas Lausten, CEO of MOBOTIX AG.
