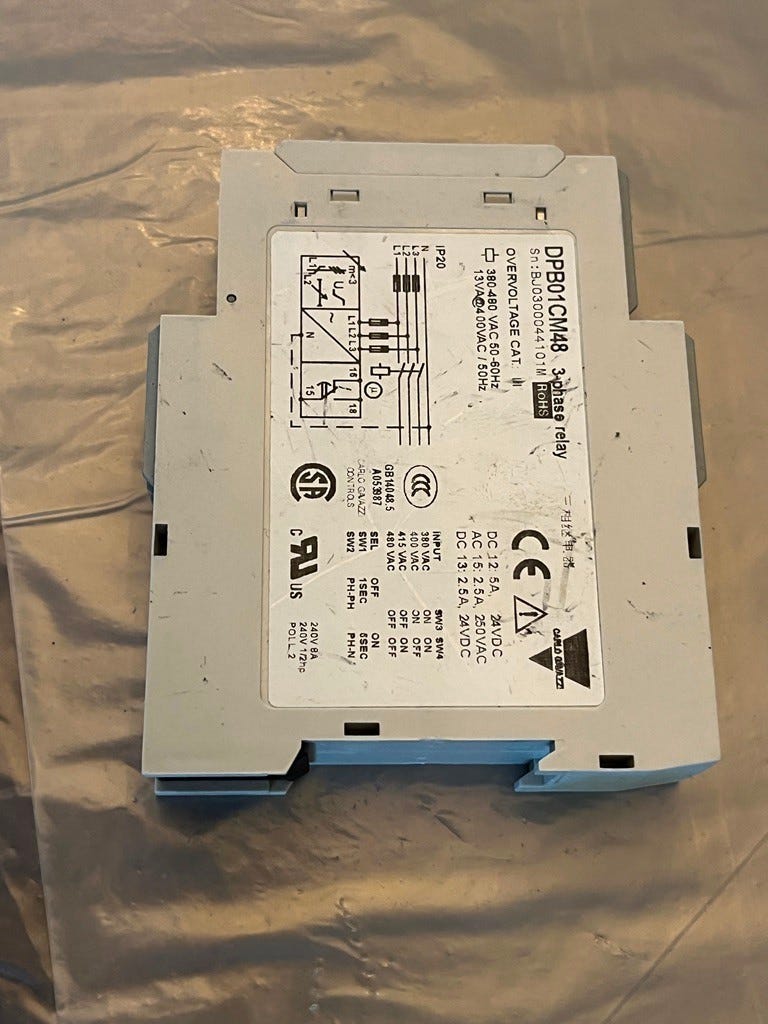

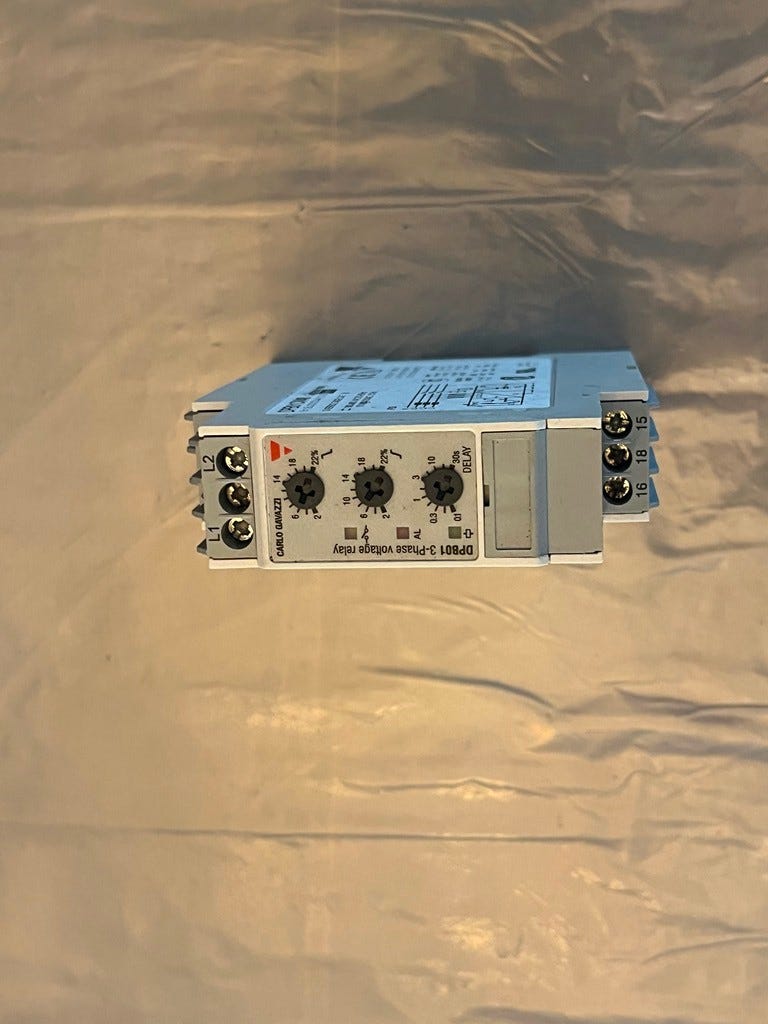

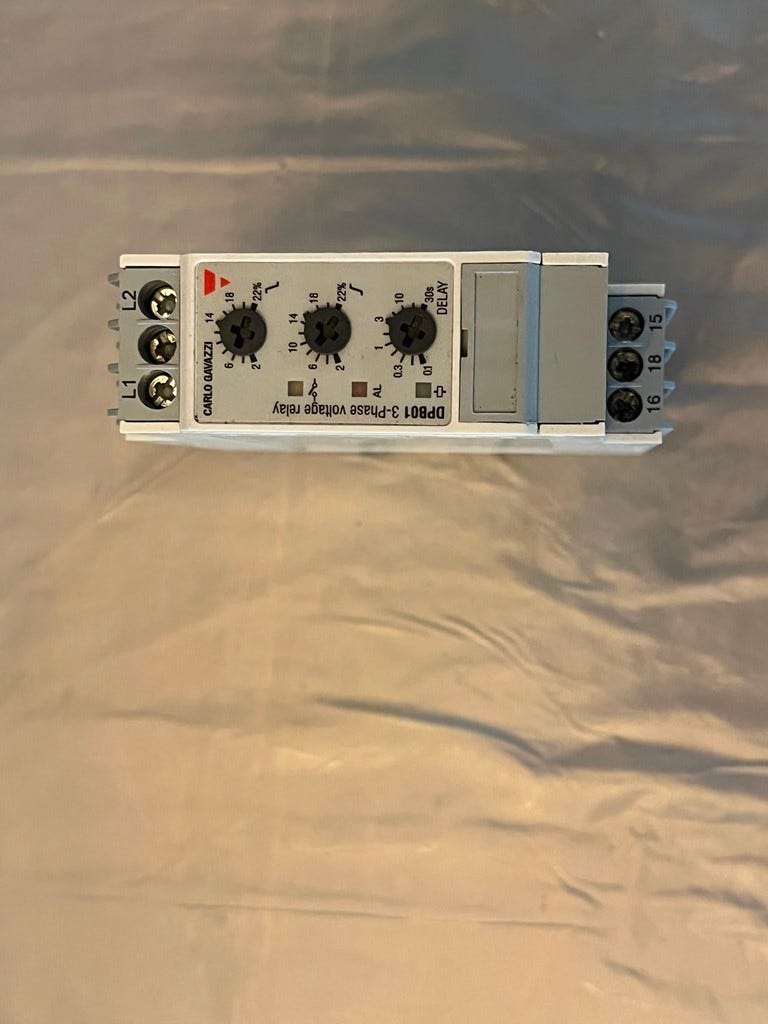

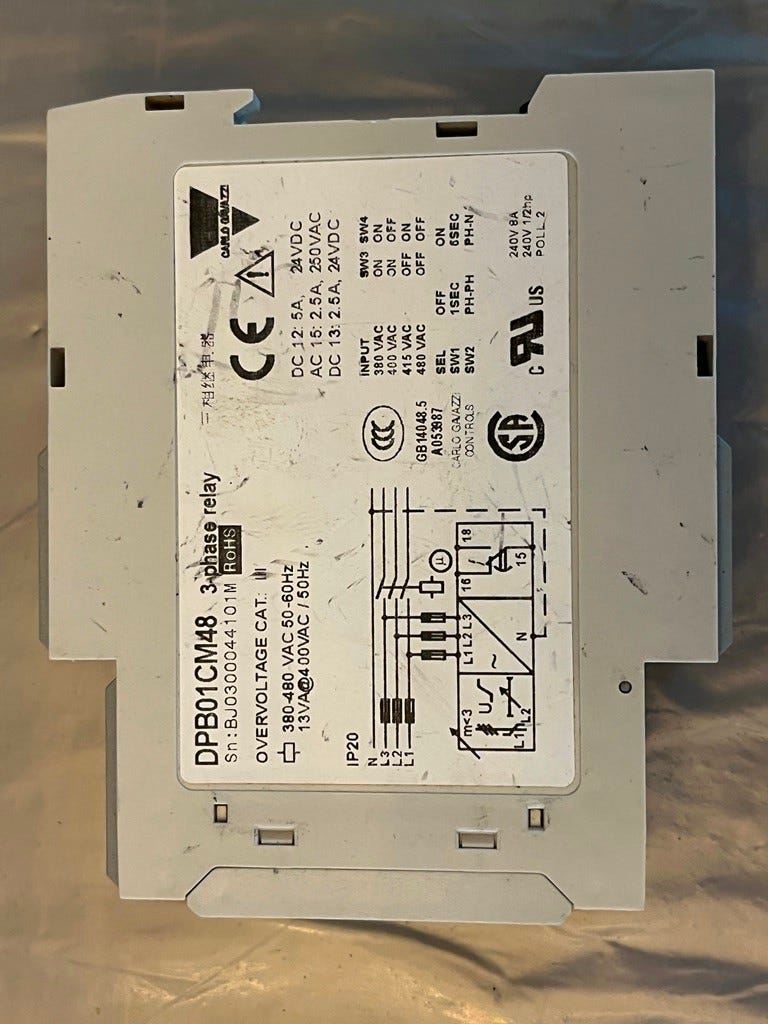

Carlo Gavazzi DPB01CM48 3-phase voltage monitoring relay

Carlo Gavazzi DPB01CM48 3-phase voltage monitoring relay

Uten eske. Aldrig brukt. Noen år gammel.

Over Voltage - Over Current Monitoring Relay, 3+N Phase, DIN Rail

Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay

Selection of measuring range by DIP-switches

Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,

20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC

Adjustable voltage limit on relative scale

Adjustable hysteresis

Programmable latching at set level

Output: 8 A SPDT relay normally de-energized

LED indication for relay and power supply ON

Galvanically separated power supply

Panel and screw termination options available
