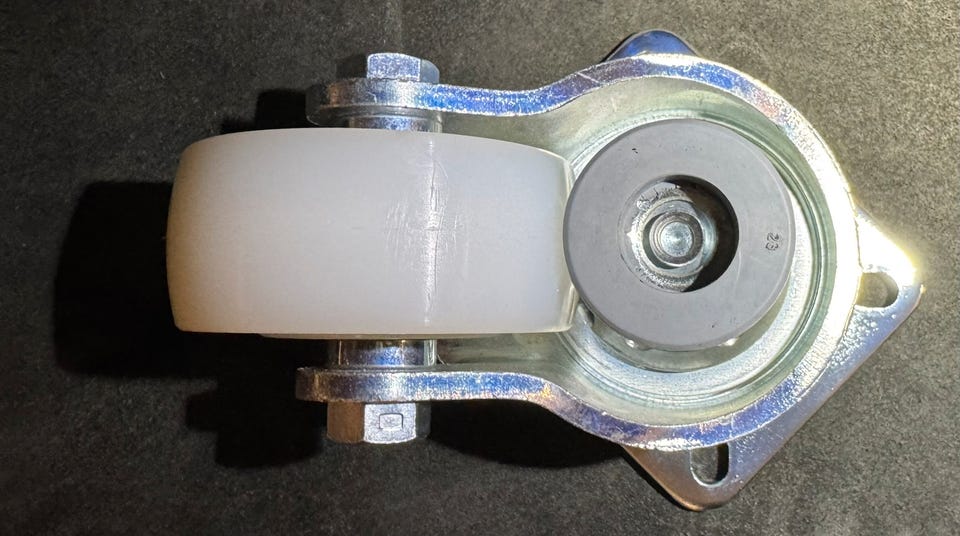

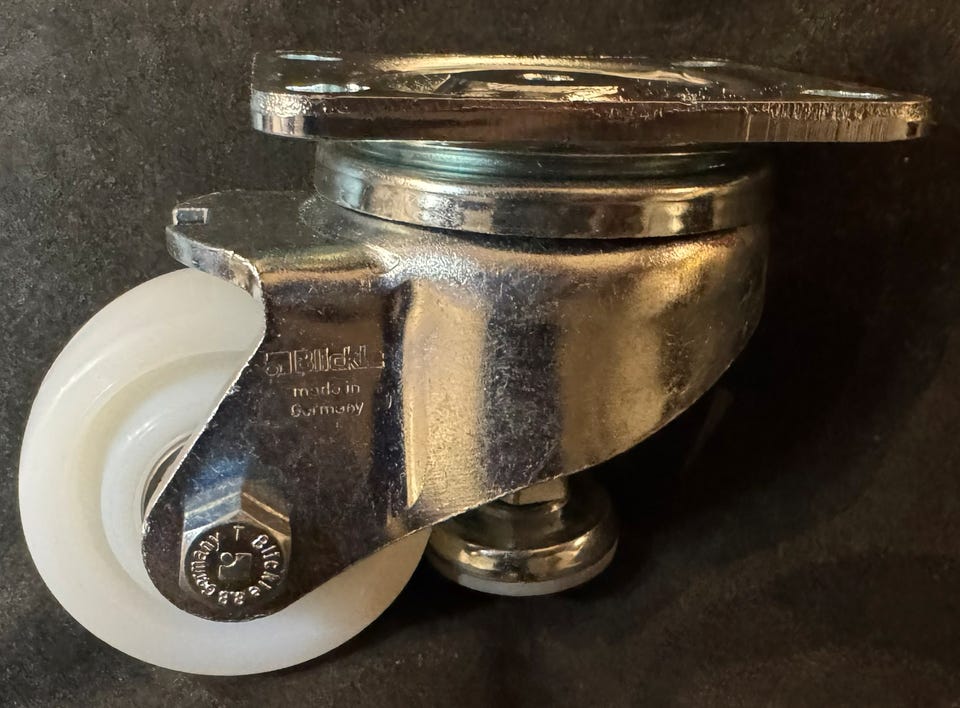

Blickle svingbar nylonhjul 300 kg HRLH-SPO 75K

Normal price: +2000,- NOK ex moms/stuk

7 stuk tilgjennelig

Spør meg for sendemuligheter. Fraktprisene kan endre seg på antal enheter du ønske å kjøpte

Høydejusterbare hjul med integrert bremsefot og platefeste, nylonhjul for tung belastning

Gaffel: HRLH-serien

kraftig presset stål, forzinket, blåpassivert, Cr6-fri

gaffel for tung belastning og platefeste

dobbelt kulelager i svingkransen

skrudd og festet senterbolt, ekstremt stabil

ekstra bestandig mot støt og slag grunnet spesialformede og herdede kulelagerbaner

bremsefot med gummipute

bremsefot justeres med fastnøkkel

Hjul: SPO-serien

høy kvalitets nylon 6, slagfast, hardhet 70 Shore D, ekstremt robust variant for tung belastning, farge naturhvit

Andre egenskaper:

høy kjemisk bestandighet mot mange aggressive stoffer

driftstemperatur: -20 °C til +80 °C, redusert belastningskapasitet over +35 °C

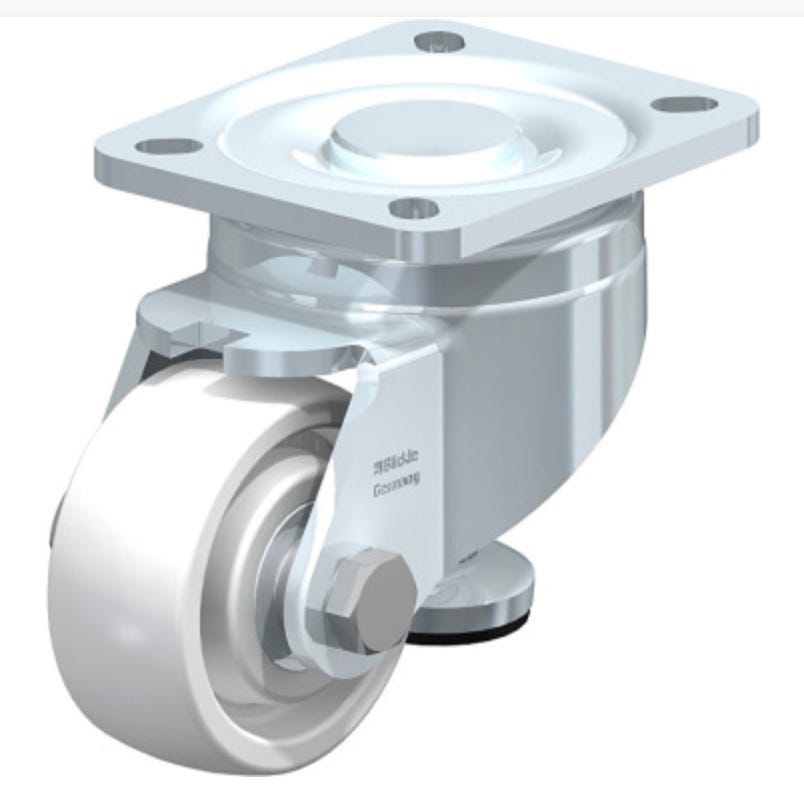

Levelling castor, with integrated truck lock and top plate fitting, nylon heavy duty wheel

Bracket: HRLH series

* strong pressed steel, zinc-plated, blue-passivated, Cr6-free

* heavy fork and top plate

* double ball bearing in the swivel head

* bolted and secured central kingpin, extremely strong

* particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats

* steel truck lock with rubber pad

* height adjustment with wrench

Wheel: SPO series

* high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Other features:

* high chemical resistance to many aggressive substances

* operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C

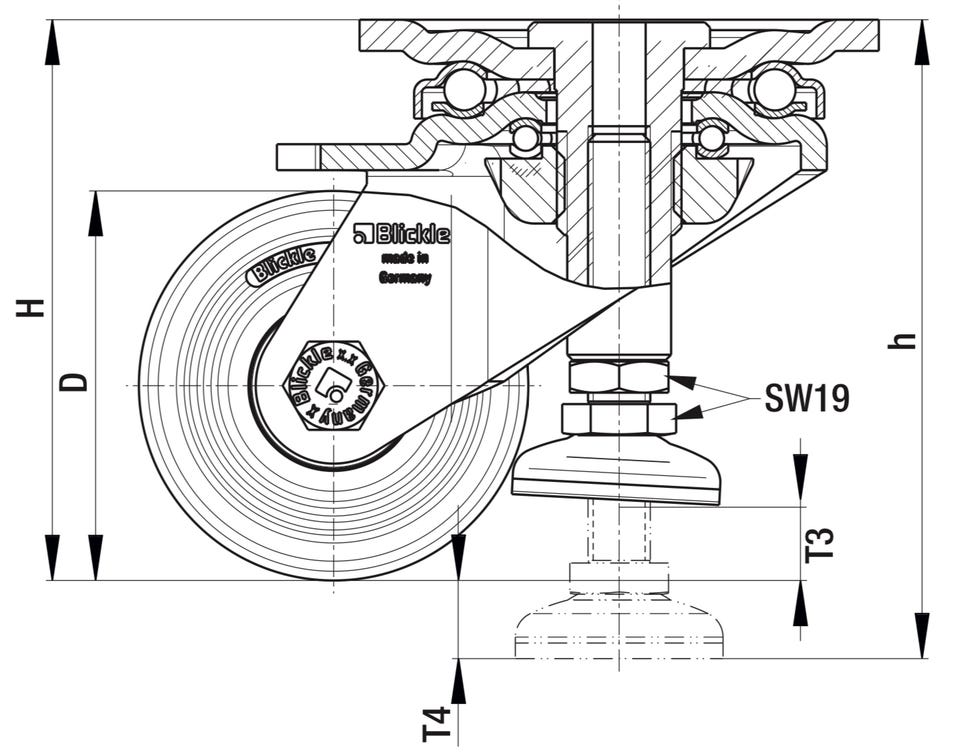

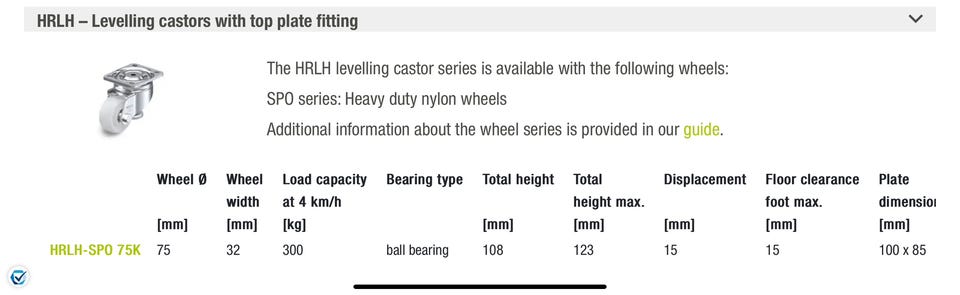

Wheel Ø (D) 75 mm

Wheel width 32 mm

Load capacity at 4 km/h 300 kg

Bearing type ball bearing

Total height (H) 108 mm

Max. total height (h) 123 mm

Max foot floor clearance (T3) 15 mm

Plate size 100 x 85 mm

Bolt hole spacing 80 x 60 mm

Bolt hole Ø 9 mm

Adjustment range (T4) 15 mm

Offset (F) 55 mm

Temperature resistance min -20 °C

Temperature resistance max 80 °C

Tread and tyre hardness 70 Shore D

Unit weight 1.7 kg

Non-marking

Non-staining
