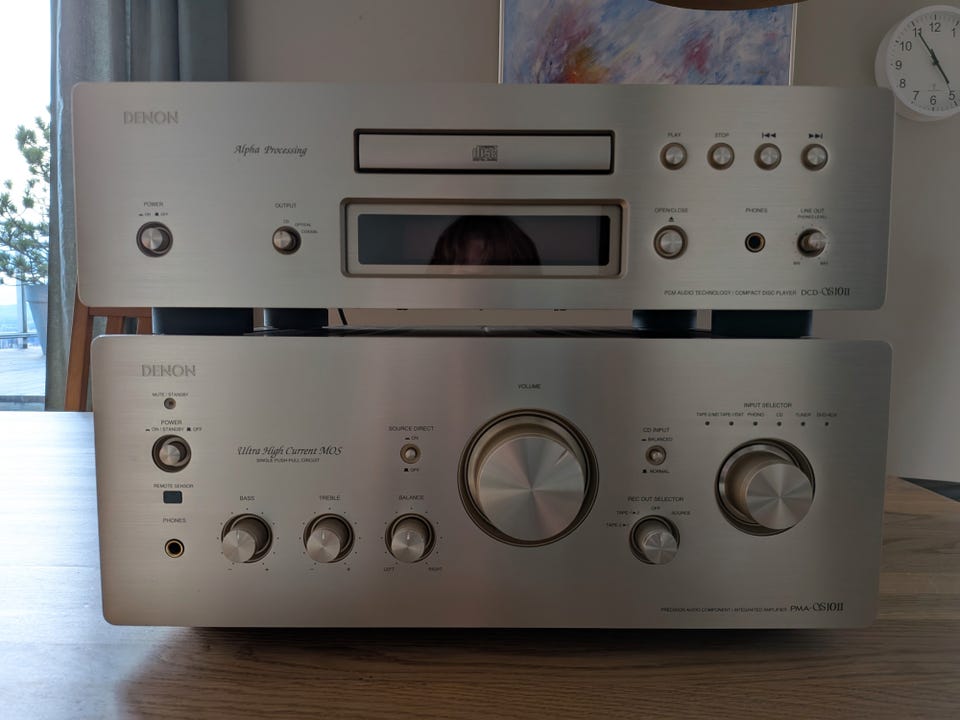

Denon DCD-S10II og Denon PMA-S10II
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt
Merke: Denon
Denon DCD-S10II CD-spiller
D/A conversion part system Real 20-Bit 4 dac Lambda Super Linear Converter
Filter 20-bit 8 x oversampling digital filter + GIC 3rd-order analog filter
Frequency characteristic 2 Hz to 20 kHz
Signal-to-noise ratio 118dB
Dynamic range 100dB
Total harmonic distortion factor 0.0018%(1kHz)
Channel separation 110dB(1kHz)
Digital input Optical output : 1 system
Coaxial output : 1 system
Digital output Optical output : 1 system
Coaxial output : 1 system
Analog output voltage Fixed : 2.0V/10k Ω
Variable : 0.2 ~ 2V/10k Ω
Power 100 VAC, 50Hz/60Hz
Power consumption 20W
External dimensions Width 434x Height 135x Depth 350 mm
Weight 14.0kg
Attachment Wireless Remote Control
Denon PMA-S10II
Rated output 100W + 100W (8 Ω, 20 Hz to 20 kHz, THD 0.07%)
(Both channel drive, CD → SP out) 200W + 200W (4 ω, 1 khz, 0.7% THD)
Total harmonic distortion factor 0.01% (8 Ω at -3dB rated output, 1 kHz)
Output terminal Speaker AORb : 4 Ω ~ 16 Ω
Speaker A + B : 8 Ω ~ 16 Ω
Biwiring : 4 Ω ~ 16 Ω
Input Sensitivity / Impedance Line : 150mV/47k Ω (source direct off)
150mV/15k Ω (Source Direct On)
Phono MM : 2.5mV/47k Ω
Phono MC : 0.2mV/100 Ω
Equalizer amplifier output 150mV
RIAA deviation Phono MM : 20 Hz to 20 kHz ± 0.3 dB
Phono MC : 30 Hz to 20 kHz ± 0.5 dB
Signal-to-noise ratio (A network Line:110dB
Input terminal short-circuited) Phono MM : 91 dB (at 5 mV input)
Phono MC : 78 dB (at 0.5 mV input)
Tone control Bass : ± 8 dB (100 Hz)
Treble : ± 8 dB (10 kHz)
Power outlet Switched : 2 systems, total 120W
Unswitched : 1 line, 240W
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption 300W
External dimensions Width 434x Height 181x Depth 485 mm
Weight 30.0kg
Attachment Wireless Remote Control
