XOR NerdSEQ m/More CV og More Triggers
Til salgs
6 900 kr
Frakt fra 69 kr + Trygg betaling 254 kr
Trygg handel med Fiks ferdig
Etter levering har du 24 timer til å se over varen. Hvis det er noe galt med varen, får du pengene dine tilbake.
Lag en pakke
Kjøp mer fra selgeren og betal bare én fraktkostnad.
Beskrivelse av varen
Tilstand: Som ny - Ikke synlig brukt

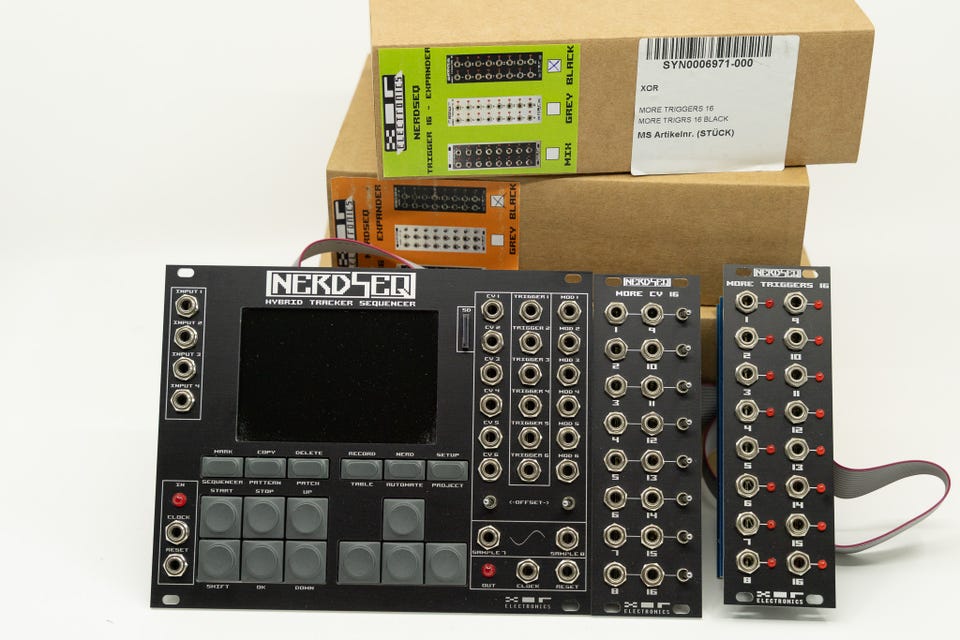

Meget pent brukt XOR NerdSEQ m/More CV og More Triggers selges.
The Nerdseq is a tracker based cv and trigger sequencer module (32HP) for Eurorack systems.
It consists 6 tracks for the CV/Trigger/MOD generation of 18 outputs. 4 User assignable inputs, clock and reset in/outputs and 2 x 2 audio tracks to sequence samples and the integrated oscillators and FM synthesis. As the worlds first hardware tracker it allows straightforward and fast editing together with nice live playing abilities.
Specifications
Power: ~150mA(+12V), ~32mA (-12V), 0mA(5V)
Hardware:
– 32HP, 2.5cm deep
– 3.5″ Colour Graphics IPS display with a resolution of 480 x 320 pixels
– 10 full size and 6 half size buttons
– 28 mini-Jack (mono), 4 CV Inputs (range 0..10 Volt) , 12 CV
outputs (Range -5 Volt /+5 Volt or 0 Volt / +10 Volt), 6 Trigger/Gate Outputs (5 Volt),
2 Sample outputs (-5 Volt/+5 Volt), Clock + Reset In/Output (5 Volt)
– microSD connector accessible on frontpanel
– 2 Expander ports for Midi and up to 4 extensions
Firmware:
– 8 Tracks -> 6 CV/Trigger/Gate, 2×2 sample tracks for 2 audio outputs
– 239 Sequencer rows
– 175 Patterns with each 64 (and less) Steps
– flexible and comfortable arrangement of patterns
– Capable for advanced song arrangements as well as live access to patterns
– Euclidean Rhythm input for Trigger Expander
– 176 Patches
– 32 Tables with 16 (and less) steps
– 8 Automation slots (LFO/Modulations)
– 8 ADSR Envelopes
– 12 Sample slots
– Sample support for RAW 8 bit mono and WAV 8/16 bit, Mono/Stereo
– 4 Oscillators with Sine, Triangle, Sawtooth, Pulse, Noise Waveforms
– 4 Operator FM Synthesis
– Projects as many as the SD card can hold
– Launchpad Integration
– With expansions up to 64 additional outputs sequenceable
– Midi multitrack / multichannel polyphonic sequencing with all midi features and additional modulations
– Flexible Modulation matrix which allows even algorithmic execution
– Totally integrated Video Synthesizer with the Video Expander
…..and much more….
CV16-Expander
Adds 16 more CV outputs for Notes, Pitches, Envelopes and LFO.
More Triggers 16 Expander
Adds 16 more Trigger/Gate outputs to the NerdSEQ
