ThinkPad Hybrid USB-C with USB-A Dock

Overview and Features

The ThinkPad Hybrid USB-C with USB-A Dock is a productivity solution for any USB-C or USB-A laptop, including non-Lenovo laptops from Dell, HP, and Apple, providing power, display, and port expansion in any mixed OS environment (Win 10, Win 11, macOS 13.0, macOS 14.0, ubuntu 22.04, ChromeOS).

Featuring enterprise-class manageability, like PXE boot and MAC address pass-through on select ThinkPad notebooks, the ThinkPad Hybrid USB-C with USB-A Docking Station offers USB port expansion and includes a USB-C to USB-A adapter to provide port replication to non USB-C laptops. This ThinkPad Hybrid Dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging to notebooks.

One dock for all laptops

Enhances the performance of Lenovo USB-C laptops and tablets

through USB-C connection, as well as previous generation and market

notebooks through the USB-C to USB-A adapter.

Rich performance

Provides up to dual UHD 4K display with DisplayPort and HDMI

ports. Up to 10 Gbps data transfer speed on three USB 3.2 Gen 2¹ ports,

and rapid charging for most current ThinkPad family laptops.

Enterprise manageability and simplification

Host of manageability features like PXE boot, Wake-on-LAN from sleep

mode, and MAC address pass-through. Ideal for enterprise customers.

Support Statement: In addition to Lenovo and ThinkPad systems, The ThinkPad Hybrid USB-C with USB-A dock has been tested to work and support display, power delivery (through USB-C), and port expansion on the below non-Lenovo systems:

Windows:

Gen Brand System

2023 HP Elite 840 G10

HP Elite Dragonfly G4

HP Elite 640 G10

HP Pro 440 G10

HP Elite 845 G10

Dell Latitude 9330

Dell Latitude 9430

Dell Latitude 7440

Dell Latitude 5440

Dell XPS 13 Plus 9320 Intel

2022 HP Elite Dragonfly G3

Dell Latitude 7330

macOS:

Gen Brand System

2023 Apple MacBook Pro 13'' 2022 M2

Apple MacBook Pro 13'' M1

Apple MacBook Air 13 2022 M2

2022 Apple MacBook Air M1

ChromeOS:

Gen Brand System

2023 Dell Latitude 5430 Chromebook

Acer Chromebook Spin 714

2022 Acer Chromebook Vero 514

2020 Samsung Galaxy Chromebook

Acer Chromebook Spin 311

Lenovo Chromebook C340-11

2019 HP Chromebook x360 14b

ASUS Chromebook Flip C434

HEADNOTE:

The non-Lenovo notebooks marked as compatible have been internally tested and verified to work and support display, power delivery and port expansion. Any changes to notebook hardware or software, may result in changes to functionality or compatibility. In the event of this impacting you experience , please reach out to Lenovo support at https://pcsupport.lenovo.com/servicerequest.

Also, compatible with Lenovo Docking Station Mounting Kit (4XF0S99497)

Limitation: Dock cannot support display in system Pre-boot state.

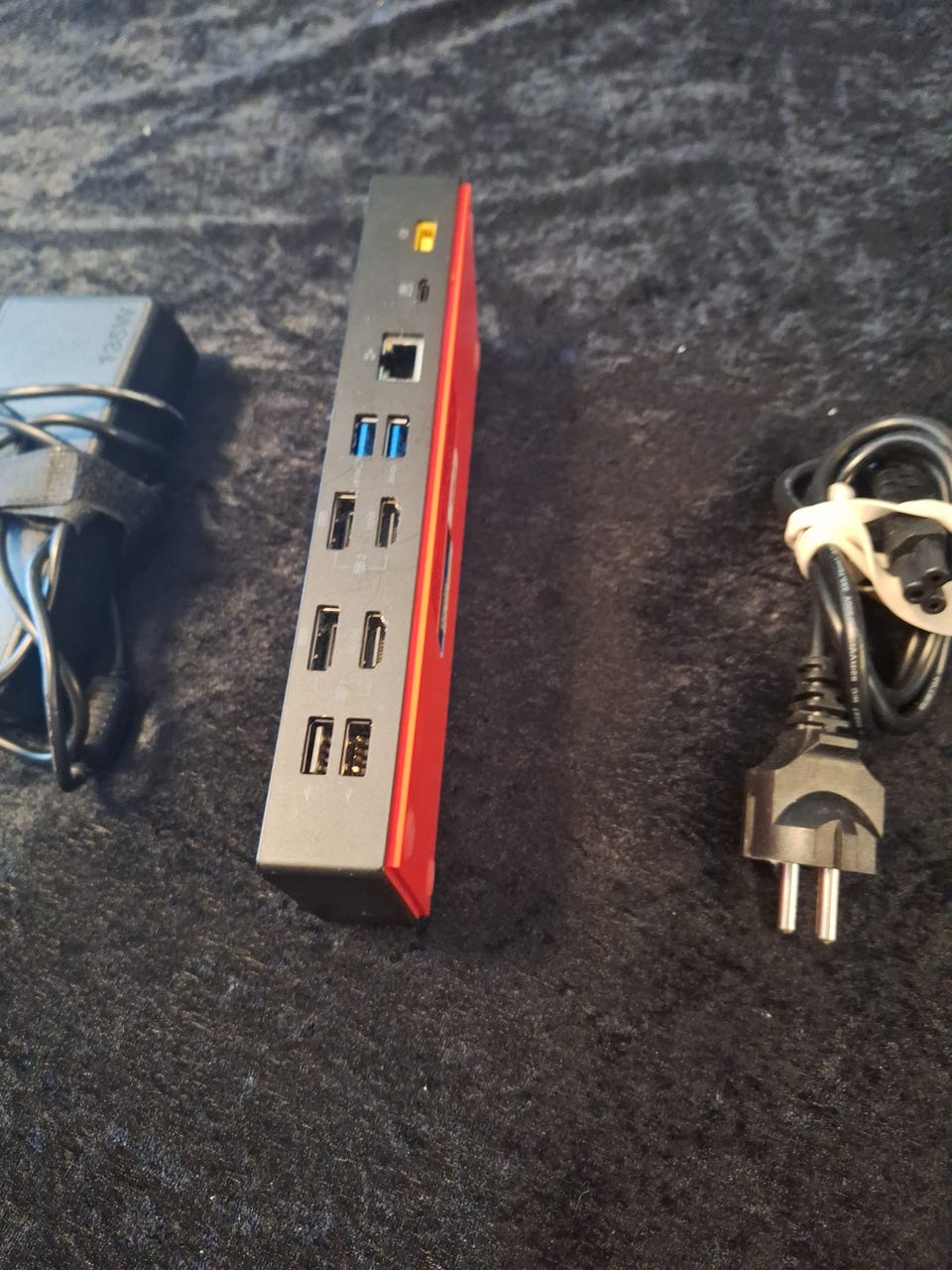

Ports, Connectors, Security

Docking interface: USB-C cable with USB-C to USB-A dongle

Three USB 3.2 gen2 (10Gbps, 1x always-on)

Two USB 2.0

USB-C port (Data, 5V 3A power)

10/1000 Gigabit Ethernet

Two DP1.2 port

Two HDMI2.0 port

Combo Audio jackHDMI™

Up to two UHD displays connection via DisplayPort™/HDMI™ ports

Security lock slot
